BU100-PSMJS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

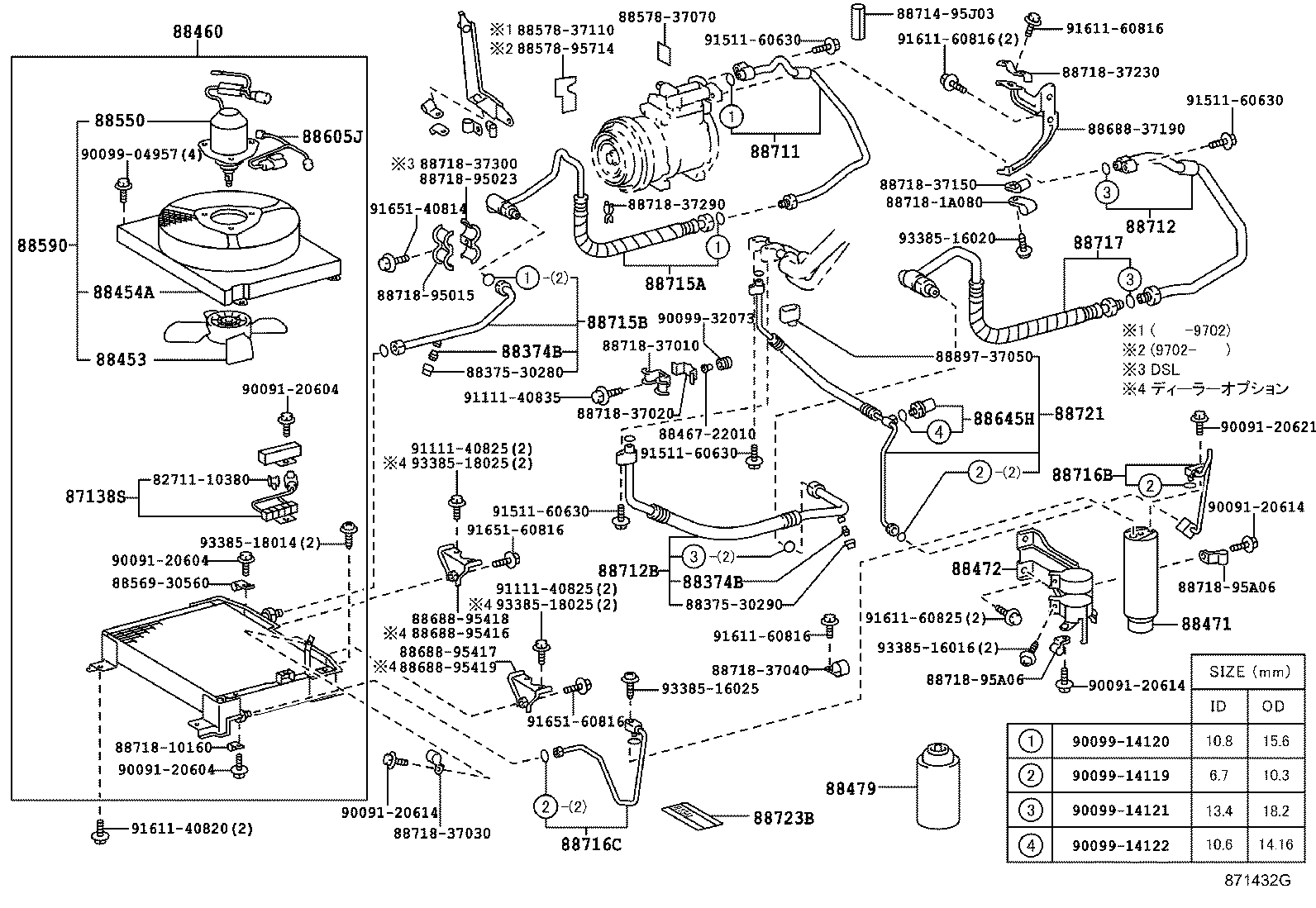

ILLUST NO. 1 OF 2(9505- )BU10#,112,12#,13#,14#

Click highlighted areas on diagram

diagram 8271110380 87138S 88374B 88374B 8837530280 8837530290 88453 88454A 88460 8846722010 88471 88472 88479 88550 8856930560 8857837070 8857837110 8857895714 88590 88605J 88645H 8868837190 8868895416 8868895417 8868895418 8868895419 88711 88712 88712B 8871495J03 88715A 88715B 88716B 88716C 88717 8871810160 887181A080 8871837010 8871837020 8871837030 8871837040 8871837150 8871837230 8871837290 8871837300 8871895015 8871895023 8871895A06 8871895A06 88721 88723B 8889737050 9009120604 9009120604 9009120604 9009120614 9009120614 9009120614 9009120621 9009904957 9009914119 9009914120 9009914121 9009914122 9009932073 9111140825 9111140825 9111140835 9151160630 9151160630 9151160630 9151160630 9161140820 9161160816 9161160816 9161160816 9161160825 9165140814 9165160816 9165160816 9338516016 9338516020 9338516025 9338518014 9338518025 9338518025
Part # Description Qty Price
87138S - RESISTOR, BLOWER
87138-37010

BU100,140;BU162,182..TR..20T..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 2
88460 - CONDENSER ASSY, COOLER
88460-37260

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88460-37260

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010

BU100,140;BU162,182..TR..20T..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-37070

BU100,140;BU162,182..TR..20T..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

250G

 1
90986-02008

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

200G

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-37060

BU182..30T;BU162..03S..CBU;BU182..T3..20T..CBU;BU162,182..(DM5,DM7,T4)..02S;BU107,112,13#,142,147..(DM7,DM8,T2,T3,T4,TW4)..MTM..DSL;BU100,102,105,12#,140,145,172,202,212,222,XZU130,140..DSL,TD

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88648-37040

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37290

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88711-37290

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37460

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88712-37460

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88712B - HOSE, COOLER REFRIGERANT SUCTION
88712-37310

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88712-37310

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-37160

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88715-37161

BU102..T5..CBU;BU100,122,132,14#..DSL..5F;BU102..(DM2,DM3,DM5,T2,T3,T4,TW4)..5F

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88715-37160

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,ｶﾝﾚｲﾁ ｼﾖｳ

 1
88715-37161

BU102..ST;BU122,132,140..5F;BU100..T3..ST..IV3;BU147..(T2,TW4)..IV3;BU102,142..(275T,30T)..DSL..5F;BU100,107..(DM6,T1,TW2,TW4)..IV3;BU102,142..(DM2,DM3,DM5,T2,TW4)..5F;BU100,107,137,142,147..(175T,20T)..CBU..5F

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-37080

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88715-37080

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37140

BU10#,112,12#,13#,14#,162,172,182,RZU100,140,XZU130,140

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-37150

BU182..30T;BU132..T3,T4;BU162..03S..CBU;BU182..T3..20T..CBU;BU162,182..(DM5,DM7,T4)..02S;BU10#,112,12#,137,14#,172,RZU100,140,XZU130,140

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-37080

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88717-37081

BU102..ST;BU122,132,140..5F;BU100..T3..ST..IV3;BU147..(T2,TW4)..IV3;BU102,142..(275T,30T)..DSL..5F;BU100,107..(DM6,T1,TW2,TW4)..IV3;BU102,142..(DM2,DM3,DM5,T2,TW4)..5F;BU100,107,137,142,147..(175T,20T)..CBU..5F

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88717-37080

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ,ｶﾝﾚｲﾁ ｼﾖｳ

 1
88717-37081

BU102..T5..CBU;BU100,122,132,14#..DSL..5F;BU102..(DM2,DM3,DM5,T2,T3,T4,TW4)..5F

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88721 - PIPE, COOLER REFRIGERANT SUCTION, NO.5
88721-37180

BU132..T3,T4;BU10#,112,12#,137,14#,RZU100,XZU130

 1
88721-37180

BU132..T3,T4;BU162..03S..IV3;BU182..T3..20T..IV3;BU10#,112,12#,137,14#,RZU100,140,XZU130,140

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
Common parts
82711-10380
88375-30280
88375-30290
88467-22010
88569-30560
88578-37070
88578-37110
88578-95714
88688-37190
88688-95416
88688-95417
88688-95418
88688-95419
88714-95J03
88718-10160
88718-1A080
88718-37010
88718-37020
88718-37030
88718-37040
88718-37150
88718-37230
88718-37290
88718-37300
88718-95015
88718-95023
88718-95A06
88897-37050
90091-20604
90091-20614
90091-20621
90099-04957
90099-14119
90099-14120
90099-14121
90099-14122
90099-32073
91111-40825
91111-40835
91511-60630
91611-40820
91611-60816
91611-60825
91651-40814
91651-60816
93385-16016
93385-16020
93385-16025
93385-18014
93385-18025
