BU100-PSMJS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - May 1999
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,112,12#,13#,14#,162,172,182,202,212,222,RZU100,140,XZU130,140

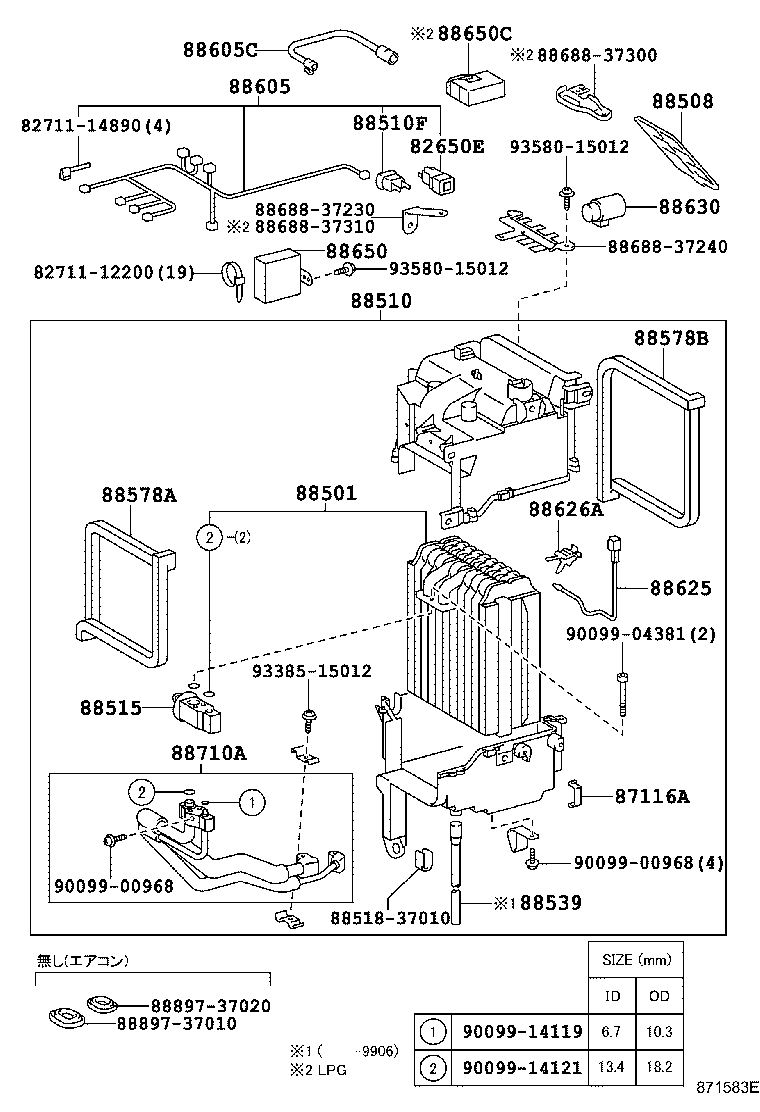

Click highlighted areas on diagram

diagram 82650E 8271112200 8271114890 87116A 88501 88508 88510 88510F 88515 8851837010 88539 88578A 88578B 88605 88605C 88625 88626A 88630 88650 88650C 8868837230 8868837240 8868837300 8868837310 88710A 8889737010 8889737020 9009900968 9009900968 9009904381 9009914119 9009914121 9338515012 9358015012 9358015012
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 3
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-35021

BU105..T2;BU132..IV3;BU107..T2,T4;BU107..06S..5F;BU132..CBU..5F;BU102..20T..4FC;BU147..T2,T4,TW4;BU102,137..T4..20T..5F;RZU100..DM6,T2,T3,T4,TW1,TW4;BU100,112,12#,140,142,162,202,212,222,297,XZU130..4FC,5F;BU102,172,182..(DM2,DM3,DM5,DM6,T2,T3,T5,TW1,TW4)..DSL..5F

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-37020

BU132..T3,T4;BU10#,112,12#,137,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
88510 - UNIT ASSY, COOLER
88510-37050

BU102,142..LPGB;BU102,132,142..(T2,T3,T4)..4FC;BU100,105,107,112,120,137,140,145,147,162,172,182,202,212,222,RZU100,140..02S,03S,06S,07S

 1
88510-37050

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26150

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-20470

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-37160

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88605-37160

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88625 - THERMISTOR, COOLER, NO.1
88625-3A020

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88625-3A020

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88626A - HOLDER, THERMISTOR
88626-28010

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
88626-28010

BU172..30T;BU172..05S;BU10#,112,12#,132,14#,162,182,202,212,222,RZU100,XZU130

 1
88630 - RELAY ASSY, COOLER
88630-37060

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 3
88630-37060

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 3
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-37050

BU100,140

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88650-37050

BU140;BU100..CBU;BU100..T3..ST..IV3;BU100..(DM6,T1,TW2,TW4)..IV3

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37190

BU10#,112,120,13#,14#,162,172,182,202,212,222,297,RZU100,140,XZU130,140

 1
88710-37150

BU10#,112,12#,13#,14#,162,172,182,202,212,222,297,RZU100,XZU130

 1
Common parts
82711-12200
82711-14890
88518-37010
88688-37230
88688-37240
88688-37300
88688-37310
88897-37010
88897-37020
90099-00968
90099-04381
90099-14119
90099-14121
93385-15012
93580-15012
