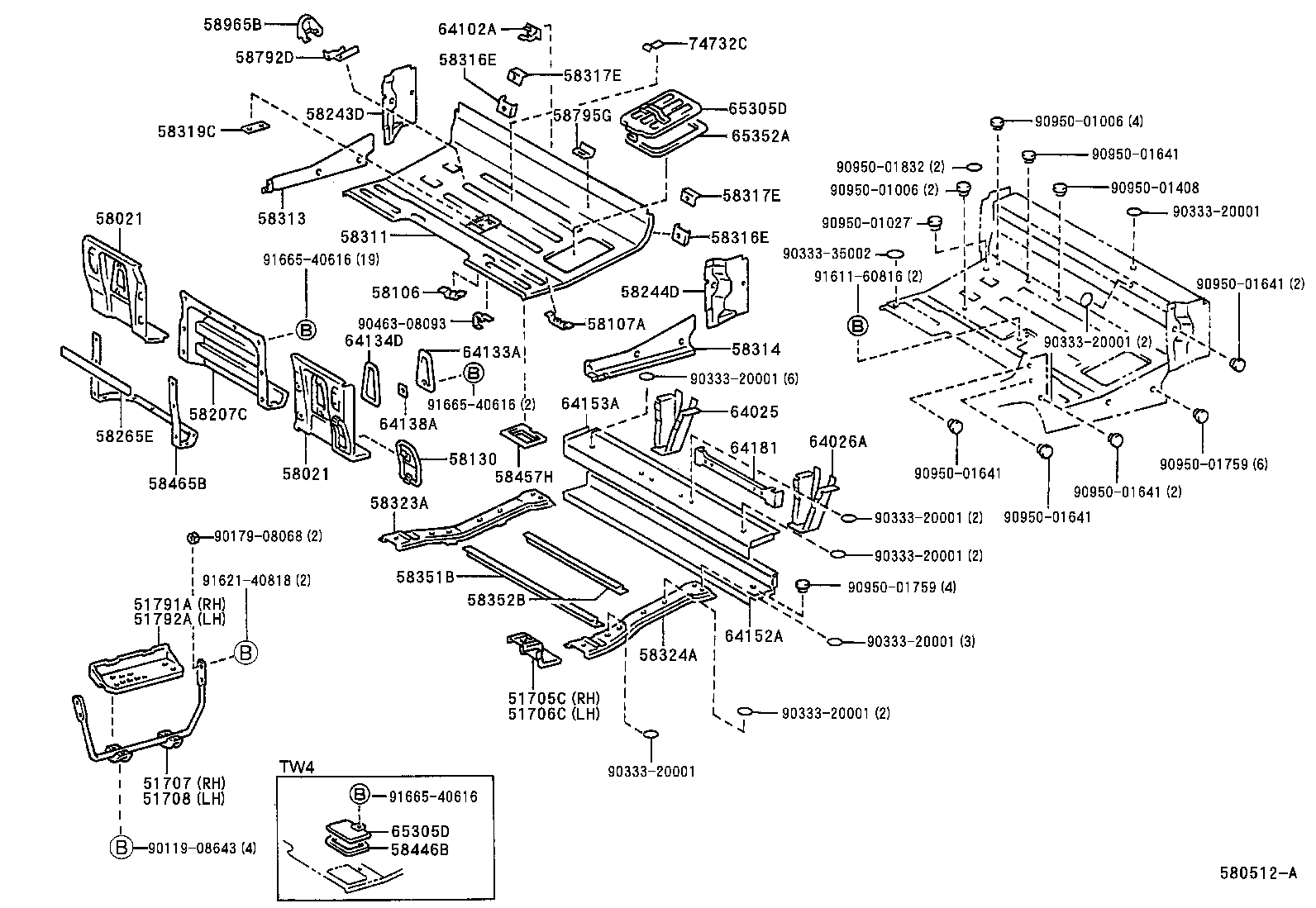

BU100-PQMMS3 (1995)
Toyota Dyna 200/Toyoace G25
(9505- )BU10#,142,147,RZU100..06S..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51705C - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH | ||||
| 51705-95400 |
BU10#,142,147,212,RZU100..06S,07S |
1 | ||
| 51706C - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH | ||||
| 51706-95400 |
BU10#,142,147,212,RZU100..06S,07S |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 58307-95403 |
BU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3) |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 58308-95400 |
BU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3) |
1 | ||
| 51791A - PANEL, STEP, REAR RH | ||||
| 51791-95A00 |
BU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3) |
1 | ||
| 51792A - PANEL, STEP, REAR LH | ||||
| 51791-95A00 |
BU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3) |
1 | ||
| 58021 - PANEL SUB-ASSY, HEADER | ||||
| 58021-37010 |
BU10#,142,147,RZU100..06S 右側 |
1 | ||
| 58022-37010 |
BU10#,142,147..06S 左側 |
1 | ||
| 58021-37010 |
BU10#,142,147..06S 右側 |
1 | ||
| 58022-37010 |
BU10#,142,147,RZU100..06S 左側 |
1 | ||
| 58021 - PANEL SUB-ASSY, HEADER | ||||
| 58021-37010 |
BU10#,142,147,RZU100..06S 右側 |
1 | ||
| 58022-37010 |
BU10#,142,147..06S 左側 |
1 | ||
| 58021-37010 |
BU10#,142,147..06S 右側 |
1 | ||
| 58022-37010 |
BU10#,142,147,RZU100..06S 左側 |
1 | ||
| 58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1 | ||||
| 58107-95A00 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58130 - COVER ASSY, RESERVE TANK SERVICE HOLE | ||||
| 58130-92600 |
BU12#;BU10#,142,147,212,RZU100..06S,07S |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-37020 |
BU12#;BU10#,142,RZU100..06S..(CBU,IV3) |
1 | ||
| 58207-37021 |
BU12#;BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58207-37021 |
BU10#,142,RZU100..06S..(CBU,IV3) |
1 | ||
| 58207-37021 |
BU120;BU10#,142,147..06S..(CBU,IV3) |
1 | ||
| 58243D - PANEL, FLOOR SIDE, REAR RH | ||||
| 58043-37010 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58244D - PANEL, FLOOR SIDE, REAR LH | ||||
| 58044-37010 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58265E - PACKING, TRANSMISSION COVER, C | ||||
| 58265-95400 |
BU12#;BU10#,142,147,RZU100..06S |
1 | ||
| 58265-95400 |
BU120;BU10#,142,147..06S |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-95415 |
BU10#,142,147,RZU100..TW4 |
1 | ||
| 58311-95415 |
BU10#,142,147..TW4 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-95402 |
BU10#,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-95403 |
BU10#,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-95402 |
BU10#,142,147,212,297,RZU100..(05S,06S,07S)..(CBU,IV3) |
2 | ||
| 58316E - RETAINER, REAR SEAT SET | ||||
| 58316-95402 |
BU10#,142,147,212,297,RZU100..(05S,06S,07S)..(CBU,IV3) |
2 | ||
| 58317E - RETAINER, REAR SEAT, NO.2 | ||||
| 58317-95402 |
BU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3) |
2 | ||
| 58317E - RETAINER, REAR SEAT, NO.2 | ||||
| 58317-95402 |
BU10#,142,147,212,RZU100..(06S,07S)..(CBU,IV3) |
2 | ||
| 58319C - ANCHOR, REAR SEAT | ||||
| 58319-95400 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58323A - BRACE, CENTER TO REAR MOUNTING, RH | ||||
| 58323-95403 |
BU10#,142,147,RZU100..06S |
1 | ||
| 58324A - BRACE, CENTER TO REAR MOUNTING, LH | ||||
| 58324-95403 |
BU10#,142,147,RZU100..06S |
1 | ||
| 58351B - REINFORCEMENT, REAR FLOOR PANEL, RH | ||||
| 58351-95406 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58352B - REINFORCEMENT, REAR FLOOR PANEL, LH | ||||
| 58352-95402 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58446B - PACKING, BATTERY SERVICE HOLE, NO.2 | ||||
| 58446-95402 |
BU10#,142,147,RZU100..TW4 |
1 | ||
| 58457H - BASE, BATTERY SERVICE HOLE, NO.2 | ||||
| 58457-95401 |
BU10#,142,147,RZU100..TW4 |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-92601 |
BU12#;BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 58465-92601 |
BU120;BU10#,142,147..06S..(CBU,IV3) |
1 | ||
| 58792D - SUPPORT, JACK | ||||
| 58792-95401 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
1 | ||
| 58795G - PLATE, JACK CLAMP | ||||
| 58795-95500 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 58965B - HOLDER, JACK | ||||
| 58965-95400 |
BU102..TW4;BU100,105,107,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64025-95401 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 64026A - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64025-95401 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT | ||||
| 64102-95403 |
BU102..TW4;BU100,105,107,142,147,172,RZU100..05S,06S |
2 | ||
| 64133A - COVER, HEADER PANEL | ||||
| 64133-95400 |
BU12#;BU10#,142,147,212,RZU100..06S,07S |
2 | ||
| 64134D - PACKING, HEADER PANEL COVER | ||||
| 64134-95400 |
BU12#;BU10#,142,147,212,RZU100..06S,07S |
2 | ||
| 64138A - SEAL, HEADER PANEL COVER | ||||
| 64138-95400 |
BU12#;BU10#,142,147,RZU100..06S..(CBU,IV3) |
4 | ||
| 64138-95400 |
BU120;BU10#,142,147..06S..(CBU,IV3) |
4 | ||
| 64152A - FRAME, BACK, LOWER | ||||
| 64152-95402 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 64153A - REINFORCEMENT, BACK FRAME | ||||
| 64153-95403 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR | ||||
| 64181-95401 |
BU10#,142,147,RZU100..06S..(CBU,IV3) |
1 | ||
| 65305D - COVER SUB-ASSY, BATTERY HOLE | ||||
| 65305-95A03 |
BU10#,142,147,RZU100..TW4 395 X 235 |
1 | ||
| 65350-95405 |
BU10#,142,147,RZU100..TW4 176 X 142 |
1 | ||
| 65350-95405 |
BU10#,142,147..TW4 176 X 142 |
1 | ||
| 65305-95A03 |
BU10#,142,147..TW4 395 X 235 |
1 | ||
| 65305D - COVER SUB-ASSY, BATTERY HOLE | ||||
| 65305-95A03 |
BU10#,142,147,RZU100..TW4 395 X 235 |
1 | ||
| 65350-95405 |
BU10#,142,147,RZU100..TW4 176 X 142 |
1 | ||
| 65350-95405 |
BU10#,142,147..TW4 176 X 142 |
1 | ||
| 65305-95A03 |
BU10#,142,147..TW4 395 X 235 |
1 | ||
| 65352A - PACKING, BATTERY HOLE COVER, NO.2 | ||||
| 65352-95A02 |
BU10#,142,147,212,RZU100..06S,07S |
1 | ||
| 74732C - BRACKET, TOOL BAG SET BAND | ||||
| 74732-95600 |
BU102..TW4;BU100,105,107,142,147,172,212,297,RZU100..05S,06S,07S |
2 | ||
| Common parts | ||||
| 90119-08643 | ||||
| 90179-08068 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90463-08093 | ||||
| 90950-01006 | ||||
| 90950-01027 | ||||
| 90950-01408 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
| 90950-01832 | ||||
| 91611-60816 | ||||
| 91621-40818 | ||||
| 91665-40616 | ||||
