BU100-PQMMS (1995)

Toyota Dyna 200/Toyoace G25

Production May 1995 - Aug 1997
Engine 3B
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,142,147,172,212,297,RZU100..05S,06S,07S

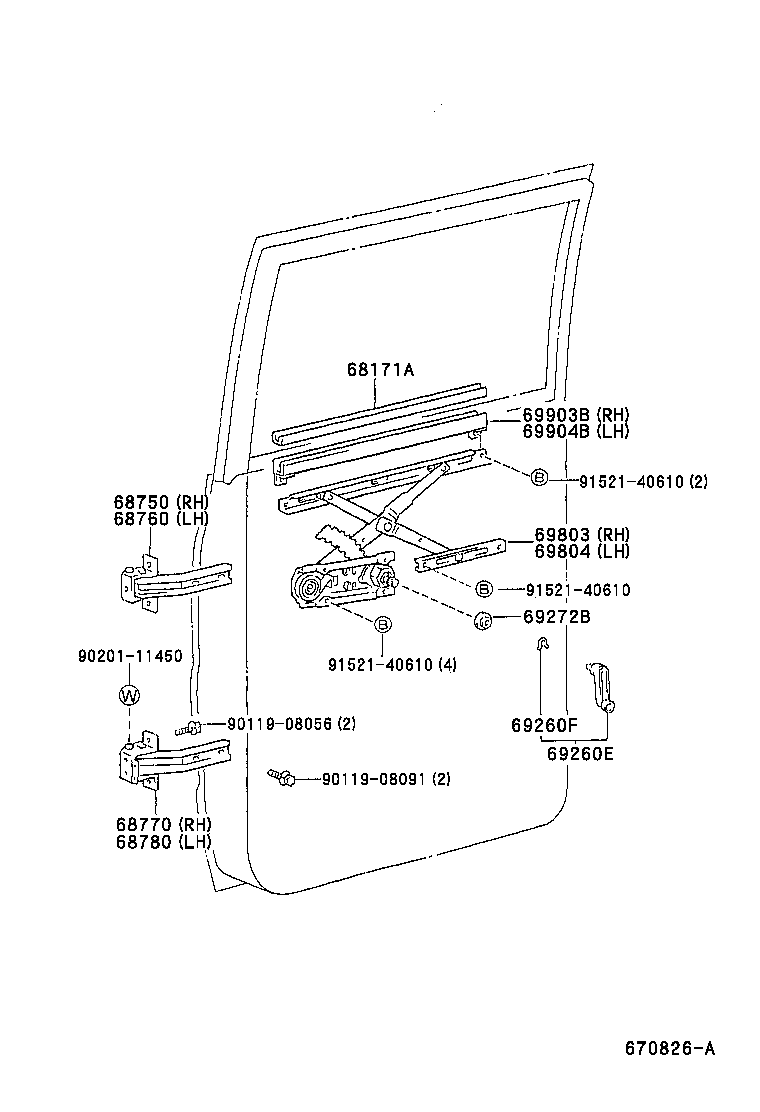

Click highlighted areas on diagram

diagram 68171A 68750 68760 68770 68780 69260E 69260F 69272B 69803 69804 69903B 69904B 9011908056 9011908091 9020111450 9152140610 9152140610 9152140610
Part # Description Qty Price
68171A - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
69971-22010

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68750-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-95401

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-95402

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-10040B1

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

BLUISH GRAY,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69272-3001008

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

NATURAL WHITE,TRIM1#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-95400

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-95400

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69903B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69901-87002

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
69904B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-87002

BU10#,142,147,172,212,297,RZU100..05S,06S,07S

 1
Common parts
90119-08056
90119-08091
90201-11450
91521-40610
