BU100-PQMMS (1995)
Toyota Dyna 200/Toyoace G25
ILLUST NO. 2 OF 2(9505- )BU10#,142,147,172,212,297,RZU100..05S,06S,07S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-95401 |
BU10#,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-95401 |
BU10#,142,147,172,212,RZU100..05S,06S,07S |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-95402 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
2 | ||
| 67842A - COVER, REAR DOOR SERVICE HOLE, LOWER | ||||
| 67842-95403 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
4 | ||
| 67842A - COVER, REAR DOOR SERVICE HOLE, LOWER | ||||
| 67842-95403 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
4 | ||
| 67843A - COVER, REAR DOOR SERVICE HOLE, NO.2 | ||||
| 67843-95400 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
2 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-95403 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
24 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-95402 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
24 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-37020 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-37010 |
BU10#,142,172,212,RZU100..05S,06S,07S *TT,厚さ=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68113-37010 |
BU10#,142,172,212,RZU100..05S,06S,07S *TT,厚さ=3.5 |
1 | ||
| 68113-37020 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142 - RUN, REAR DOOR GLASS | ||||
| 68142-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
2 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| 68211C - CLIP(FOR REAR DOOR GLASS WEATHERSTRIP) | ||||
| 68211-30080 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
10 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68180-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
1 | ||
| Common parts | ||||
| 90950-01011 | ||||
| 91521-40610 | ||||
| 91661-40614 | ||||

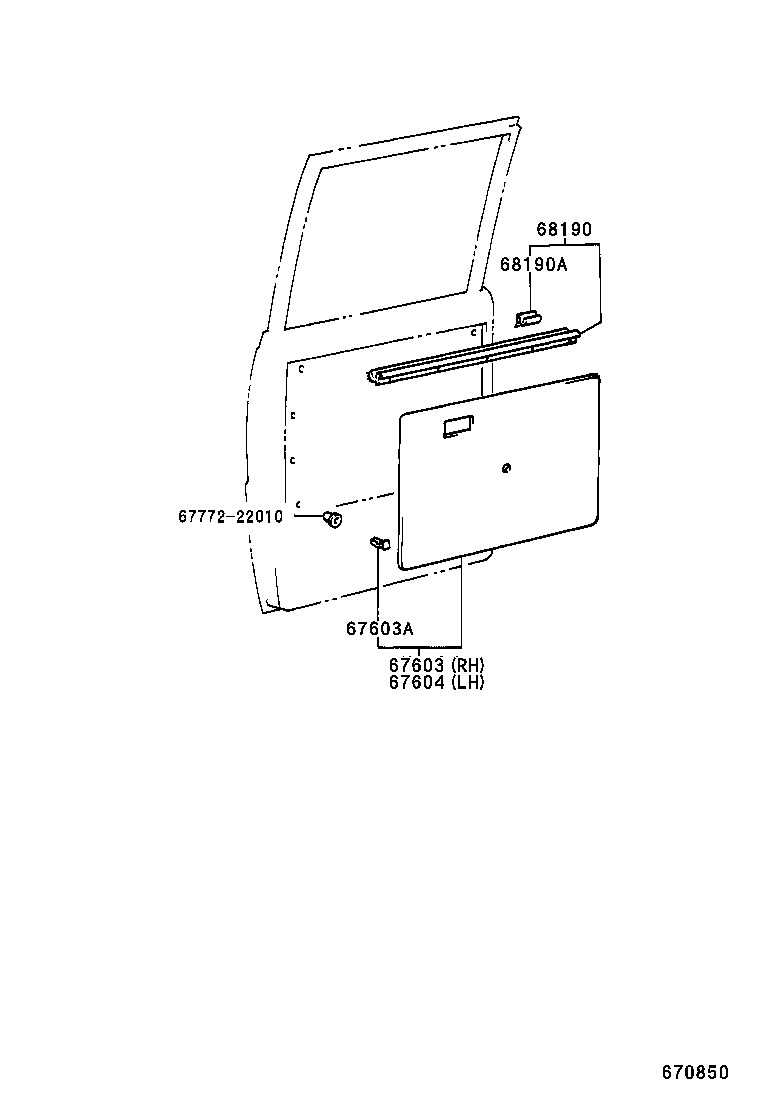

ILLUST NO. 1 OF 2(9505- )BU212,RZU100..DM5,DM6,T2,T3,T4,TW1,TW4..DSL,EFI,LPG,TD ; (9505- )BU10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-95403B0 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12020 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
20 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-95403B0 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S GRAY,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-95401 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S 右側 |
1 | ||
| 68174-95400 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S 左側 |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-12080 |
BU10#,142,147,172,212,297,RZU100..05S,06S,07S |
10 | ||
| Common parts | ||||
| 67772-22010 | ||||
