YY211-TQMGS3 (1995)
Toyota Dyna 150/Toyoace G15
Production
May 1995
-
Jul 2001
Engine
3Y
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )3Y

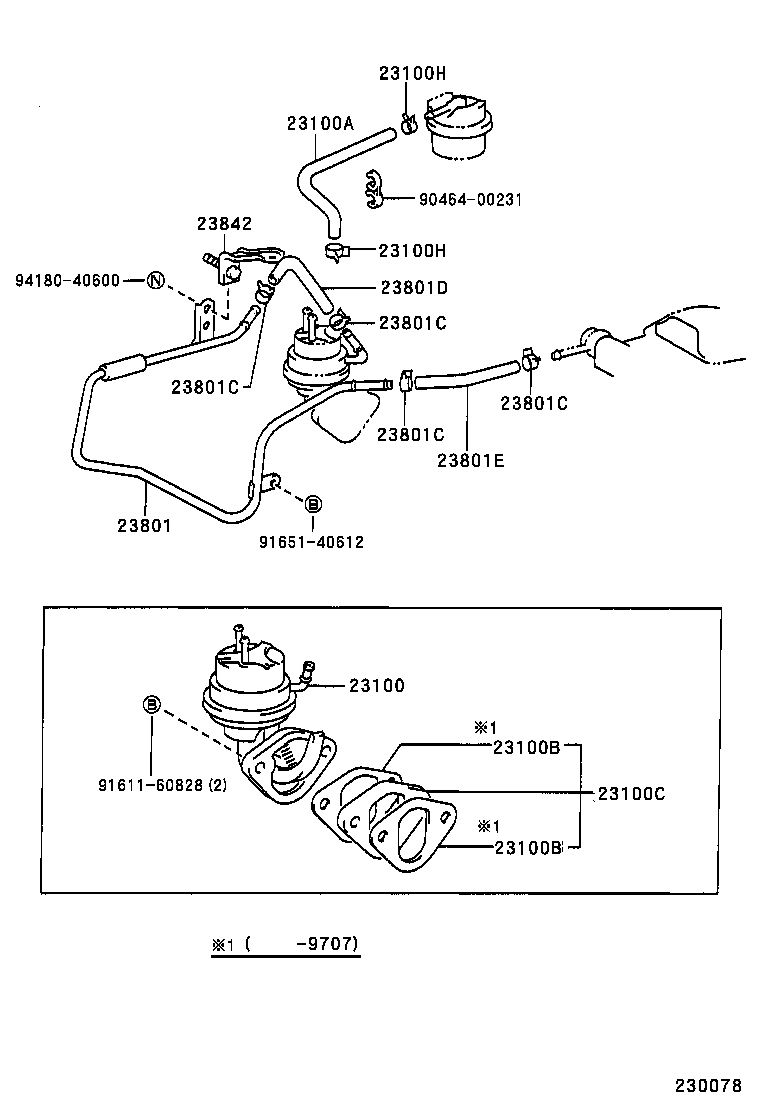

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-73031 |
3Y..YY101,121,131,201,211 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 23271-73130 |
3Y..YY201,211 |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05022 |
3Y..YY101,121,131,201,211 |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05022 |
3Y..YY101,121,131,201,211 |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06014 |
3Y..YY101,121,131,201,211 |
1 | ||
| 90923-06018 |
3Y..YY101,121,131,201,211 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3Y..YY101,121,131,201,211 |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
3Y..YY101,121,131,201,211 |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-71011 |
3Y..YY101,121,131,201,211 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
3Y..YY101,121,131,201,211 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
3Y..YY101,121,131,201,211 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
3Y..YY101,121,131,201,211 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
3Y..YY101,121,131,201,211 |
4 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95333-06010 |
3Y..YY101,121,131,201,211 *H,L=100 |
1 | ||
| 90910-05225 |
3Y..YY101,121,131,201,211 |
1 | ||
| 23801E - HOSE, FUEL PIPE, NO.2 | ||||
| 95333-06010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23841-71012 |
3Y..YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90464-00231 | ||||
| 91611-60828 | ||||
| 91651-40612 | ||||
| 94180-40600 | ||||
