YY211-TQMGS (1995)
Toyota Dyna 150/Toyoace G15

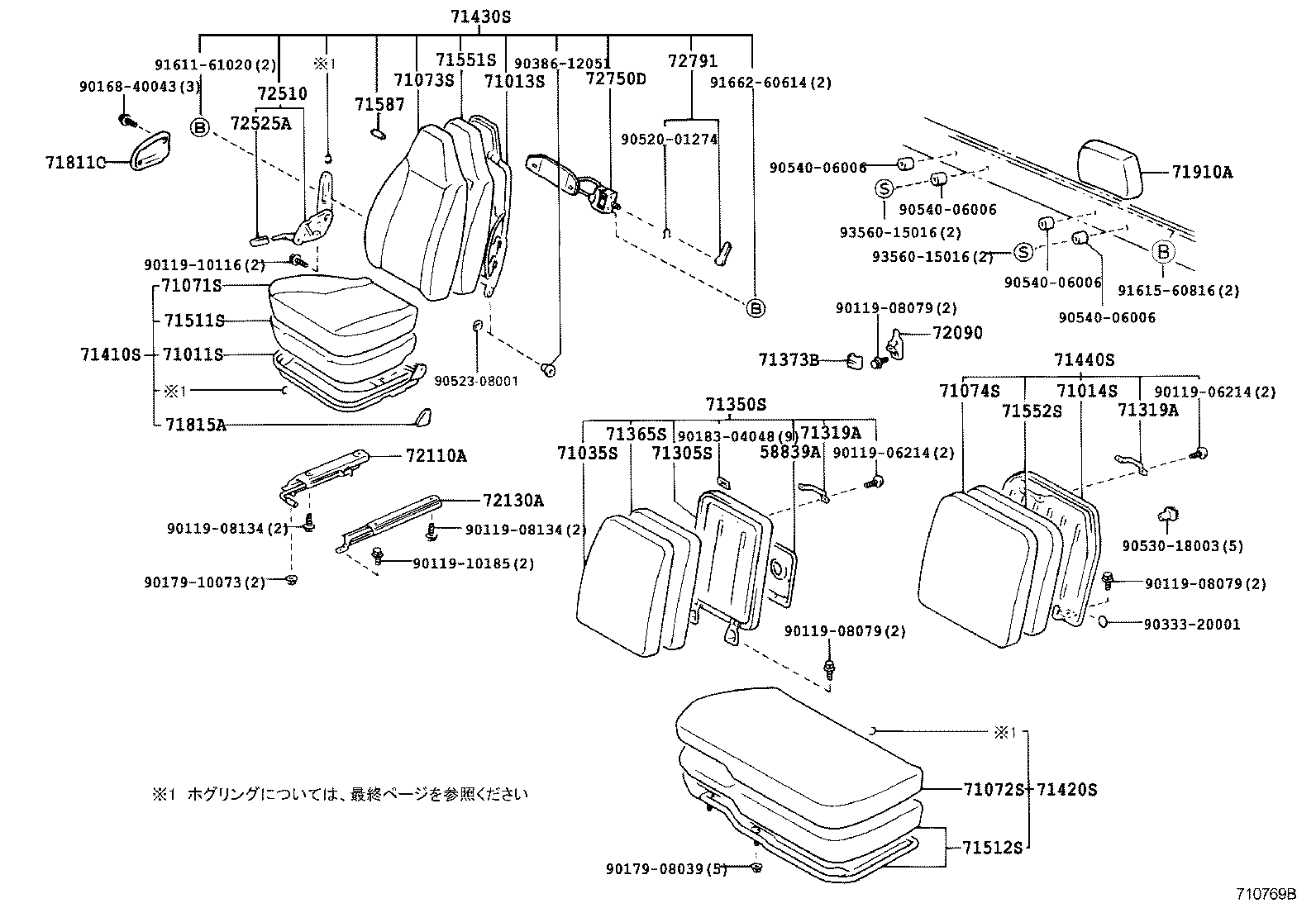

ILLUST NO. 1 OF 2(9505- )T1,T2,T3,T4..CBU,IV3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-95400C0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71013-37060 |
LY201,211,YY201,211 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-9541701 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37140B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71095-37110B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71095-25030B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71095-25020B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 71095-37090B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-25040B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 71071-25020B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-25050B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-37160B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 71071-37460B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37560B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-25050B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71072-37400B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 71072-37460B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71072-25040B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..CBU,IV3 BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37280B0 |
LY201,211,YY201,211..T1,T2,T3,T4 BLUISH GRAY,TRIM1# |
1 | ||
| 71073-37490B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-37460B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 BLUISH GRAY,TRIM1# |
1 | ||
| 71073-25020B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-25090B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-25080B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37480B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-37600B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-37520B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71074-25020B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-25030B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-9540001 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLACK,TRIM1# |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95402 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) |
2 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95402 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) |
2 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-37110B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71350-37140B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71350-25020B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71350-37090B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71350-25030B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-95400 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-95400B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37270B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-25050B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-25020B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-37510B0 |
LY161..(T2,T3)..MTM..DSL;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71410-25040B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37460 |
YY211..T4..CBU;YY201..15T..IV3;YY211..(T2,T3,T4)..IV3 ***,ｶｽﾀﾑ B-*104 |
1 | ||
| 71420-37400B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..CBU,IV3 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-37460B0 |
YY201..125;LY201,211..T1,T2,T3,T4;YY201,211..(T2,T3)..15T..CBU ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71420-37560B0 |
LY161..(T2,T3)..MTM..DSL;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71420-25040B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..CBU,IV3 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-25050B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-25030B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37310B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37550B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37590B0 |
LY161..(T2,T3)..MTM..DSL;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71430-25110B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-25100B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37540B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-37580B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71440-25030B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-25020B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-37730B0 |
LY161..(T2,T3)..MTM..DSL;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37070 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71551-37040 |
LY201,211,YY201,211 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-95407 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-95J00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J00B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J00B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-37100J0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71910-25050B0 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71910-37090B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 71910-25030B0 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) BLUISH GRAY,TRIM1# |
1 | ||
| 71910-37101J1 |
LY161..T2..CBU;LY161..DSL..IV3;LY161..T3..125..CBU;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-95400B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37010B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37010 |
LY201,211,YY201,211 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20030B0 |
LY201,211,YY201,211 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-08079 | ||||
| 90119-08134 | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90183-04048 | ||||
| 90333-20001 | ||||
| 90386-12051 | ||||
| 90520-01274 | ||||
| 90530-18003 | ||||
| 90540-06006 | ||||
| 91611-61020 | ||||
| 91615-60816 | ||||
| 91662-60614 | ||||
| 93560-15016 | ||||

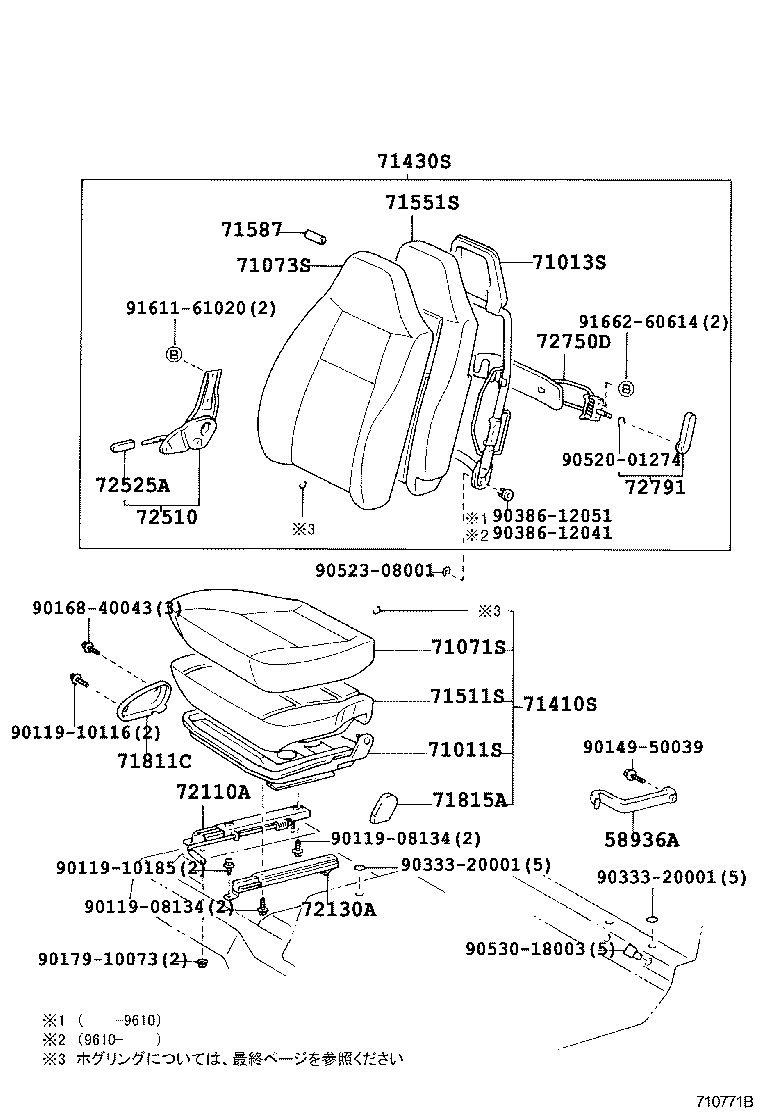

ILLUST NO. 1 OF 2(9505- )
ｳｵ-ｸｽﾙ- ﾊﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71013-37060 |
LY201,211,YY201,211 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-25040B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 71071-25020B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-25050B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-37160B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 71071-37460B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37280B0 |
LY201,211,YY201,211..T1,T2,T3,T4 BLUISH GRAY,TRIM1# |
1 | ||
| 71073-37490B1 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-37460B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 BLUISH GRAY,TRIM1# |
1 | ||
| 71073-25020B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-25090B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-25080B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37270B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-25050B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-25020B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-37510B0 |
LY161..(T2,T3)..MTM..DSL;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71410-25040B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-25030B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37310B0 |
LY201,211,YY201,211..T1,T2,T3,T4 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37550B0 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T1,T2,T3,T4 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-37590B0 |
LY161..(T2,T3)..MTM..DSL;LY101,111,121,131,151,201,211,YY101,121,131,201,211..(T1,T2,T3,T4)..(CBU,IV3) ***,ｶｽﾀﾑ B-*104,DK. BLUE,TRIM1# |
1 | ||
| 71430-25110B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ***,ｶｽﾀﾑ B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-25100B1 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211..T1,T2,T3,T4 ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37070 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 71551-37040 |
LY201,211,YY201,211 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-95J00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J00B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J00B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37010B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLUISH GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-37010 |
LY201,211,YY201,211 |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-20030B0 |
LY201,211,YY201,211 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90149-50039 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90333-20001 | ||||
| 90386-12041 | ||||
| 90386-12051 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 90530-18003 | ||||
| 91611-61020 | ||||
| 91662-60614 | ||||
(9505- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
