YY211-TLMGS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )125..LPG ; (9505- )LY201,YY201..TS..ST ; (9610- )LY10#,11#,YY101 ;

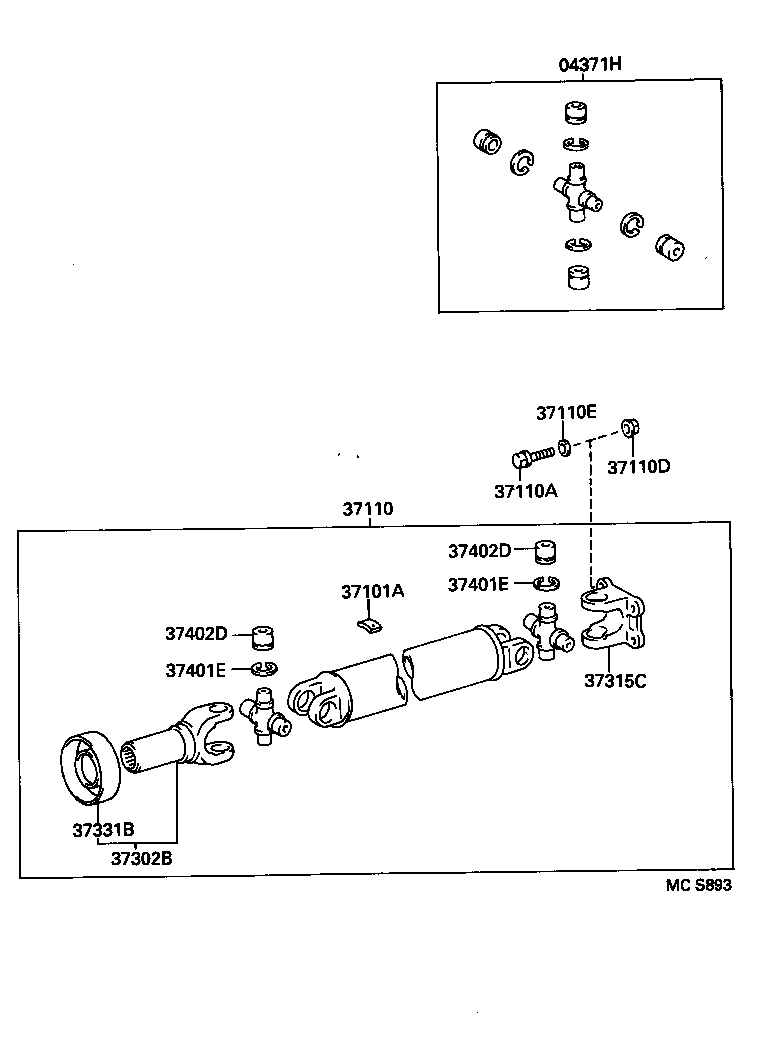

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35031 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 |
2 | ||
| 04371-35040 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 RED PAINTED |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 10G,長さ=20.7 |
1 | ||
| 90937-01156 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 24G,長さ=49.7 |
1 | ||
| 90937-01152 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 16G,長さ=33.2 |
1 | ||
| 90937-01136 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 20G,長さ=41.4 |
1 | ||
| 90937-01157 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 26G,長さ=53.9 |
1 | ||
| 90937-01149 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 6G,長さ=12.4 |
1 | ||
| 90937-01148 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 30G,長さ=62.2 |
1 | ||
| 90937-01151 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 28G,長さ=58.1 |
1 | ||
| 90937-01155 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 22G,長さ=45.6 |
1 | ||
| 90937-01194 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 20G,厚さ=4.5 |
1 | ||
| 90937-01193 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 16G,厚さ=4.5 |
1 | ||
| 90937-01147 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 2G,厚さ=2.0 |
1 | ||
| 90937-01191 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 8G,厚さ=1.6 |
1 | ||
| 90937-01199 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01192 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 12G,厚さ=4.5 |
1 | ||
| 90937-01154 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 18G,長さ=37.3 |
1 | ||
| 90937-01184 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 4G,厚さ=1.6 |
1 | ||
| 90937-01198 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01200 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 32G,厚さ=6,長さ=24.3 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-35391 |
LY13#,21#,YY131,211..(T2,T3,TW2)..MTM |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
8 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
2 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-35020 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26040 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26038 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26043 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26045 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26046 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26040 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26038 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26043 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26045 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26046 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
8 | ||
| 37402-30021 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
8 | ||
| 37402-30021 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
(9505- )YY211..MTM ; (9505- )LY201,YY201..WT ; (9505- )LY201,YY201..ST..15
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-35031 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 |
2 | ||
| 04371-35040 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 RED PAINTED |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 10G,長さ=20.7 |
1 | ||
| 90937-01156 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 24G,長さ=49.7 |
1 | ||
| 90937-01152 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 16G,長さ=33.2 |
1 | ||
| 90937-01136 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 20G,長さ=41.4 |
1 | ||
| 90937-01157 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 26G,長さ=53.9 |
1 | ||
| 90937-01149 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 6G,長さ=12.4 |
1 | ||
| 90937-01148 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 30G,長さ=62.2 |
1 | ||
| 90937-01151 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 28G,長さ=58.1 |
1 | ||
| 90937-01155 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 22G,長さ=45.6 |
1 | ||
| 90937-01194 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 20G,厚さ=4.5 |
1 | ||
| 90937-01193 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 16G,厚さ=4.5 |
1 | ||
| 90937-01147 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 2G,厚さ=2.0 |
1 | ||
| 90937-01191 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 8G,厚さ=1.6 |
1 | ||
| 90937-01199 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01192 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 12G,厚さ=4.5 |
1 | ||
| 90937-01154 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 18G,長さ=37.3 |
1 | ||
| 90937-01184 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 4G,厚さ=1.6 |
1 | ||
| 90937-01198 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01200 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 32G,厚さ=6,長さ=24.3 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 10G,長さ=20.7 |
1 | ||
| 90937-01156 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 24G,長さ=49.7 |
1 | ||
| 90937-01152 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 14G,長さ=29.0 |
1 | ||
| 90937-01150 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 8G,長さ=16.6 |
1 | ||
| 90937-01153 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 16G,長さ=33.2 |
1 | ||
| 90937-01136 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 20G,長さ=41.4 |
1 | ||
| 90937-01157 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 26G,長さ=53.9 |
1 | ||
| 90937-01149 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 6G,長さ=12.4 |
1 | ||
| 90937-01148 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 4G,厚さ=2.0 |
1 | ||
| 90937-01140 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 30G,長さ=62.2 |
1 | ||
| 90937-01151 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 12G,長さ=24.9 |
1 | ||
| 90937-01158 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 28G,長さ=58.1 |
1 | ||
| 90937-01155 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 22G,長さ=45.6 |
1 | ||
| 90937-01194 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 20G,厚さ=4.5 |
1 | ||
| 90937-01193 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 16G,厚さ=4.5 |
1 | ||
| 90937-01147 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 2G,厚さ=2.0 |
1 | ||
| 90937-01191 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 8G,厚さ=1.6 |
1 | ||
| 90937-01199 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01192 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 12G,厚さ=4.5 |
1 | ||
| 90937-01154 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 18G,長さ=37.3 |
1 | ||
| 90937-01184 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 4G,厚さ=1.6 |
1 | ||
| 90937-01198 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01200 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 32G,厚さ=6,長さ=24.3 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-35391 |
LY13#,21#,YY131,211..(T2,T3,TW2)..MTM |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10085 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
8 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-35050 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,15#,16#,202,21#,YY121,131..T2,T3,TW1,TW2 |
2 | ||
| 37331B - COVER SUB-ASSY, REAR PROPELLER SHAFT SLIDING SHAFT DUST | ||||
| 37305-35020 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26040 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26038 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26043 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26045 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26046 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-26040 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26038 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26043 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26042 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26044 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26045 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26046 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,151,161,211,YY121,131 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
8 | ||
| 37402-30021 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 |
8 | ||
| 37402-30021 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| Common parts | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
