YY211-TKMFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

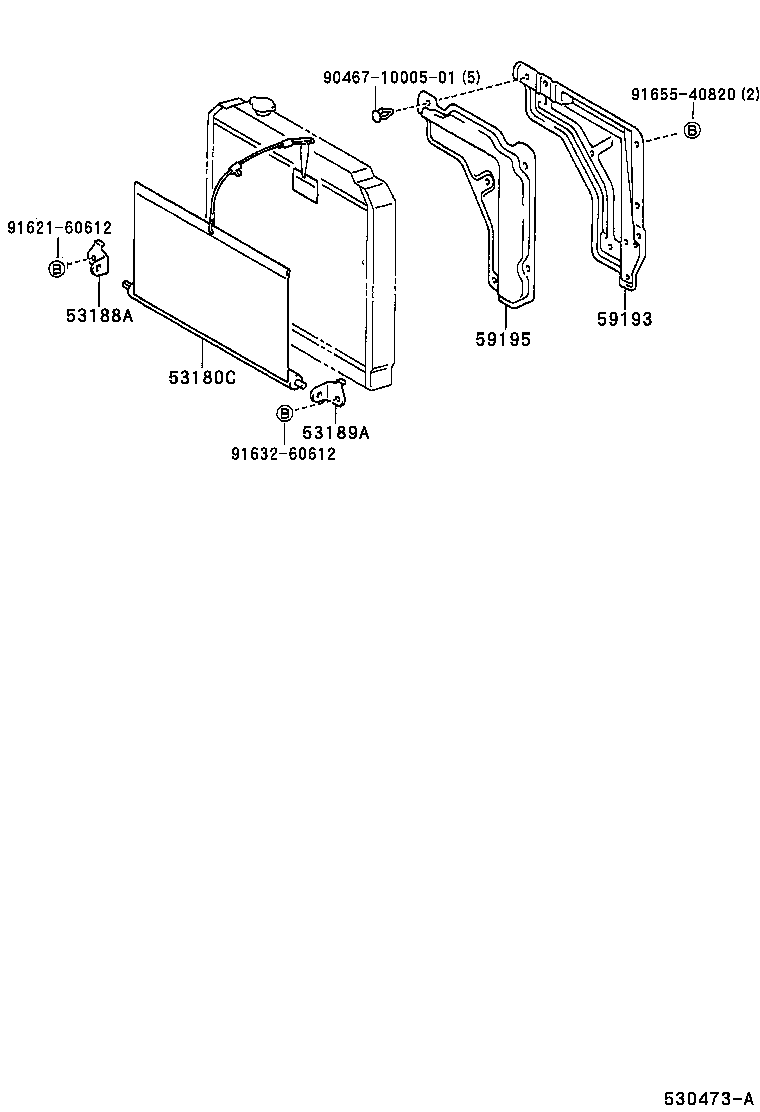

Click highlighted areas on diagram

diagram 53180C 53188A 53189A 59193 59195 904671000501 9162160612 9163260612 9165540820
Part # Description Qty Price
53180C - SHUTTER ASSY, RADIATOR
53180-25010

LY10#,11#,12#,15#..MTM;LY13#,16#..DSL..(CBU,IV3)

 1
53180-25030

LY20#,21#

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-37010

LY10#,11#,12#,15#,20#..MTM;LY13#,16#,21#..DSL..(CBU,IV3)

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-37010

LY10#,11#,12#,15#,20#..MTM;LY13#,16#,21#..DSL..(CBU,IV3)

 1
59193 - GUARD, NOISE SHUTTER
59193-25010

LY201,211..T1,T2,T3,T4

 1
59195 - INSULATOR, NOISE SHUTTER
59195-95A00

LY201,211..T1,T2,T3,T4

 1
Common parts
90467-1000501
91621-60612
91632-60612
91655-40820
