YY211-TKMFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

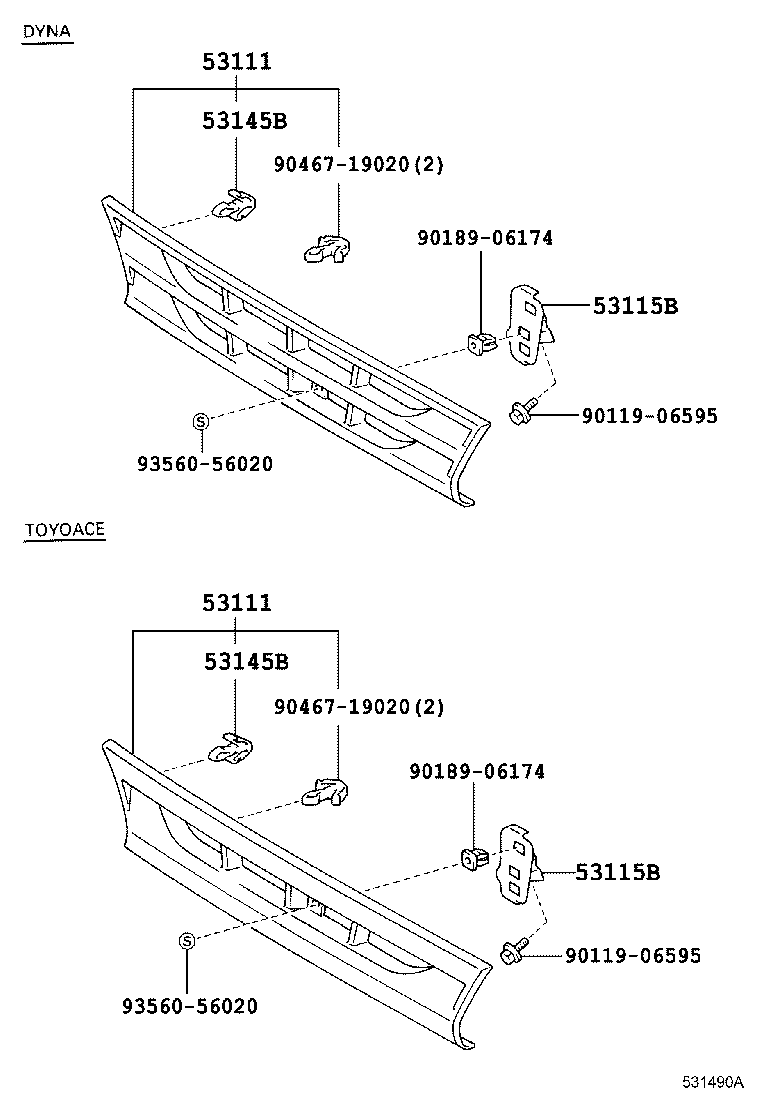

Click highlighted areas on diagram

diagram 53111 53111 53115B 53115B 53145B 53145B 9011906595 9011906595 9018906174 9018906174 9046719020 9046719020 9356056020 9356056020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-37010B0

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

ﾀﾞｲﾅ,SILVER,058 ,766 ,8P0

 1
53101-37040B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5

 1
53101-37040B0

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

ﾄﾖｴ-ｽ,SILVER,058 ,766 ,8P0

 1
53101-37010B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ﾀﾞｲﾅ,SILVER,048 ,705 ,8E5

 1
53111 - GRILLE, RADIATOR
53101-37010B0

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

ﾀﾞｲﾅ,SILVER,058 ,766 ,8P0

 1
53101-37040B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ﾄﾖｴ-ｽ,SILVER,048 ,705 ,8E5

 1
53101-37040B0

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

ﾄﾖｴ-ｽ,SILVER,058 ,766 ,8P0

 1
53101-37010B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ﾀﾞｲﾅ,SILVER,048 ,705 ,8E5

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
Common parts
90119-06595
90189-06174
90467-19020
93560-56020
