3302 - CLUTCH HOUSING & TRANSMISSION CASE (MTM)

YY211-TKMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996

Engine 3Y

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )LY201,YY201..WT ; (9505- )LY201,YY201..ST..15T ; (9505- )LY202,21#

Click highlighted areas on diagram

R451,R452,R453

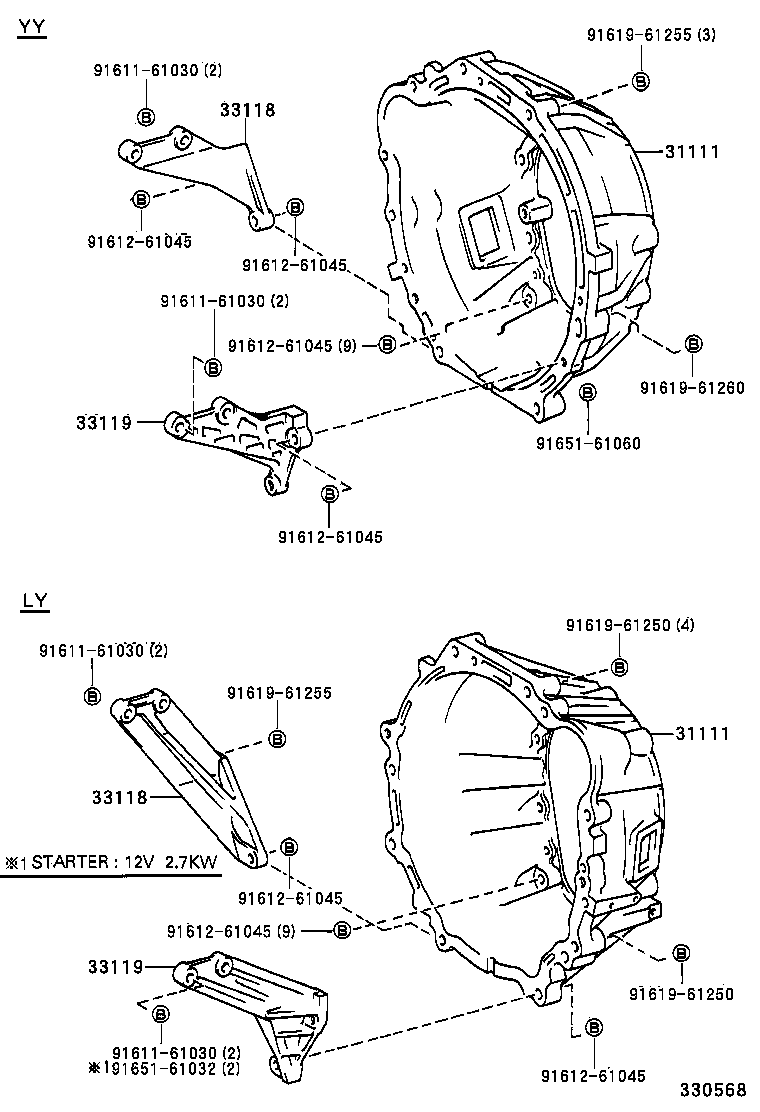

diagram

Part #	Description	Period	Qty	Price
31111 - HOUSING, CLUTCH
31111-25040	YY201..WT;YY201..ST..15T;LY16#,YY121,131,211..MTM..(CBR,LPG)	05/1995 - 07/2001	1
31111-25030	LY201..WT;LY201..ST..15T;LY12#,13#,202,21#..MTM	05/1995 - 07/2001	1
31111 - HOUSING, CLUTCH
31111-25040	YY201..WT;YY201..ST..15T;LY16#,YY121,131,211..MTM..(CBR,LPG)	05/1995 - 07/2001	1
31111-25030	LY201..WT;LY201..ST..15T;LY12#,13#,202,21#..MTM	05/1995 - 07/2001	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36031	LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)	05/1995 - 12/2999	1
33118-25040	LY201,211..MTM	05/1995 - 05/1998	1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36031	LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)	05/1995 - 12/2999	1
33118-25040	LY201,211..MTM	05/1995 - 05/1998	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36030	LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)	05/1995 - 12/2999	1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36030	LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)	05/1995 - 12/2999	1
Common parts
91611-61030
91612-61045
91619-61250
91619-61255
91619-61260
91651-61032
91651-61060
