YY211-TKMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

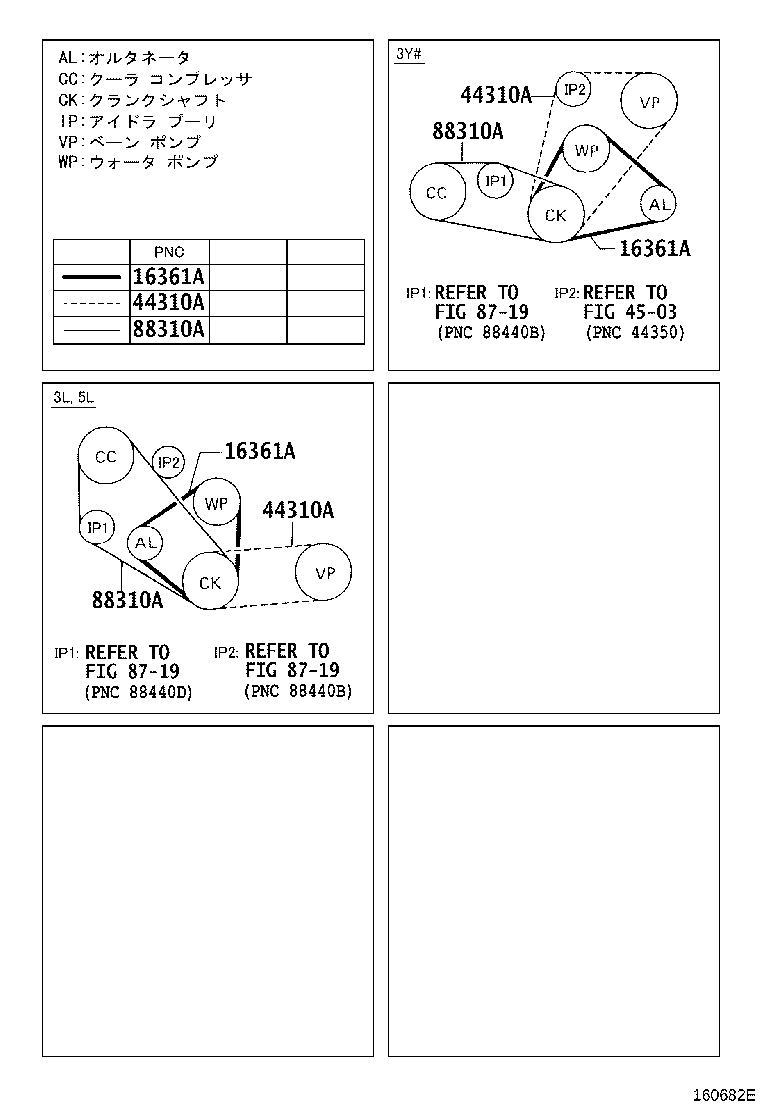

Click highlighted areas on diagram

diagram 16361A 16361A 16361A 44310A 44310A 44310A 4503 8719 8719 8719 88310A 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80820

3Y#..LY16#,YY101,121,131,201,211

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80820

3Y#..LY16#,YY101,121,131,201,211

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-80820

3Y#..LY16#,YY101,121,131,201,211

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

LY16#,YY101,121,131,201,211..CBR,LPG

長さ=1055

 1
99332-00850

LY10#,11#,20#,21#

長さ=850

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

LY16#,YY101,121,131,201,211..CBR,LPG

長さ=1055

 1
99332-00850

LY10#,11#,20#,21#

長さ=850

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

LY16#,YY101,121,131,201,211..CBR,LPG

長さ=1055

 1
99332-00850

LY10#,11#,20#,21#

長さ=850

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10880

LY16#,YY101,121,131,201,211..CBR,LPG

長さ=880

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10880

LY16#,YY101,121,131,201,211..CBR,LPG

長さ=880

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-10880

LY16#,YY101,121,131,201,211..CBR,LPG

長さ=880

 1
Linked diagrams
4503
8719
