YY211-TGPES3 (1999)
Toyota Dyna 150/Toyoace G15

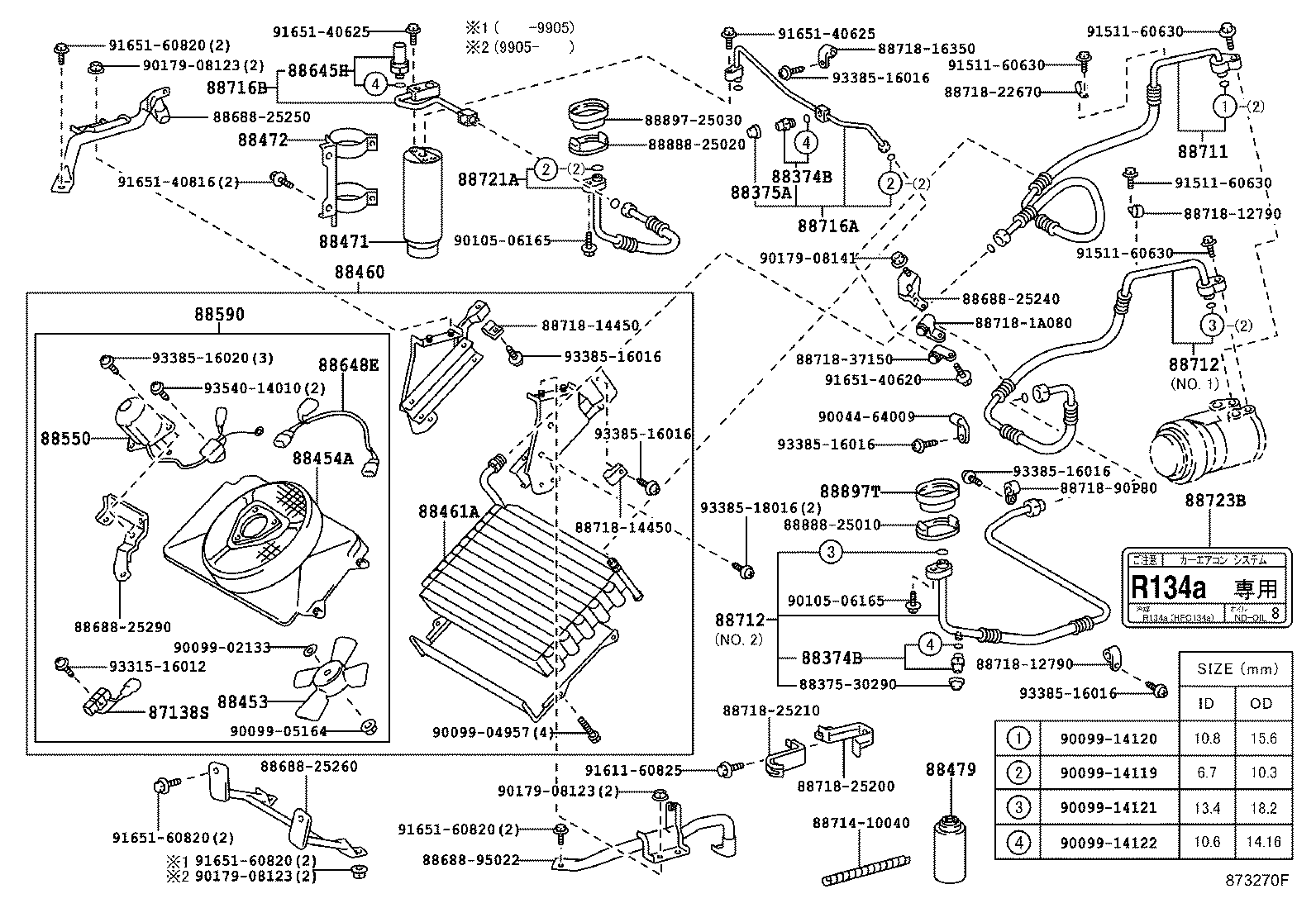

ILLUST NO. 1 OF 2(9905- )LY202,212,YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138S - RESISTOR, BLOWER | ||||
| 87138-37020 |
LY122,132..T2..MTM..15T..IV3;LY102,112,202,212,YY101,201,211 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 88374-30010 |
LY202,212,YY201,211 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
2 | ||
| 88374-30010 |
LY202,212,YY201,211 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-95A01 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-25010 |
LY202,212,YY201,211 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-25070 |
YY201,211;LY201..125,1T;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T3,TW2)..MTM;LY211..(T2,T4)..MTM..CBU |
1 | ||
| 88460-25180 |
LY212,YY211..ATM |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-25020 |
LY20#,21#,YY201,211 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-25080 |
LY202,212,YY201,211 |
1 | ||
| 88472-95011 |
LY201,211,YY201,211 |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 200G |
2 | ||
| 90986-02007 |
LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211 250G |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 87104-25620 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-25010 |
LY201,211,YY201,211 |
1 | ||
| 88590-25060 |
YY201,211;LY212..CBU;LY212..ATM..IV3;LY202,212..T3,TW2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60030 |
LY102..MTM..125..IV3;LY112,122,132,152,162,202,212,YY121,131,201,211 |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-25130 |
LY202,212,YY201,211 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-25130 |
YY201,211 |
1 | ||
| 88711-25340 |
YY201,211 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25170 |
YY201,211 |
1 | ||
| 88712-25410 |
YY201,211 NO.1 |
1 | ||
| 88712-25420 |
LY202,212,YY201,211 NO.2 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-25170 |
YY201,211 |
1 | ||
| 88712-25410 |
YY201,211 NO.1 |
1 | ||
| 88712-25420 |
LY202,212,YY201,211 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-25120 |
LY201,211,YY201,211 |
1 | ||
| 88716-25220 |
LY202,212,YY201,211 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-25110 |
LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY202,212,YY201,211;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3 |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-25050 |
YY201,211;LY201..125,1T;LY211..T3,TW2;LY201..15T..CBU;LY201..ST..15T..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3 |
1 | ||
| 88721-25190 |
LY202,212,YY201,211 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-25020 |
LY102,112,122,132,152,162,202,212,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 88375-30290 | ||||
| 88688-25240 | ||||
| 88688-25250 | ||||
| 88688-25260 | ||||
| 88688-25290 | ||||
| 88688-95022 | ||||
| 88714-10040 | ||||
| 88718-12790 | ||||
| 88718-14450 | ||||
| 88718-16350 | ||||
| 88718-1A080 | ||||
| 88718-22670 | ||||
| 88718-25200 | ||||
| 88718-25210 | ||||
| 88718-37150 | ||||
| 88718-90P80 | ||||
| 88888-25010 | ||||
| 88888-25020 | ||||
| 88897-25030 | ||||
| 90044-64009 | ||||
| 90099-02133 | ||||
| 90099-04957 | ||||
| 90099-05164 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90105-06165 | ||||
| 90179-08123 | ||||
| 90179-08141 | ||||
| 91511-60630 | ||||
| 91611-60825 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||
| 91651-60820 | ||||
| 93315-16012 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93540-14010 | ||||
