YY211-TGPEP3 (1995)
Toyota Dyna 150/Toyoace G15
(9505- )YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
LY161,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44318-28012 |
LY162,YY121,131,201,211..CBR,LPG |
1 | ||
| 44318-28012 |
YY101..1T..CBU;LY162,YY121,131,201,211..CBR,LPG |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44350 - PULLEY ASSY, POWER STEERING IDLE | ||||
| 44350-28011 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25060 |
LY20#,21# |
1 | ||
| 44410-25050 |
YY201,211 |
1 | ||
| 44410-25070 |
LY10#,11# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 44423F - BOLT, UNION | ||||
| 90401-17002 |
LY201,211,YY201,211 |
1 | ||
| 96341-11703 |
LY20#,21#,YY201,211 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-17002 |
LY20#,21#,YY201,211 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-17002 |
LY20#,21#,YY201,211 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44443-25010 |
LY10#,11#,20#,21# |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-27010 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| Common parts | ||||
| 90105-10092 | ||||
| 90467-16008 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91612-61035 | ||||
| 91612-G1028 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 94130-00802 | ||||
(9505- )LY20#,21#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
LY161,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44318-28012 |
LY162,YY121,131,201,211..CBR,LPG |
1 | ||
| 44318-28012 |
YY101..1T..CBU;LY162,YY121,131,201,211..CBR,LPG |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-25030 |
LY20#,21# |
1 | ||
| 44348-26060 |
LY10#,11# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25060 |
LY20#,21# |
1 | ||
| 44410-25050 |
YY201,211 |
1 | ||
| 44410-25070 |
LY10#,11# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-25050 |
LY20#,21# |
1 | ||
| 44411-26021 |
LY10#,11# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-25040 |
LY20#,21# |
1 | ||
| 44423F - BOLT, UNION | ||||
| 90401-17002 |
LY201,211,YY201,211 |
1 | ||
| 96341-11703 |
LY20#,21#,YY201,211 |
1 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-17002 |
LY20#,21#,YY201,211 |
2 | ||
| 44423G - GASKET, UNION BOLT | ||||
| 90430-17002 |
LY20#,21#,YY201,211 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44443-25010 |
LY10#,11#,20#,21# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30070 |
LY10#,11#,20#,21# |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10152 | ||||
| 90105-12109 | ||||
| 90119-10049 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91651-60820 | ||||
| 94130-00802 | ||||
(9610- )LY10#,11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44318 - SPACER, VANE PUMP DRIVE PULLEY | ||||
| 44318-28012 |
LY161,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44318-28012 |
LY162,YY121,131,201,211..CBR,LPG |
1 | ||
| 44318-28012 |
YY101..1T..CBU;LY162,YY121,131,201,211..CBR,LPG |
1 | ||
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-28013 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-25030 |
LY20#,21# |
1 | ||
| 44348-26060 |
LY10#,11# |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-25060 |
LY20#,21# |
1 | ||
| 44410-25050 |
YY201,211 |
1 | ||
| 44410-25070 |
LY10#,11# |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-25050 |
LY20#,21# |
1 | ||
| 44411-26021 |
LY10#,11# |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-28021 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 44443-25010 |
LY10#,11#,20#,21# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-30070 |
LY10#,11#,20#,21# |
1 | ||
| Common parts | ||||
| 90105-10042 | ||||
| 90105-10152 | ||||
| 90105-12109 | ||||
| 90119-10049 | ||||
| 90461-10678 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91651-60820 | ||||
| 91651-60828 | ||||

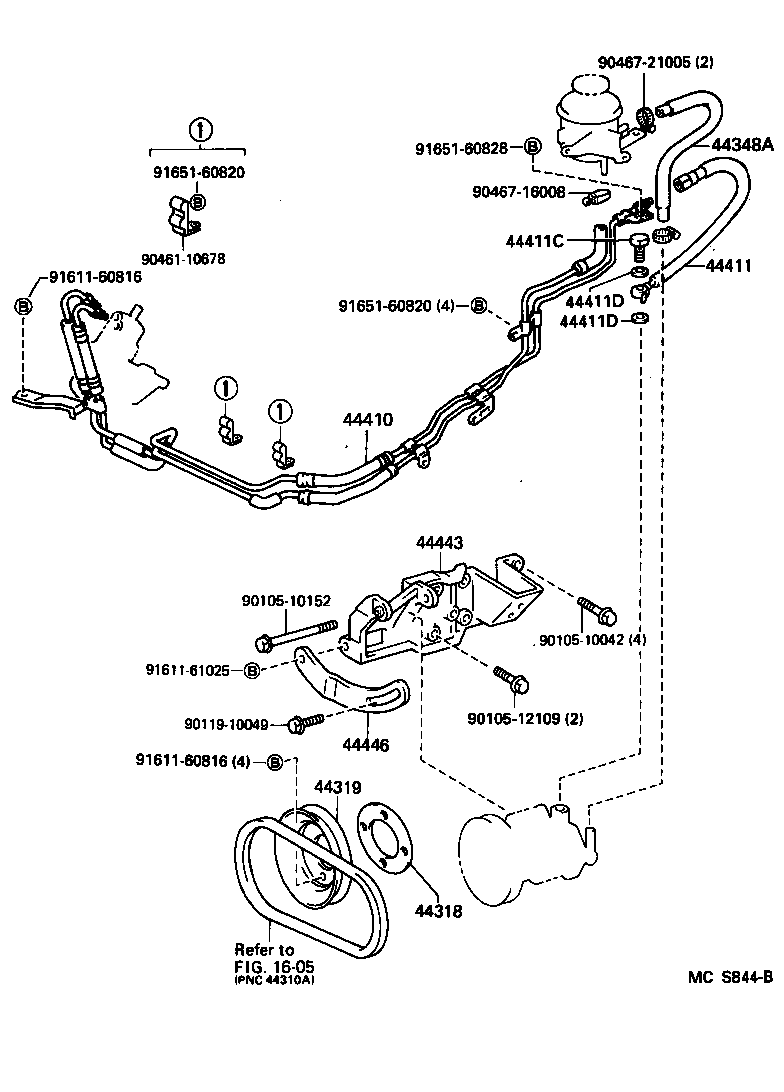

| Linked diagrams | ||||
| 1605 | ||||
