YY211-TGMGS3 (1995)
Toyota Dyna 150/Toyoace G15

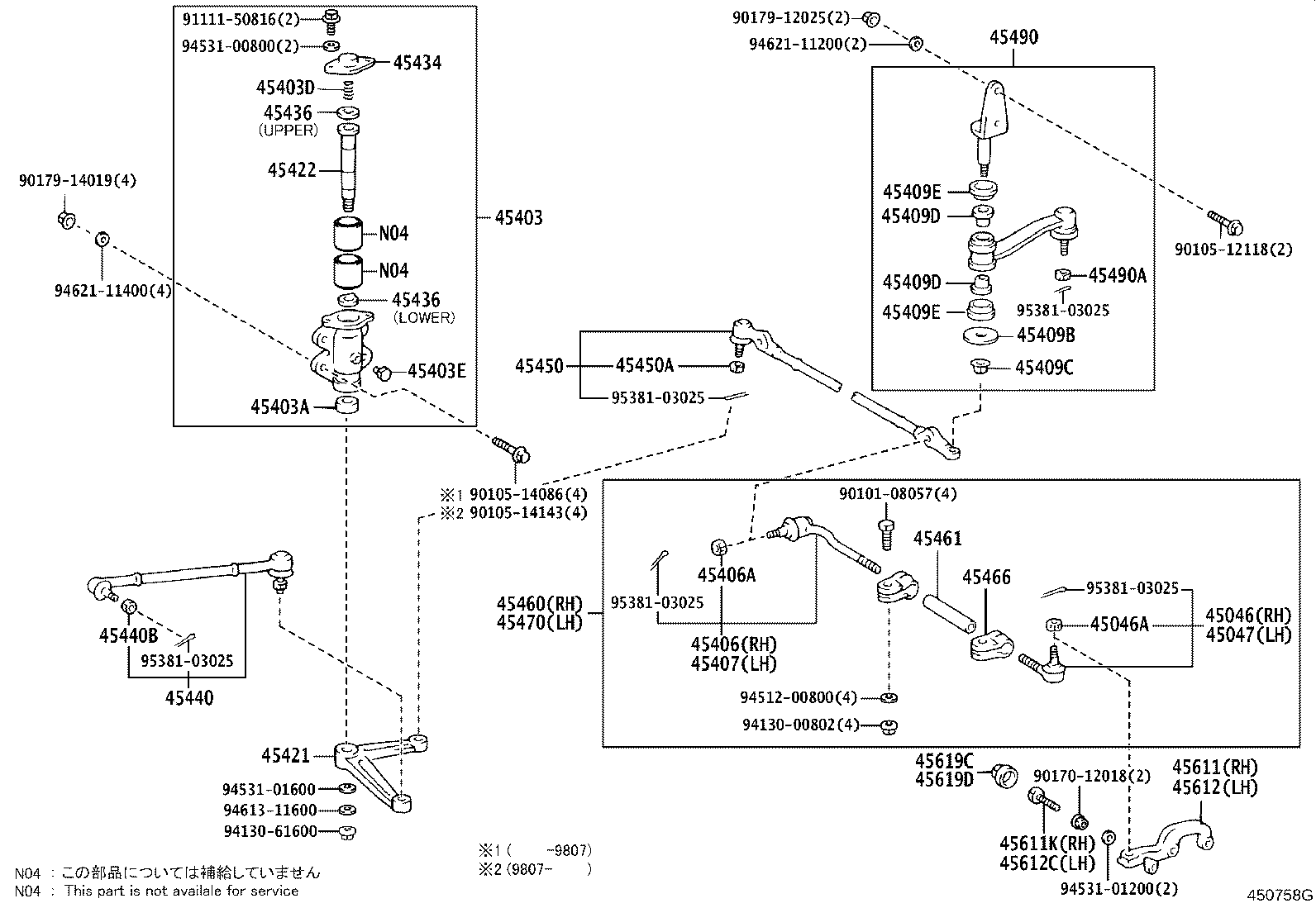

ILLUST NO. 3 OF 3(9610- )LY10#,11#,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29325 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45046-29315 |
LY20#,21#,YY201,211 |
1 | ||
| 45046-39235 |
LY10#,11#,YY101 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39235 |
LY10#,11#,YY101 |
1 | ||
| 45046-29325 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45047-29095 |
LY20#,21#,YY201,211 |
1 | ||
| 45403 - BRACKET SUB-ASSY, CENTER ARM | ||||
| 45403-26081 |
LY10#,11#,YY101 |
1 | ||
| 45403A - SEAL, OIL(FOR CENTER ARM BRACKET) | ||||
| 90311-25004 |
LY10#,11#,YY101 |
1 | ||
| 45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET) | ||||
| 90501-30369 |
LY10#,11#,YY101 |
1 | ||
| 45403E - PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT) | ||||
| 90345-06014 |
LY10#,11#,YY101 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-29175 |
LY10#,11#,YY101 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LY10#,11#,YY101 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-29175 |
LY10#,11#,YY101 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
LY10#,11#,YY101 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61401 |
LY10#,11#,YY101 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LY10#,11#,YY101 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LY10#,11#,YY101 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LY10#,11#,YY101 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LY10#,11#,YY101 |
2 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-26061 |
LY10#,11#,YY101 |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-26010 |
LY10#,11#,YY101 |
1 | ||
| 45434 - CAP, CENTER ARM BRACKET | ||||
| 45434-26011 |
LY10#,11#,YY101 |
1 | ||
| 45436 - SEAT, CENTER ARM SHAFT | ||||
| 45436-28010 |
LY10#,11#,YY101 下側 |
1 | ||
| 45436-26010 |
LY10#,11#,YY101 上側 |
1 | ||
| 45436 - SEAT, CENTER ARM SHAFT | ||||
| 45436-28010 |
LY10#,11#,YY101 下側 |
1 | ||
| 45436-26010 |
LY10#,11#,YY101 上側 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-29255 |
LY10#,11#,YY101 |
1 | ||
| 45440-29235 |
LY20#,21#,YY201,211 |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
LY20#,21#,YY201,211 |
2 | ||
| 90171-14042 |
LY10#,11#,YY101 |
2 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-29185 |
LY10#,11#,YY101 |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
LY10#,11#,YY101 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29415 |
LY10#,11#,YY101 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-25030 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 45465-35020 |
LY10#,11#,YY101 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LY10#,11#,YY101 |
4 | ||
| 45466-36020 |
LY20#,21#,YY201,211 |
2 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-29415 |
LY10#,11#,YY101 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-29515 |
LY10#,11#,YY101 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
LY10#,11#,YY101 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-25100 |
LY20#,21#,YY201,211 |
1 | ||
| 45611-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45611-26040 |
LY10#,11#,YY101 |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-12005 |
LY10#,11#,YY101 |
2 | ||
| 90106-12015 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-25070 |
LY20#,21#,YY201,211 |
1 | ||
| 45612-26040 |
LY10#,11#,YY101 |
1 | ||
| 45612-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-12005 |
LY10#,11#,YY101 |
2 | ||
| 90106-12015 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45619C - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-26020 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 45619D - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-26020 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-12118 | ||||
| 90105-14086 | ||||
| 90105-14143 | ||||
| 90170-12018 | ||||
| 90179-12025 | ||||
| 90179-14019 | ||||
| 91111-50816 | ||||
| 94130-00802 | ||||
| 94130-61600 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94531-01200 | ||||
| 94531-01600 | ||||
| 94613-11600 | ||||
| 94621-11200 | ||||
| 94621-11400 | ||||
| 95381-03025 | ||||

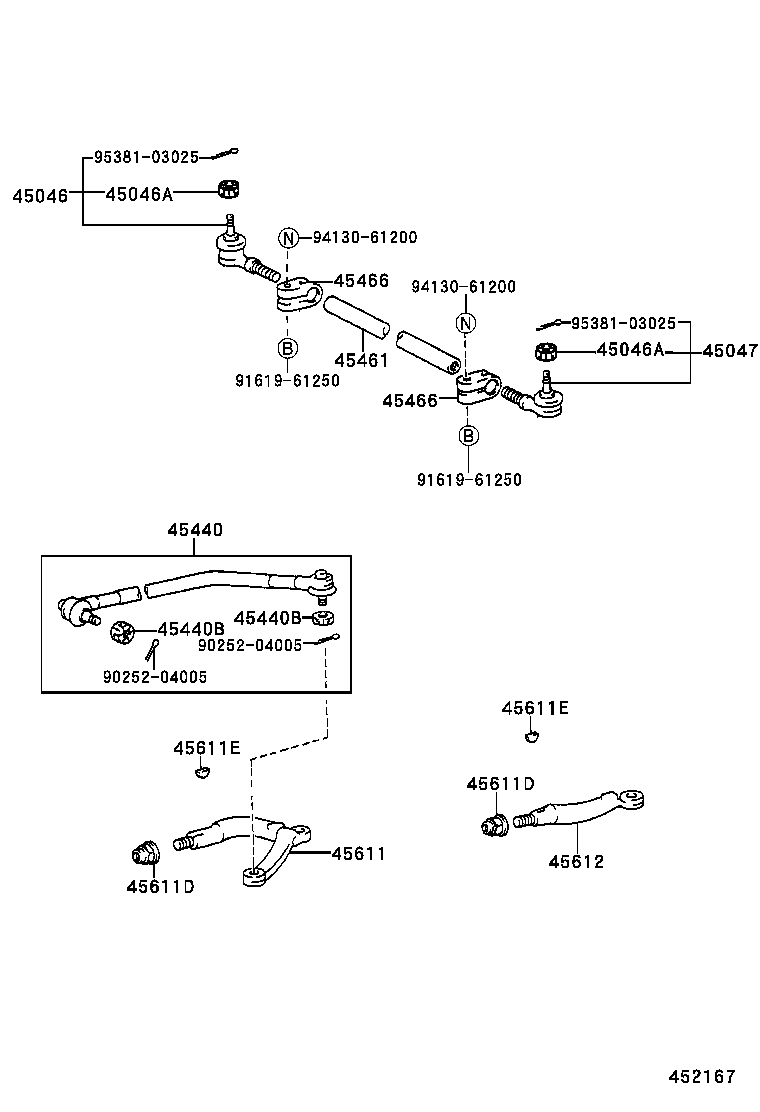

ILLUST NO. 3 OF 3(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29325 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45046-29315 |
LY20#,21#,YY201,211 |
1 | ||
| 45046-39235 |
LY10#,11#,YY101 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39235 |
LY10#,11#,YY101 |
1 | ||
| 45046-29325 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45047-29095 |
LY20#,21#,YY201,211 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-25100 |
LY20#,21#,YY201,211 |
1 | ||
| 45611-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45611-26040 |
LY10#,11#,YY101 |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-12005 |
LY10#,11#,YY101 |
2 | ||
| 90106-12015 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-25070 |
LY20#,21#,YY201,211 |
1 | ||
| 45612-26040 |
LY10#,11#,YY101 |
1 | ||
| 45612-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-12005 |
LY10#,11#,YY101 |
2 | ||
| 90106-12015 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45619C - COVER, STEERING KNUCKLE STOPPER, RH | ||||
| 45619-26020 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 45619D - COVER, STEERING KNUCKLE STOPPER, LH | ||||
| 45619-26020 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| Common parts | ||||
| 90105-14043 | ||||
| 90170-15001 | ||||
| 94130-61200 | ||||
| 95381-03025 | ||||
ILLUST NO. 2 OF 3(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-26012 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-26101 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-26010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
LY12#,13#,15#,16#,YY121,131 外側 |
1 | ||
| 90301-39003 |
LY12#,13#,15#,16#,YY121,131 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-43001 |
LY12#,13#,15#,16#,YY121,131 外側 |
1 | ||
| 90301-39003 |
LY12#,13#,15#,16#,YY121,131 内側 |
1 | ||
| 44206J - BUSH(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90386-30001 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-26012 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-26100 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30011 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-30007 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-30011 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44275F - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-41004 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-28010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29655 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29655 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
LY12#,13#,15#,16#,YY121,131 外径=41 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14005 |
LY12#,13#,15#,16#,YY121,131 外径=41 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-28010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23024 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-55016 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19018 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-55016 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| Common parts | ||||
| 91511-60825 | ||||

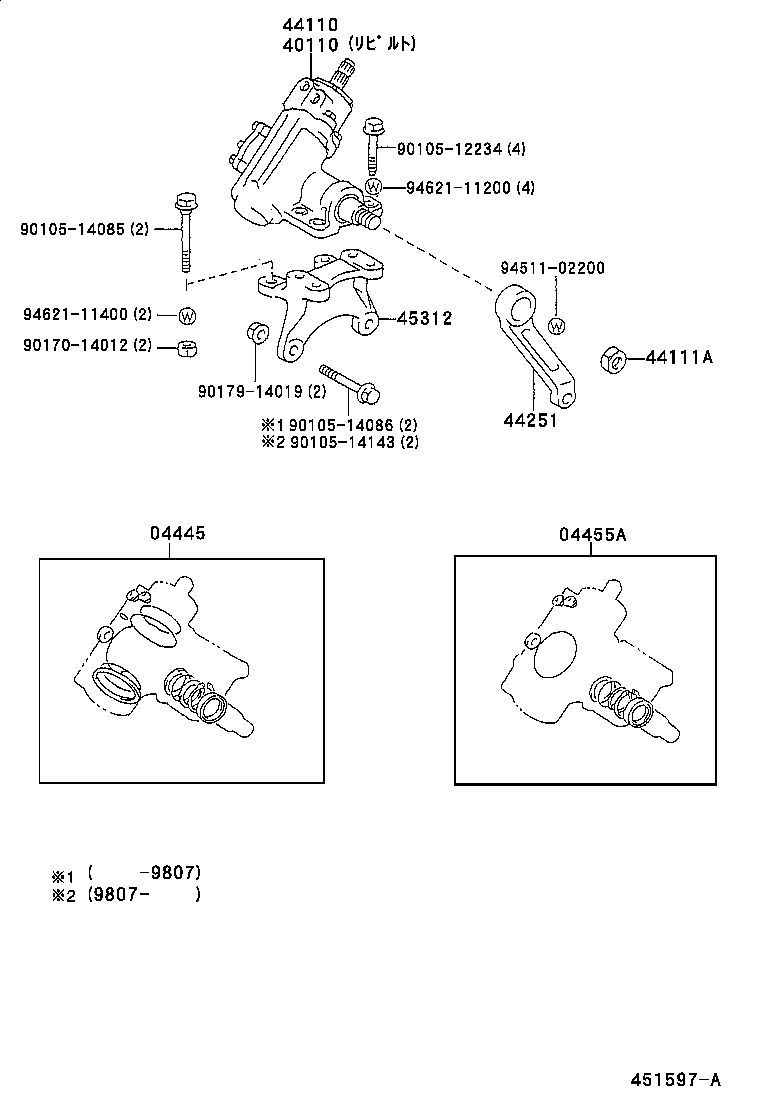

ILLUST NO. 1 OF 3(9610- )LY10#,11#,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-25060 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-25040 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 40110 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40110-25040 |
LY20#,21#,YY201,211 TOYODA KOKI |
1 | ||
| 40110-26050 |
LY10#,11#,YY101 TOYODA KOKI |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-26050 |
LY10#,11#,YY101 |
1 | ||
| 44110-25040 |
LY20#,21#,YY201,211 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-25221 |
LY211,YY211..WT;LY211,YY211..T2..ST;LY20#,212,YY201..T2,T4 |
1 | ||
| 45411-26100 |
LY10#,11#,YY101 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-25170 |
LY20#,21#,YY201,211 |
1 | ||
| 45312-26160 |
LY10#,11#,YY101 |
1 | ||
| Common parts | ||||
| 90105-12234 | ||||
| 90105-14085 | ||||
| 90105-14086 | ||||
| 90105-14143 | ||||
| 90170-14012 | ||||
| 90179-14019 | ||||
| 94511-02200 | ||||
| 94621-11200 | ||||
| 94621-11400 | ||||

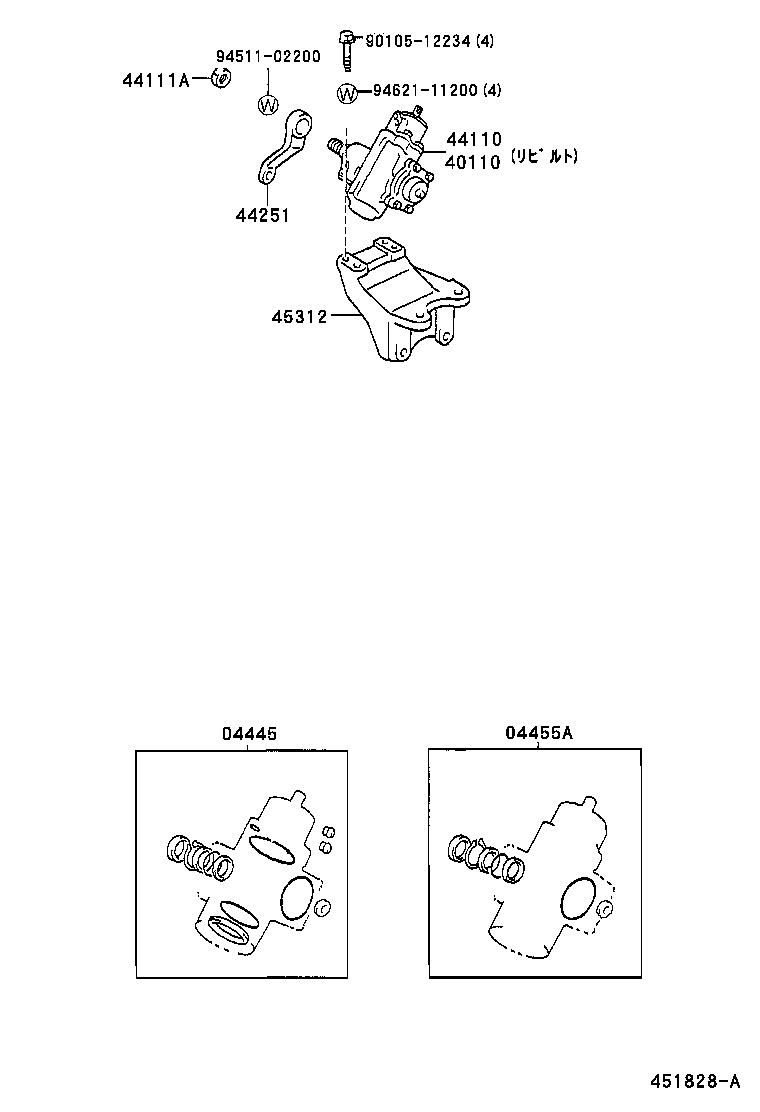

ILLUST NO. 1 OF 3(9505- )LY20#,21#,YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-25060 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-25040 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 40110 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40110-25040 |
LY20#,21#,YY201,211 TOYODA KOKI |
1 | ||
| 40110-26050 |
LY10#,11#,YY101 TOYODA KOKI |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-26050 |
LY10#,11#,YY101 |
1 | ||
| 44110-25040 |
LY20#,21#,YY201,211 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-25221 |
LY211,YY211..WT;LY211,YY211..T2..ST;LY20#,212,YY201..T2,T4 |
1 | ||
| 45411-26100 |
LY10#,11#,YY101 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-25170 |
LY20#,21#,YY201,211 |
1 | ||
| 45312-26160 |
LY10#,11#,YY101 |
1 | ||
| Common parts | ||||
| 90105-12234 | ||||
| 94511-02200 | ||||
| 94621-11200 | ||||
ILLUST NO. 3 OF 3(9505- )LY20#,21#,YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29325 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45046-29315 |
LY20#,21#,YY201,211 |
1 | ||
| 45046-39235 |
LY10#,11#,YY101 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39235 |
LY10#,11#,YY101 |
1 | ||
| 45046-29325 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45047-29095 |
LY20#,21#,YY201,211 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-29255 |
LY10#,11#,YY101 |
1 | ||
| 45440-29235 |
LY20#,21#,YY201,211 |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
LY20#,21#,YY201,211 |
2 | ||
| 90171-14042 |
LY10#,11#,YY101 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
LY20#,21#,YY201,211 |
2 | ||
| 90171-14042 |
LY10#,11#,YY101 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-25030 |
LY20#,21#,YY201,211..T1,T2,T3,TW2 |
1 | ||
| 45465-35020 |
LY10#,11#,YY101 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LY10#,11#,YY101 |
4 | ||
| 45466-36020 |
LY20#,21#,YY201,211 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LY10#,11#,YY101 |
4 | ||
| 45466-36020 |
LY20#,21#,YY201,211 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-25100 |
LY20#,21#,YY201,211 |
1 | ||
| 45611-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45611-26040 |
LY10#,11#,YY101 |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
LY20#,21#,YY201,211 |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
LY20#,21#,YY201,211 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
LY20#,21#,YY201,211 |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
LY20#,21#,YY201,211 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-25070 |
LY20#,21#,YY201,211 |
1 | ||
| 45612-26040 |
LY10#,11#,YY101 |
1 | ||
| 45612-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| Common parts | ||||
| 90252-04005 | ||||
| 91619-61250 | ||||
| 94130-61200 | ||||
| 95381-03025 | ||||

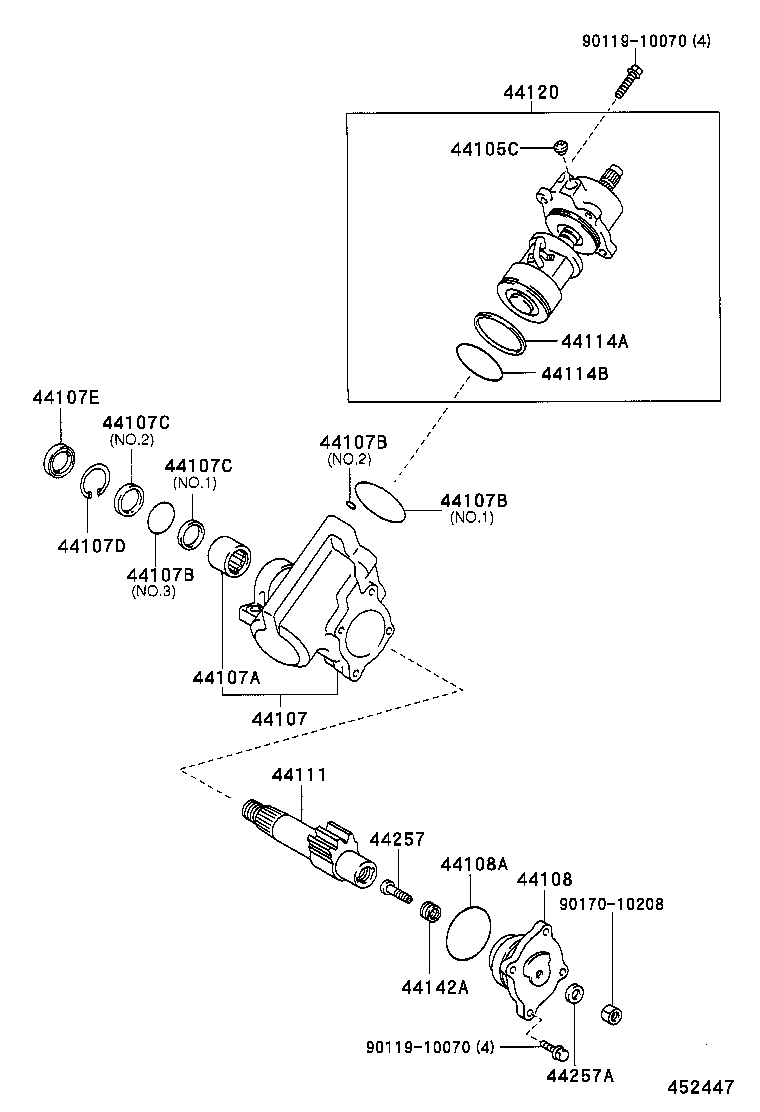

ILLUST NO. 2 OF 3(9505- )LY20#,21#,YY201,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LY20#,21#,YY201,211 |
1 | ||
| 90410-06006 |
LY10#,11#,YY101 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-25030 |
LY20#,21#,YY201,211 |
1 | ||
| 44107-26030 |
LY10#,11#,YY101 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LY10#,11#,20#,21#,YY101,201,211 内径=65.0,外径=70.0,NO.1 |
1 | ||
| 90301-33007 |
LY10#,11#,20#,21#,YY101,201,211 内径=33.7,外径=43.1,NO.3 |
1 | ||
| 96711-19010 |
LY10#,11#,20#,21#,YY101,201,211 外径=13.6,内径=9.8,NO.2 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LY10#,11#,20#,21#,YY101,201,211 内径=65.0,外径=70.0,NO.1 |
1 | ||
| 90301-33007 |
LY10#,11#,20#,21#,YY101,201,211 内径=33.7,外径=43.1,NO.3 |
1 | ||
| 96711-19010 |
LY10#,11#,20#,21#,YY101,201,211 外径=13.6,内径=9.8,NO.2 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LY10#,11#,20#,21#,YY101,201,211 内径=65.0,外径=70.0,NO.1 |
1 | ||
| 90301-33007 |
LY10#,11#,20#,21#,YY101,201,211 内径=33.7,外径=43.1,NO.3 |
1 | ||
| 96711-19010 |
LY10#,11#,20#,21#,YY101,201,211 外径=13.6,内径=9.8,NO.2 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
LY10#,11#,20#,21#,YY101,201,211 内径=32,外径=42,NO.2 |
1 | ||
| 90562-31003 |
LY10#,11#,20#,21#,YY101,201,211 内径=31.7,外径=34.1,厚さ=5,NO.1 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
LY10#,11#,20#,21#,YY101,201,211 内径=32,外径=42,NO.2 |
1 | ||
| 90562-31003 |
LY10#,11#,20#,21#,YY101,201,211 内径=31.7,外径=34.1,厚さ=5,NO.1 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 44111-60010 |
LY10#,11#,YY101 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-26040 |
LY10#,11#,YY101 |
1 | ||
| 44120-25030 |
LY20#,21#,YY201,211 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60030 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 45357-60010 |
LY101,111,201,211,YY101,201,211 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90170-10208 | ||||

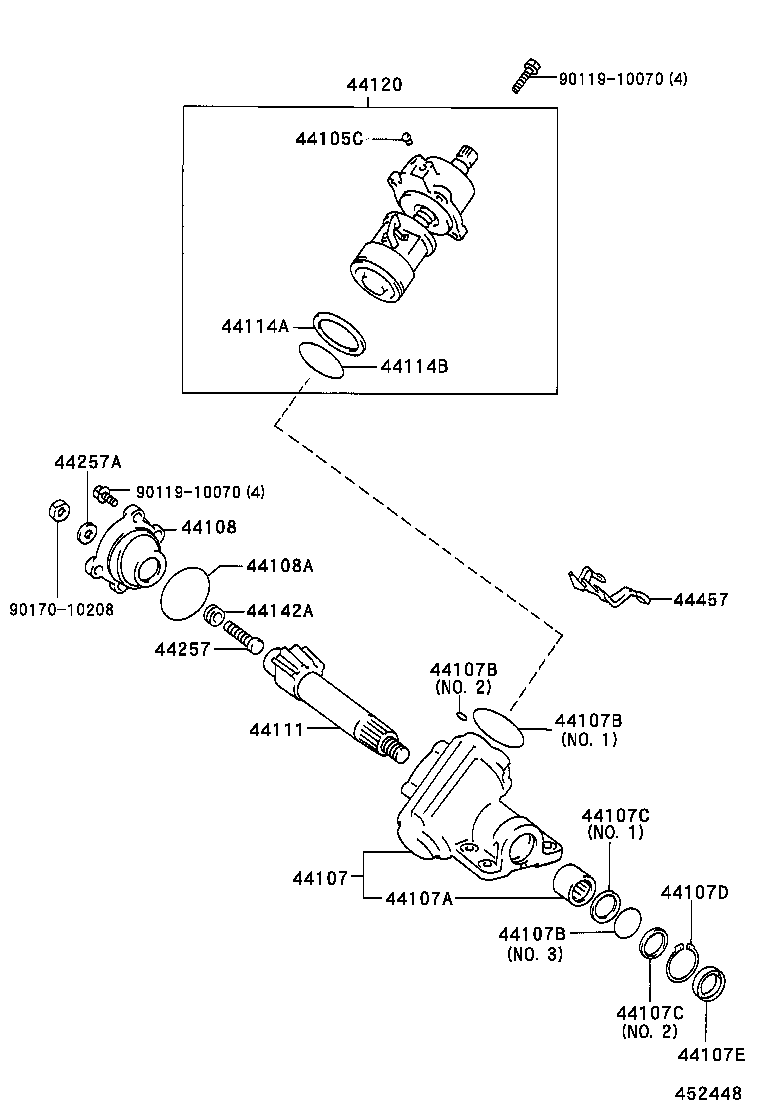

ILLUST NO. 2 OF 3(9610- )LY10#,11#,YY101
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LY20#,21#,YY201,211 |
1 | ||
| 90410-06006 |
LY10#,11#,YY101 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-25030 |
LY20#,21#,YY201,211 |
1 | ||
| 44107-26030 |
LY10#,11#,YY101 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LY10#,11#,20#,21#,YY101,201,211 内径=65.0,外径=70.0,NO.1 |
1 | ||
| 90301-33007 |
LY10#,11#,20#,21#,YY101,201,211 内径=33.7,外径=43.1,NO.3 |
1 | ||
| 96711-19010 |
LY10#,11#,20#,21#,YY101,201,211 外径=13.6,内径=9.8,NO.2 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LY10#,11#,20#,21#,YY101,201,211 内径=65.0,外径=70.0,NO.1 |
1 | ||
| 90301-33007 |
LY10#,11#,20#,21#,YY101,201,211 内径=33.7,外径=43.1,NO.3 |
1 | ||
| 96711-19010 |
LY10#,11#,20#,21#,YY101,201,211 外径=13.6,内径=9.8,NO.2 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LY10#,11#,20#,21#,YY101,201,211 内径=65.0,外径=70.0,NO.1 |
1 | ||
| 90301-33007 |
LY10#,11#,20#,21#,YY101,201,211 内径=33.7,外径=43.1,NO.3 |
1 | ||
| 96711-19010 |
LY10#,11#,20#,21#,YY101,201,211 外径=13.6,内径=9.8,NO.2 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
LY10#,11#,20#,21#,YY101,201,211 内径=32,外径=42,NO.2 |
1 | ||
| 90562-31003 |
LY10#,11#,20#,21#,YY101,201,211 内径=31.7,外径=34.1,厚さ=5,NO.1 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-32001 |
LY10#,11#,20#,21#,YY101,201,211 内径=32,外径=42,NO.2 |
1 | ||
| 90562-31003 |
LY10#,11#,20#,21#,YY101,201,211 内径=31.7,外径=34.1,厚さ=5,NO.1 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-25010 |
LY20#,21#,YY201,211 |
1 | ||
| 44111-60010 |
LY10#,11#,YY101 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-26040 |
LY10#,11#,YY101 |
1 | ||
| 44120-25030 |
LY20#,21#,YY201,211 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60030 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 45357-60010 |
LY101,111,201,211,YY101,201,211 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LY10#,11#,20#,21#,YY101,201,211 |
1 | ||
| 44457 - BRACKET, TUBE SUPPORT, NO.1 | ||||
| 44457-26050 |
LY10#,11#,YY101 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90170-10208 | ||||
ILLUST NO. 1 OF 3(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-27013 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-27012 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-26132 |
LY12#,13#,15#,16#,YY121,131 TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-26132 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-26011 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-26011 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-28010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-26010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| Common parts | ||||
| 90119-12135 | ||||
| 90119-12136 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
