YY211-TGMFS (1995)
Toyota Dyna 150/Toyoace G15

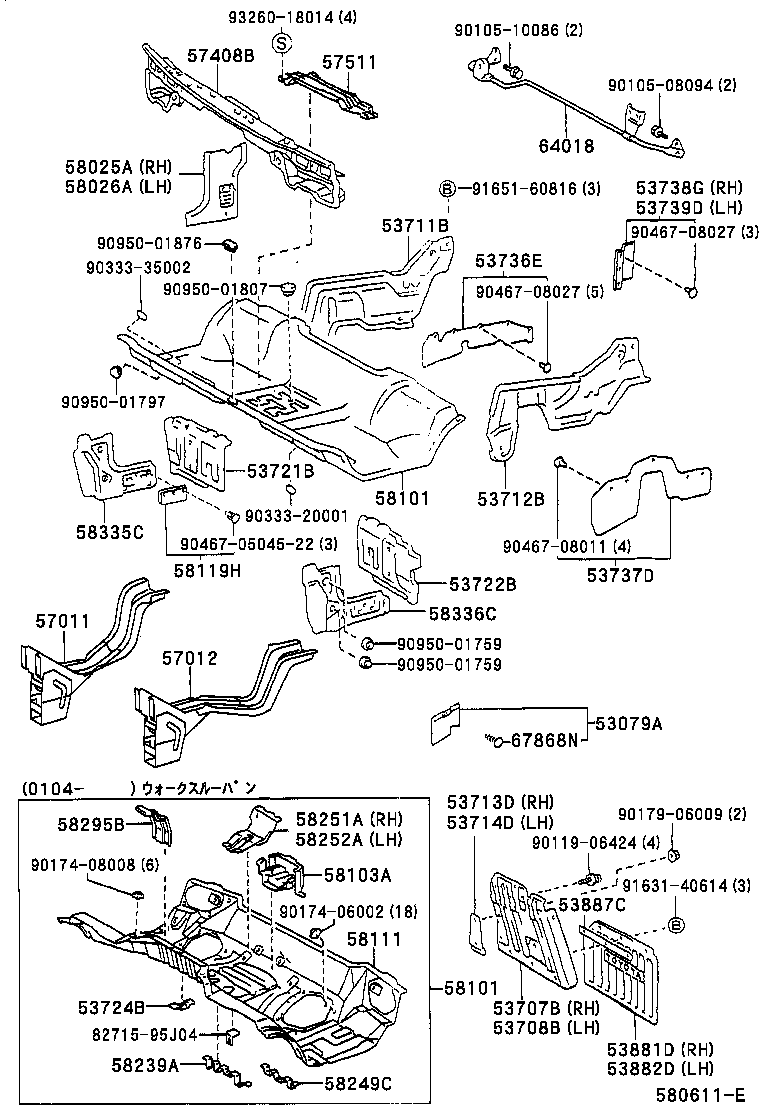

ILLUST NO. 1 OF 2(9505- )LY20#,21#,YY201,211..T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER | ||||
| 53079-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-95A01 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-95A02 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53713D - EXTENSION, FRONT FENDER APRON, RH | ||||
| 53747-95011 |
LY20#,21#,YY201,211..T1,T2,T3,T4 |
1 | ||
| 53714D - EXTENSION, FRONT FENDER APRON, LH | ||||
| 53748-95011 |
LY20#,21#,YY201,211..T1,T2,T3,T4 |
1 | ||
| 53721B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53721-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53722B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53722-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-25030 |
LY20#,21#,YY201,211 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-25030 |
LY20#,21#,YY201,211 |
1 | ||
| 53738G - SEAL, FRONT FENDER APRON, REAR RH | ||||
| 53738-25020 |
YY201,211 |
1 | ||
| 53739D - SEAL, FRONT FENDER APRON TO FRAME, REAR | ||||
| 53739-25020 |
YY201,211 |
1 | ||
| 53739-25020 |
LY20#,21# |
2 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 53887C - PLATE, FRONT MUDGUARD | ||||
| 53887-95010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
2 | ||
| 57011 - MEMBER SUB-ASSY, FLOOR, RH | ||||
| 57011-25020 |
LY20#,21#,YY201,211 |
1 | ||
| 57012 - MENBER SUB-ASSY | ||||
| 57012-25020 |
LY20#,21#,YY201,211 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37021 |
LY211;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37021 |
LY211;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58271-37011 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58272-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-25050 |
LY201,211,YY201,211..MTM |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-25050 |
LY201,211,YY201,211..MTM |
1 | ||
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-95400 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 64018 - BAR SUB-ASSY, BODY | ||||
| 64018-95413 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 67868N - CLIP, DOOR WETHERSTRIP, RH | ||||
| 67868-95401 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
8 | ||
| Common parts | ||||
| 82715-95J04 | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90119-06424 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||
| 90179-06009 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90467-0504522 | ||||
| 90467-08011 | ||||
| 90467-08027 | ||||
| 90950-01759 | ||||
| 90950-01797 | ||||
| 90950-01807 | ||||
| 90950-01876 | ||||
| 91631-40614 | ||||
| 91651-60816 | ||||
| 93260-18014 | ||||

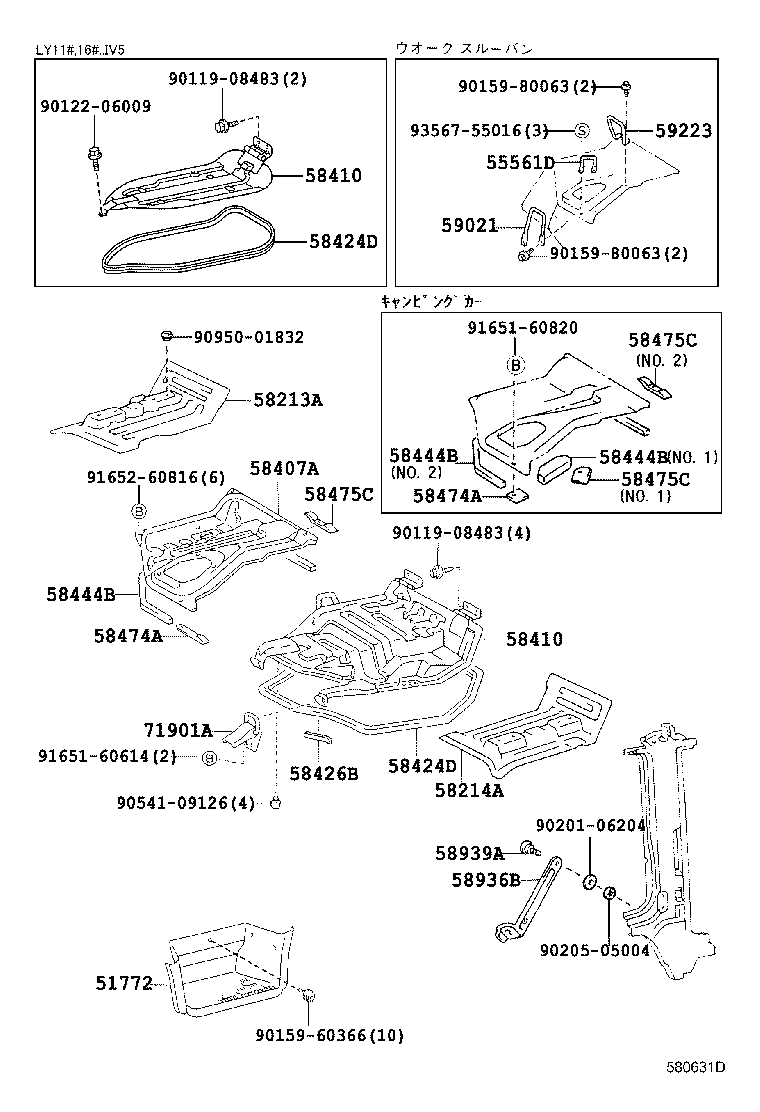

ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51772 - PLATE, STEP | ||||
| 51772-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 左側 |
1 | ||
| 51771-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 右側 |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-25020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-25020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-25020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95405 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
LY112,162..CBU,IV3;LY10#,111,12#,13#,15#,161,20#,21#,YY101,121,131,201,211 |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95401 |
LY112,162..CBU,IV3;LY10#,111,12#,13#,15#,161,20#,21#,YY101,121,131,201,211 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95A01 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| 58936B - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95J02C0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLACK,TRIM1# |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71901-9570401 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 BLACK,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08483 | ||||
| 90122-06009 | ||||
| 90159-60366 | ||||
| 90159-80063 | ||||
| 90201-06204 | ||||
| 90205-05004 | ||||
| 90541-09126 | ||||
| 90950-01832 | ||||
| 91651-60614 | ||||
| 91651-60820 | ||||
| 91652-60816 | ||||
| 93567-55016 | ||||
