YY211-TGMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY10#,11#,20#,21#,YY101,201,211..T1,T2,T3,TW1,TW2

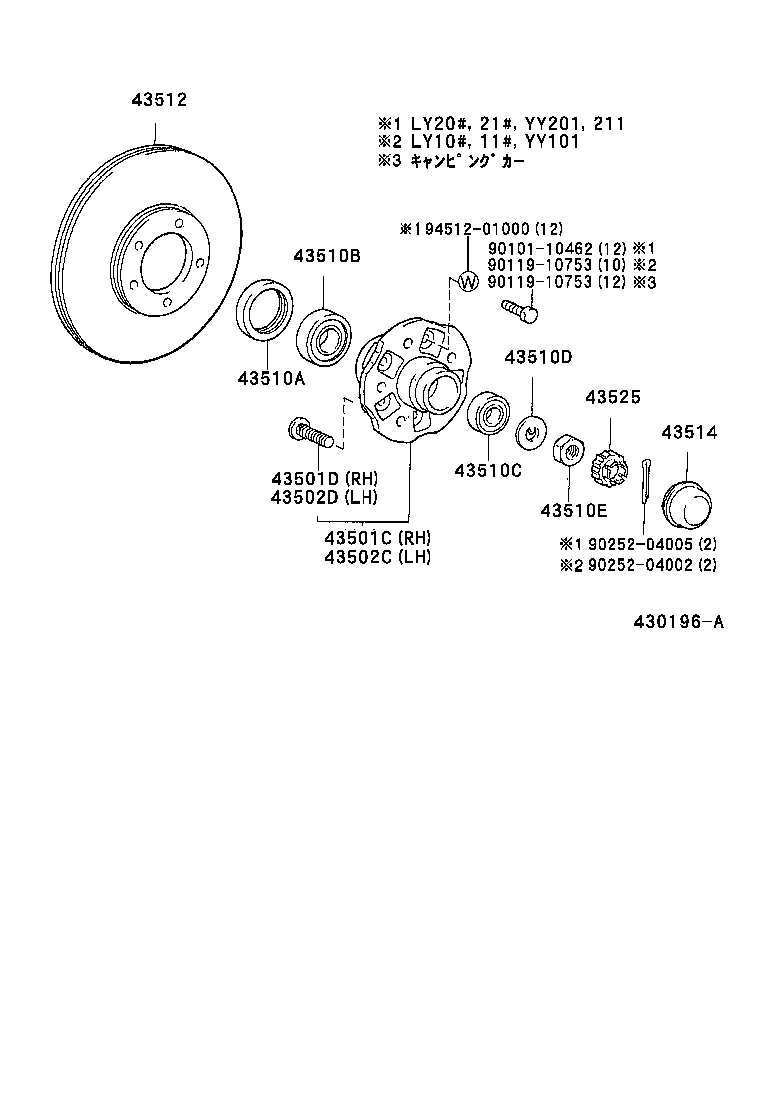

Click highlighted areas on diagram

diagram 43501C 43501D 43502C 43502D 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9010110462 9011910753 9011910753 9025204002 9025204005 9451201000
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-25010

LY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02047

LY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT

 6
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-25010

LY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02047

LY20#,212,YY201..T2;LY211,YY211..T2..ST;LY211,YY211..(T2,TW2)..WT

 6
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50003

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90366-35004

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-22007

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-23004

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-22003

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43512 - DISC, FRONT
43512-25020

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43514 - CAP, FRONT HUB GREASE
43514-25010

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-25010

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
Common parts
90101-10462
90119-10753
90252-04002
90252-04005
94512-01000
