YY211-PSMDS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY20#,21#,YY101,121,131,201,211

Click highlighted areas on diagram

diagram 74042 74042 74411B 74412 74413 74413 74413 74413 74417 74417 74417 74417 74417 74421 74421 74453A 74453A 74453A 74453A 74473 74473 74473 74474 74474 9011908676 9011908676 9011910531 9011910571 9011910571 9017906158 9017906158 9017908141 9017908141 91645C1032 91645C1032 91645C1032 91645C1032 9413000802 9413001002 9413001002 9413001002 9413001002 9413001002
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-25041

LY201,21#..TW2

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74042 - BRACKET SUB-ASSY, BATTERY
74042-25041

LY201,21#..TW2

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74411B - BRACKET, BATTERY, FRONT
74411-25011

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74412 - BRACKET, BATTERY, REAR
74412-25011

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74421 - HANGER, BATTERY
74421-26010

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74421-26020

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74421 - HANGER, BATTERY
74421-26010

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74421-26020

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74473 - SPACER, BATTERY
74473-36050

YY101,121,131,201,211..CBR

 2
74473 - SPACER, BATTERY
74473-36050

YY101,121,131,201,211..CBR

 2
74473 - SPACER, BATTERY
74473-36050

YY101,121,131,201,211..CBR

 2
Common parts
90119-08676
90119-10531
90119-10571
90179-06158
90179-08141
91645-C1032
94130-00802
94130-01002

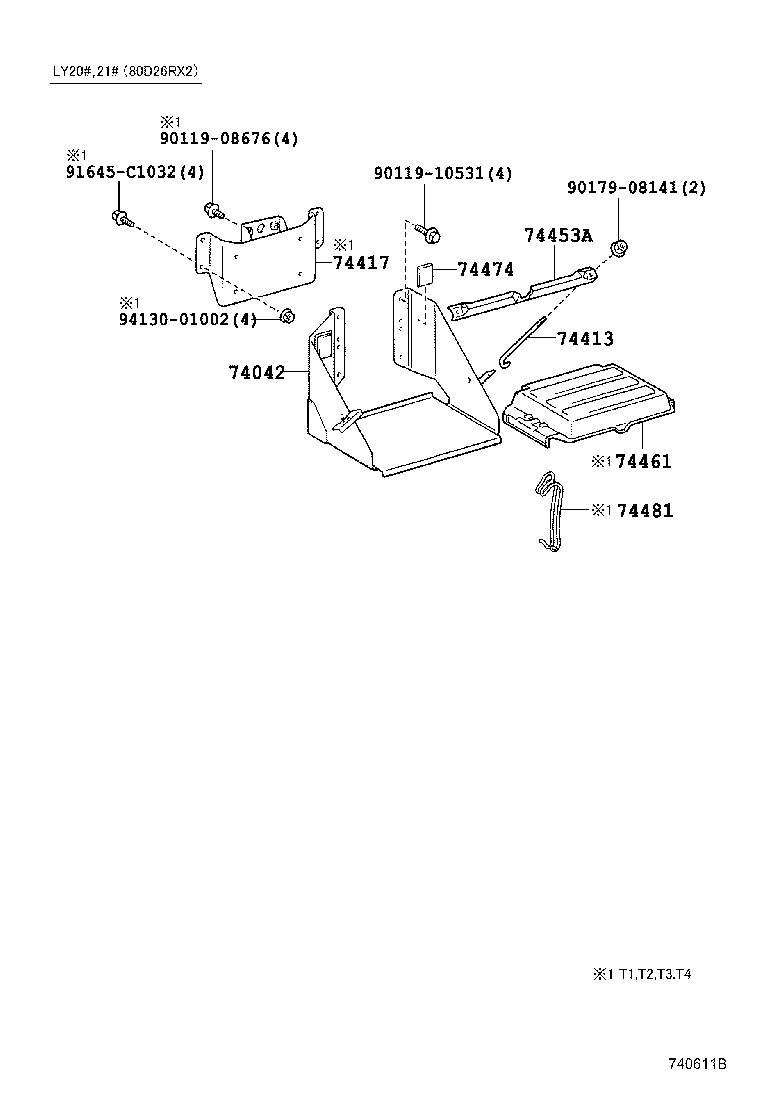

(9505- )LY20#,21#

Click highlighted areas on diagram

diagram 74042 74413 74417 74453A 74461 74474 74481 9011908676 9011910531 9017908141 91645C1032 9413001002
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-25041

LY201,21#..TW2

ｱﾘ(ﾊﾞﾂﾃﾘ=80D26R X2)

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
Common parts
90119-08676
90119-10531
90179-08141
91645-C1032
94130-01002

(9505- )LY10#,11#,12#,13#,15#,16#,YY101,121,131

Click highlighted areas on diagram

diagram 74411B 74412 74413 74413 74413 74413 74413 74413 74413 74413 74417 74417 74417 74421 74421 74421 74421 74453A 74453A 74453A 74453A 74473 74473 9011908676 9011908676 9011908676 9011910571 9011910571 9011910571 9011910571 9017906158 9017906158 9017906158 9017908141
Part # Description Qty Price
74411B - BRACKET, BATTERY, FRONT
74411-25011

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74412 - BRACKET, BATTERY, REAR
74412-25011

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74413 - BOLT, BATTERY CLAMP
74451-25020

YY211..CBR;YY131..IV3;YY131..TS..15T;YY131..T2..ST..CBU;YY131..(T3,TW2)..CBU;LY101,111,121,131,151,161,201,211,YY101,121,201..MTM..(CBR,DSL)

ﾎﾞﾙﾄ径=M6

 2
74451-36070

LY131,211..T2..ST..IV3;LY131,211..T2..MTM..CBU;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,151,161,201..MTM..DSL

ﾎﾞﾙﾄ径=M8

 2
74421 - HANGER, BATTERY
74421-26010

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74421-26020

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74421 - HANGER, BATTERY
74421-26010

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74421-26020

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74421 - HANGER, BATTERY
74421-26010

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74421-26020

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74421 - HANGER, BATTERY
74421-26010

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74421-26020

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74453A - BAR, BATTERY SET PLATE
74453-25090

YY211..CBR;LY101,111,121,131,151,161,201,211,YY101,121,131,201..MTM..(CBR,DSL)

ｱﾘ(55D23R ﾊﾞﾂﾃﾘ) OR ｱﾘ(75D26R ﾊﾞﾂﾃﾘ)

 1
74453-25080

YY201..WT;YY201..ST..15T;YY121,131,211..CBR

 1
74473 - SPACER, BATTERY
74473-36050

YY101,121,131,201,211..CBR

 2
74473 - SPACER, BATTERY
74473-36050

YY101,121,131,201,211..CBR

 2
Common parts
90119-08676
90119-10571
90179-06158
90179-08141
