YY211-PGMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )CBR

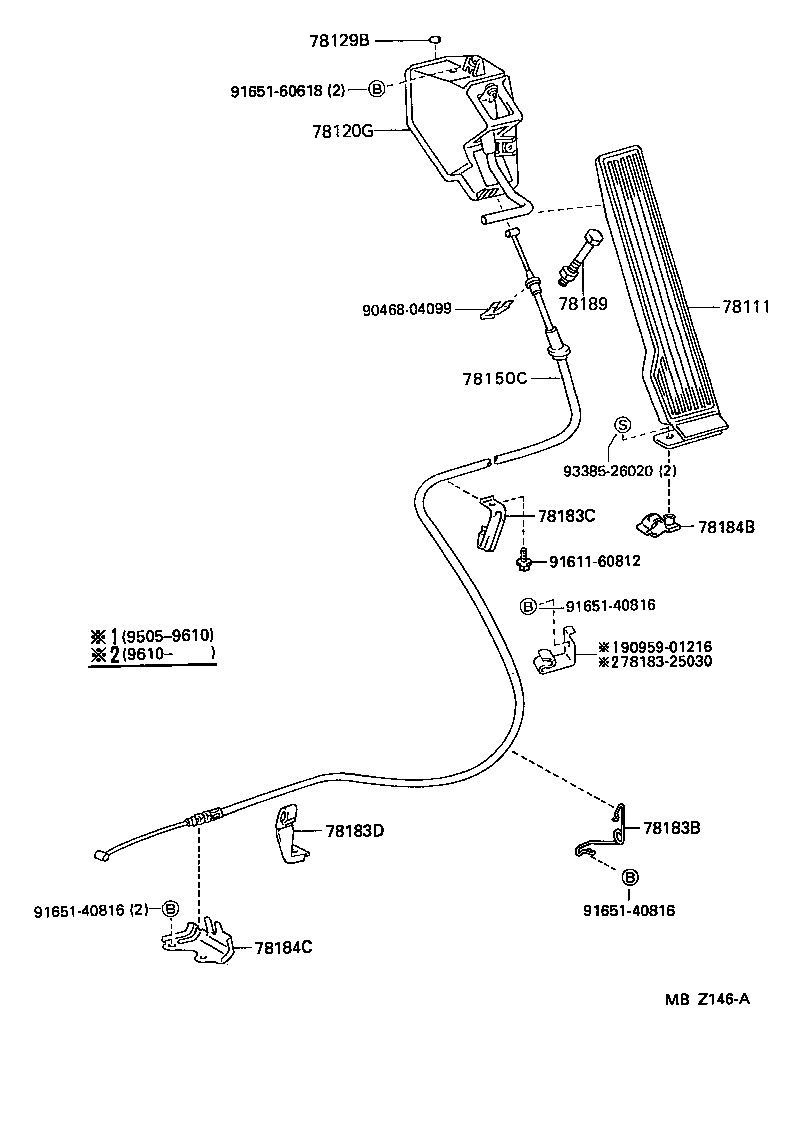

Click highlighted areas on diagram

diagram 78111 78120G 78129B 78150C 7818325030 78183B 78183C 78183D 78184B 78184C 78189 9046804099 9095901216 9161160812 9165140816 9165140816 9165140816 9165160618 9338526020
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78110-95410

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00

YY101,121,131,201,211..CBR

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-25021

YY201,211..CBR

 1
78150-25041

LY20#,21#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-25010

LY20#,21#,YY101,121,131,201,211

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-25020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78183-95A10

YY101,121,131,201,211..CBR

 1
78183-95011

LY20#,21#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78183-95406

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
78184-25020

YY101,121,131,201,211..MTM..CBR

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95404

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL

 1
Common parts
78183-25030
90468-04099
90959-01216
91611-60812
91651-40816
91651-60618
93385-26020
