YY211-PGMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3Y#..YY201,211

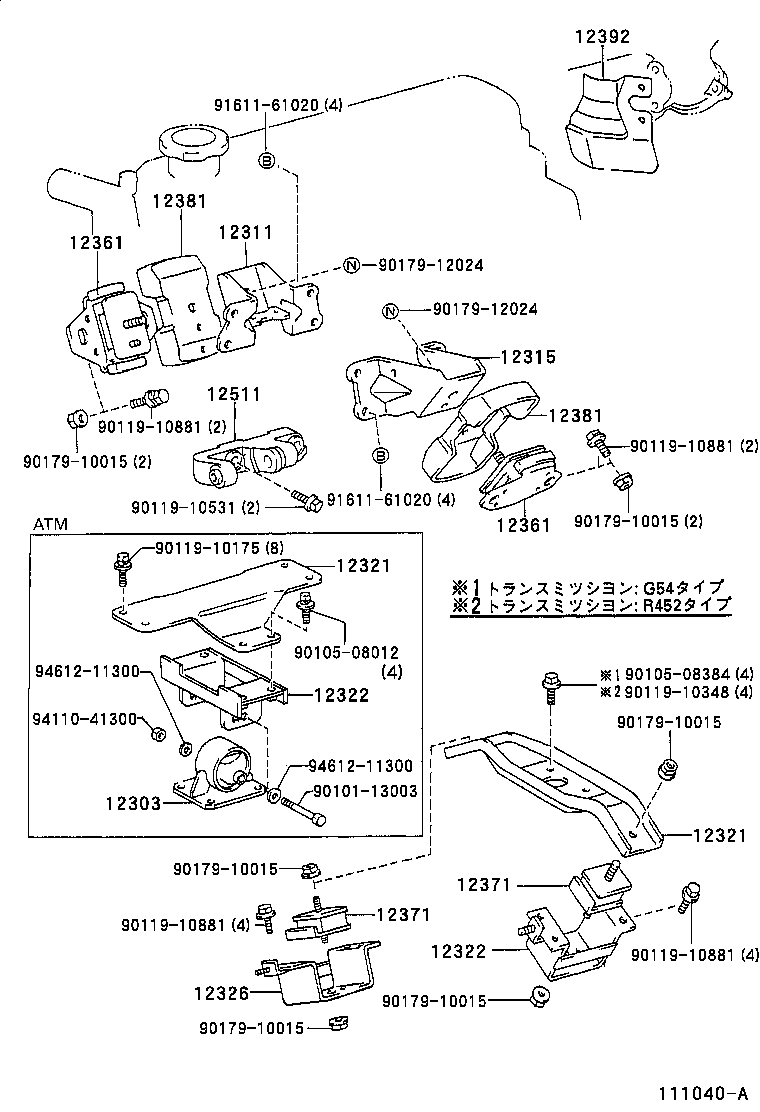

Click highlighted areas on diagram

diagram 12303 12311 12315 12321 12321 12322 12322 12326 12361 12361 12371 12371 12381 12381 12392 12511 9010113003 9010508012 9010508384 9011910175 9011910348 9011910531 9011910881 9011910881 9011910881 9011910881 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9017912024 9017912024 9161161020 9161161020 9411041300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

3Y#..YY101,121,131,201,211

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

3Y#..YY101,121,131,201,211

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

3Y..YY201..WT;3Y#..YY211..MTM;3Y..YY201..ST..15T

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-73010

3Y..YY201..WT;3Y#..YY211..MTM;3Y..YY201..ST..15T

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

3Y#..YY201,211..MTM

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-71070

3Y#..YY201,211..MTM

 1
12326 - BRACKET, ENGINE MOUNTING STAY
12326-71010

3Y#..YY201,211..MTM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

3Y#..YY101,201,211

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

3Y#..YY101,201,211

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3Y#..YY201,211..MTM

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54070

3Y#..YY201,211..MTM

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

3Y#..YY101,201,211

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

3Y#..YY101,201,211

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

3Y#..YY101,121,131,201,211

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

3Y#..YY101,121,131,201,211

 1
Common parts
90101-13003
90105-08012
90105-08384
90119-10175
90119-10348
90119-10531
90119-10881
90179-10015
90179-12024
91611-61020
94110-41300
94612-11300
