YY201-TSMDS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )CBR,LPG

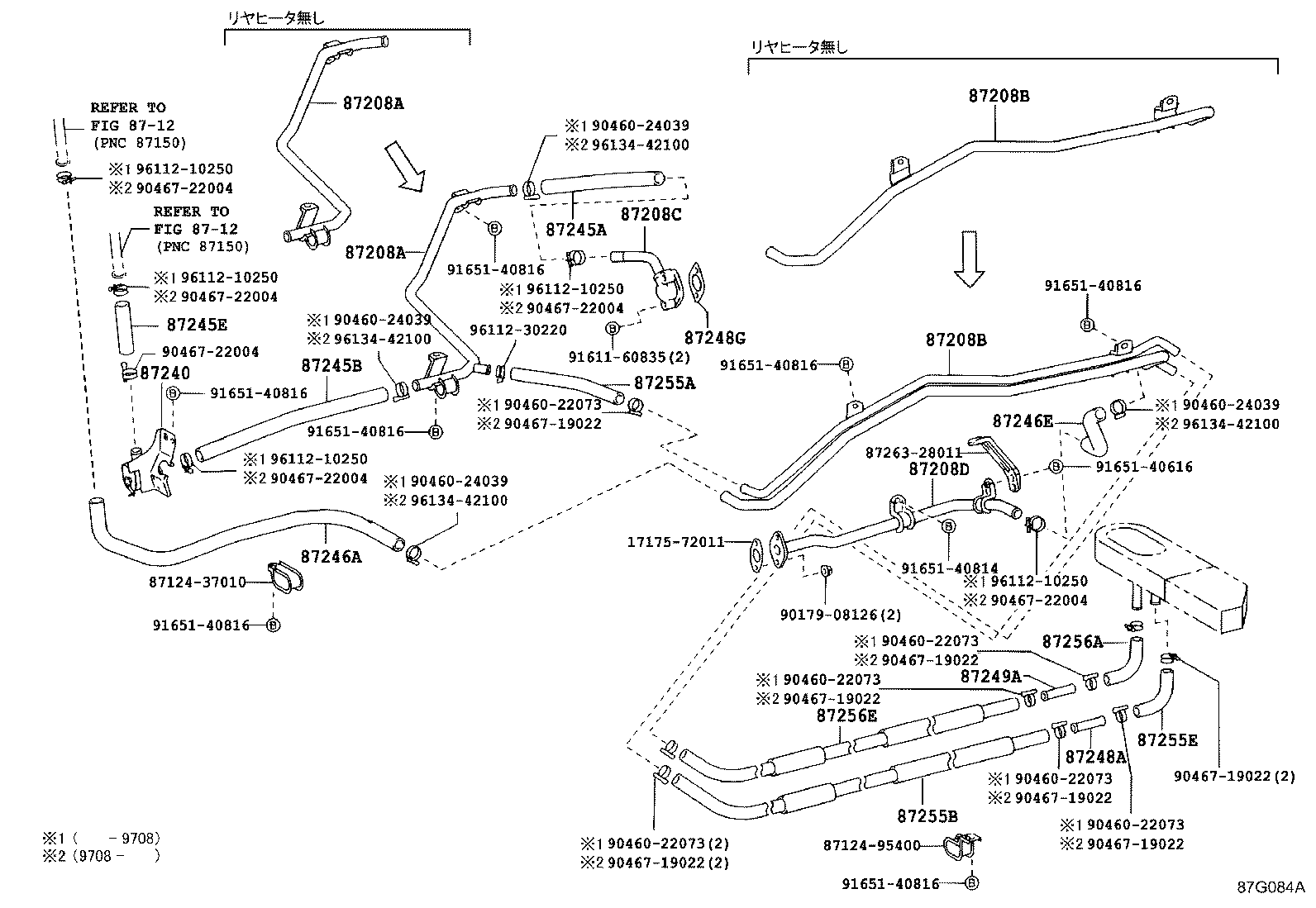

Click highlighted areas on diagram

diagram 1717572011 8712 8712 8712437010 8712495400 87208A 87208A 87208B 87208B 87208C 87208D 87240 87245A 87245B 87245E 87246A 87246E 87248A 87248G 87249A 87255A 87255B 87255E 87256A 87256E 8726328011 9017908126 9046022073 9046022073 9046022073 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611230220 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-25050

LY16#,YY101,121,131,201,211..CBR,LPG

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-25050

LY16#,YY101,121,131,201,211..CBR,LPG

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-25060

YY201,211

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-25060

YY201,211

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-28500

LY16#,YY101,121,131,201,211..CBR,LPG

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-28021

LY16#,YY101,121,131,201,211..CBR,LPG

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

LY10#,11#,20#,21#

*H,L=250

 1
99556-30300

LY16#,YY101,121,131,201,211..CBR,LPG

*H,L=280

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30500

LY16#,YY101,121,131,201,211..CBR,LPG

*H,L=380

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

*H,L=90

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25080

YY201,211

長さ=740

 1
99556-31000

LY161..ATM..1T;LY102,112,132,152,162,212..TW1,TW2;LY16#,YY101,121,131,201,211..CBR,LPG

*H,L=740

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

LY10#,11#,20#,21#

*H,L=250

 1
87245-25090

YY101,201,211

 1
87248G - GASKET, WATER INLET PIPE
11493-71011

YY101,121,131,201,211

 1
Common parts
17175-72011
87124-37010
87124-95400
87263-28011
90179-08126
90460-22073
90460-24039
90467-19022
90467-22004
91611-60835
91651-40616
91651-40814
91651-40816
96112-10250
96112-30220
96134-42100
Linked diagrams
8712
