YY201-TLMGS (1995)
Toyota Dyna 150/Toyoace G15

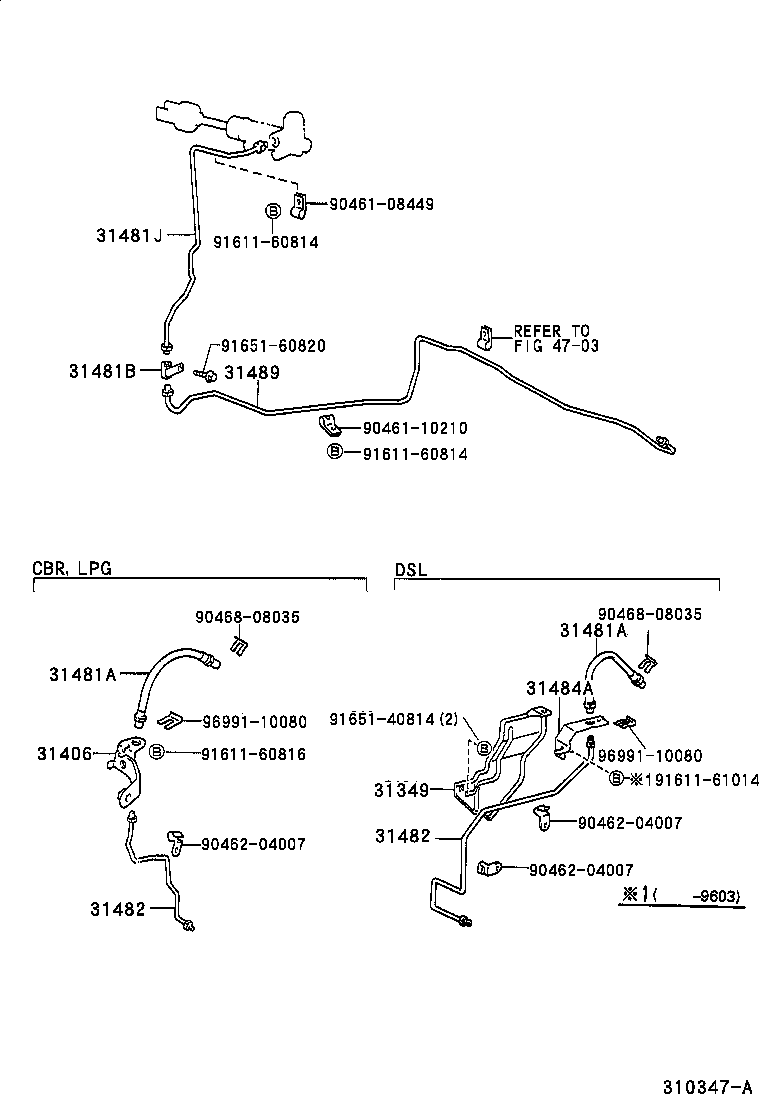

ILLUST NO. 2 OF 2(9505-9905)LY101,111,121,131,151,161,201,211,YY101,201,211..MTM ; (9905- )LY202,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE | ||||
| 31406-26021 |
LY16#,YY101,201,211..MTM..(CBR,LPG) |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01052 |
LY16#,YY101,201,211..MTM..(CBR,LPG) |
1 | ||
| 96817-50310 |
LY10#,11#,20#,21#..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01052 |
LY16#,YY101,201,211..MTM..(CBR,LPG) |
1 | ||
| 96817-50310 |
LY10#,11#,20#,21#..MTM |
1 | ||
| 31481B - WAY(FOR CLUTCH TUBE) | ||||
| 90412-12050 |
LY20#,21#,YY201,211..MTM |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-25130 |
LY20#,21#,YY201,211..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-25091 |
YY201..WT;YY201..ST..15T;LY16#,YY211..MTM..(CBR,LPG) |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-25091 |
YY201..WT;YY201..ST..15T;LY16#,YY211..MTM..(CBR,LPG) |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-25100 |
LY20#,21#,YY201,211..MTM |
1 | ||
| Common parts | ||||
| 90461-08449 | ||||
| 90461-10210 | ||||
| 90462-04007 | ||||
| 90468-08035 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-61014 | ||||
| 91651-40814 | ||||
| 91651-60820 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 4703 | ||||

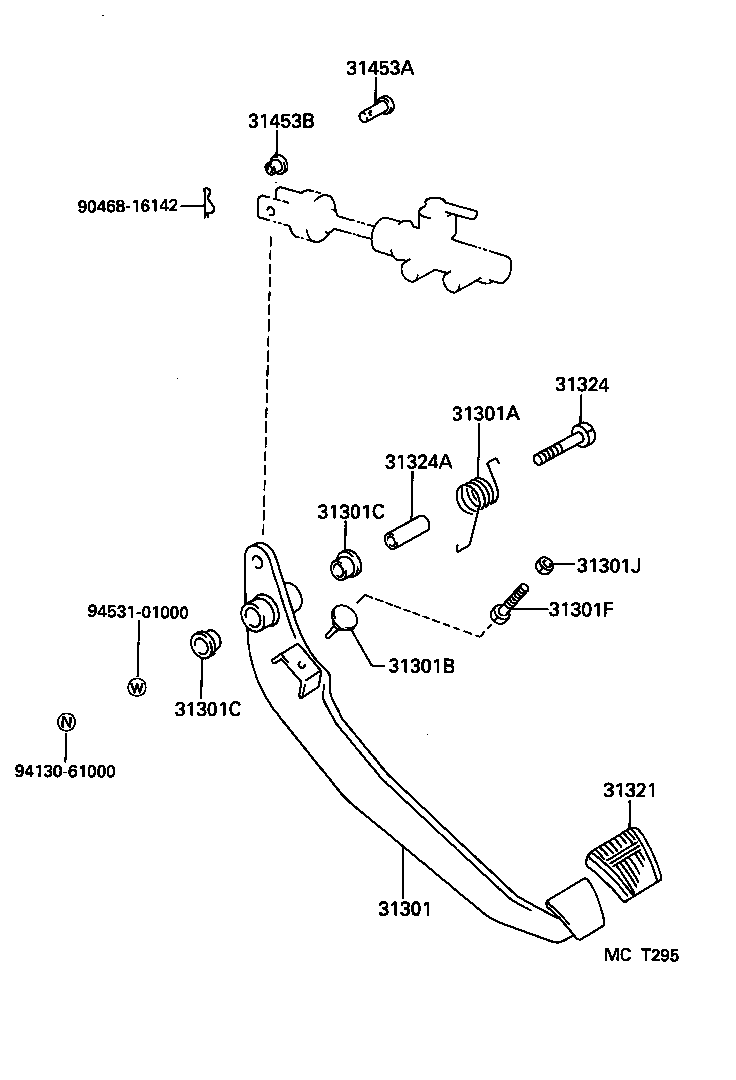

ILLUST NO. 1 OF 2(9505- )MTM..CBR,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37090 |
LY16#,YY101,121,131,201,211..MTM..(CBR,LPG) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
LY16#,YY101,121,131,201,211..MTM..(CBR,LPG) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
