YY201-TLMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

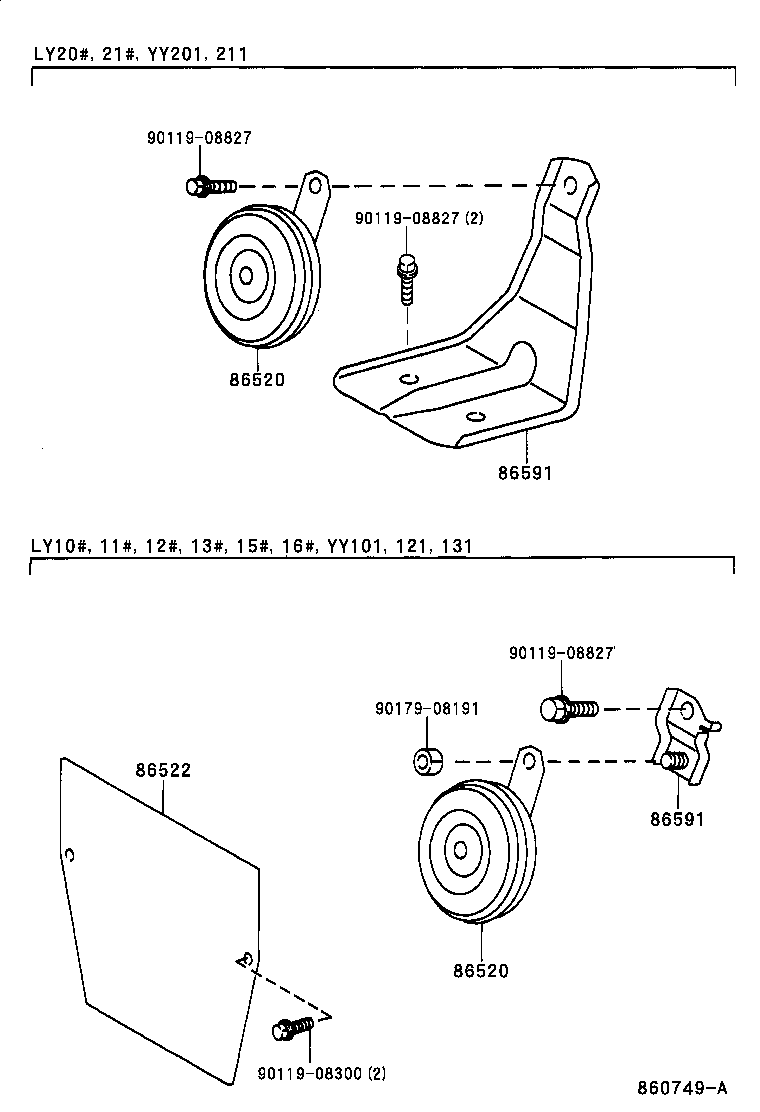

Click highlighted areas on diagram

diagram 86520 86520 86522 86591 86591 9011908300 9011908827 9011908827 9011908827 9017908191
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-25100

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

NIPPONDENSO

 1
86520-25110

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

MARUKO

 1
86520 - HORN ASSY, LOW PITCHED
86520-25100

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

NIPPONDENSO

 1
86520-25110

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

MARUKO

 1
86591 - BRACKET, HORN
86591-95011

LY20#,21#,YY201,211

 1
86591 - BRACKET, HORN
86591-95011

LY20#,21#,YY201,211

 1
Common parts
90119-08300
90119-08827
90179-08191
