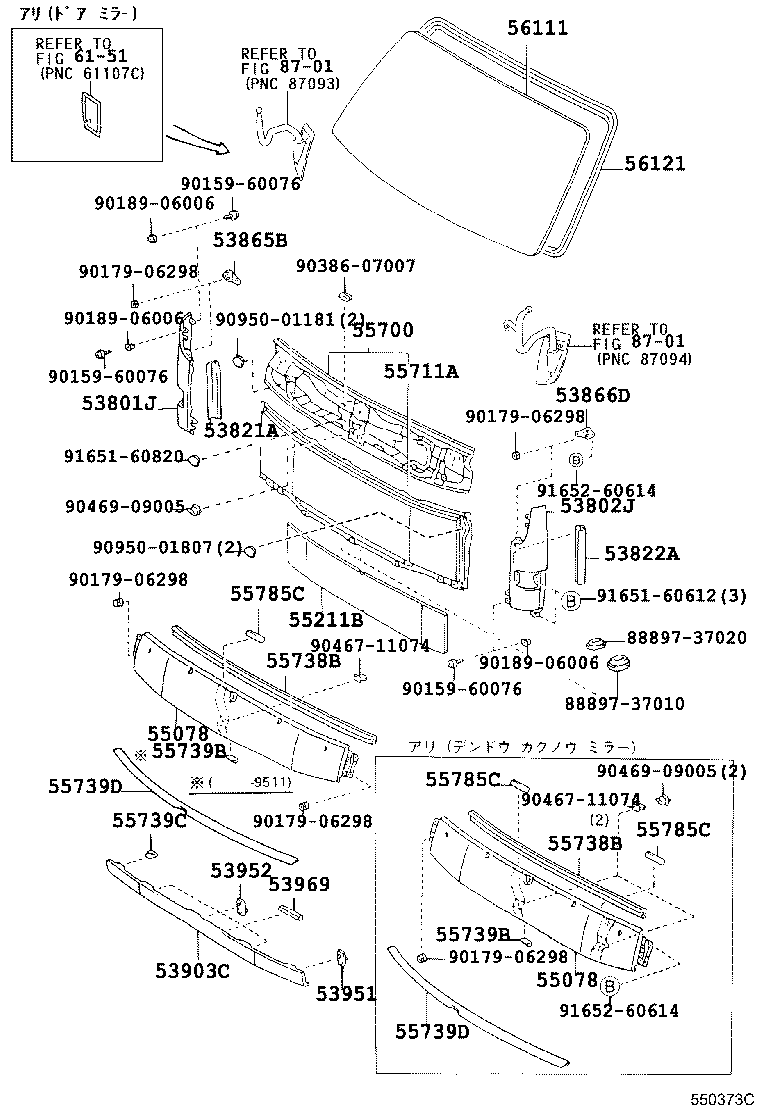

YY201-TLMES3 (1995)
Toyota Dyna 150/Toyoace G15
(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53801J - PANEL SUB-ASSY, FRONT SIDE, RH | ||||
| 53801-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53802J - PANEL SUB-ASSY, FRONT SIDE, LH | ||||
| 53802-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53821-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53865B - PLATE, FRONT FENDER EXTENSION, RH | ||||
| 53865-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53866D - PLATE, FRONT FENDER EXTENSION, LH | ||||
| 53866-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53903C - GARNISH SUB-ASSY, FRONT PANEL, LOWER | ||||
| 53903-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 53951 - SUPPORT, FRONT END PANEL, UPPER | ||||
| 53951-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 53952 - SUPPORT, FRONT END PANEL, LOWER | ||||
| 53952-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
3 | ||
| 53969 - PACKING, AIR CLEANER INLET, NO.4 | ||||
| 53969-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55078-37030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55078 - COVER SUB-ASSY, FRONT PANEL | ||||
| 55078-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55078-37030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55211B - SILENCER, FRONT PANEL | ||||
| 55211-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55700-37030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55700-37011 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55711A - PANEL, FRONT, LOWER | ||||
| 55711-37030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55738-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55738B - PROTECTOR, FRONT PANEL COVER, NO.1 | ||||
| 55738-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55738-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55739B - PROTECTOR, FRONT PANEL COVER, NO.2 | ||||
| 55739-37010 |
LY201,211,YY201,211 |
2 | ||
| 55739B - PROTECTOR, FRONT PANEL COVER, NO.2 | ||||
| 55739-37010 |
LY201,211,YY201,211 |
2 | ||
| 55739C - PROTECTER, FRONT PANEL COVER, NO.2 | ||||
| 55739-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
5 | ||
| 55739D - PROTECTOR, FRONT PANEL COVER, NO.2 | ||||
| 55739-37030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55739-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55739D - PROTECTOR, FRONT PANEL COVER, NO.2 | ||||
| 55739-37030 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
1 | ||
| 55739-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37010 |
LY201,211,YY201,211 |
1 | ||
| 55785-37010 |
LY201,211,YY201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
2 | ||
| 82712-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 82712-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
2 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37010 |
LY201,211,YY201,211 |
1 | ||
| 55785-37010 |
LY201,211,YY201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
2 | ||
| 82712-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 82712-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
2 | ||
| 55785C - PAD, FRONT PANEL COVER | ||||
| 55785-37010 |
LY201,211,YY201,211 |
1 | ||
| 55785-37010 |
LY201,211,YY201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
2 | ||
| 82712-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 82712-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾐﾗ-) |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-37011 |
LY201,211,YY201,211 *TL,T=5.7 |
1 | ||
| 56111-37021 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 *LAM,T=5.7,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-37010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 88897-37010 | ||||
| 88897-37020 | ||||
| 90159-60076 | ||||
| 90179-06298 | ||||
| 90189-06006 | ||||
| 90386-07007 | ||||
| 90467-11074 | ||||
| 90469-09005 | ||||
| 90950-01181 | ||||
| 90950-01807 | ||||
| 91651-60612 | ||||
| 91651-60820 | ||||
| 91652-60614 | ||||
| Linked diagrams | ||||
| 6151 | ||||
| 8701 | ||||
