YY201-TLMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY20#,21#,YY201,211

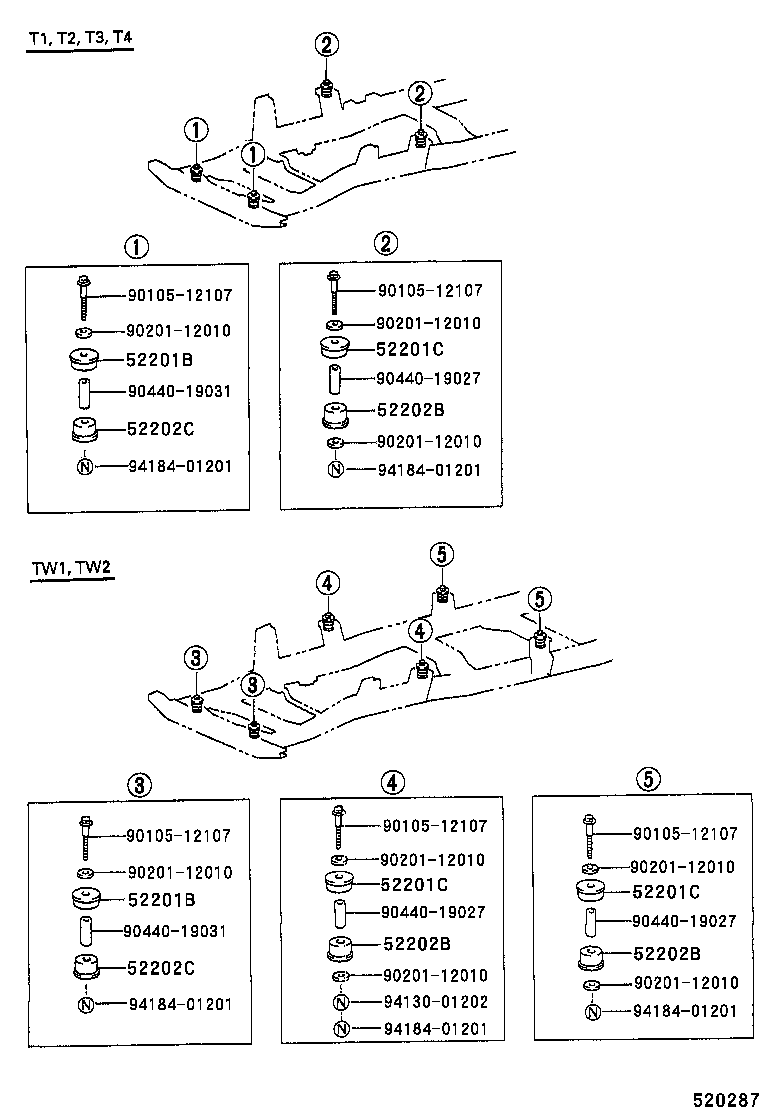

Click highlighted areas on diagram

diagram 52201B 52201B 52201C 52201C 52201C 52202B 52202B 52202B 52202C 52202C 9010512107 9010512107 9010512107 9010512107 9010512107 9020112010 9020112010 9020112010 9020112010 9020112010 9020112010 9020112010 9020112010 9044019027 9044019027 9044019027 9044019031 9044019031 9413001202 9418401201 9418401201 9418401201 9418401201 9418401201
Part # Description Qty Price
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
52201B - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 2
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 2
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-25040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-25040

LY20#,21#,YY201,211

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-25040

LY20#,21#,YY201,211

 2
Common parts
90105-12107
90201-12010
90440-19027
90440-19031
94130-01202
94184-01201
