YY201-TLMES3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )LY201,YY201..WT ; (9505- )LY201,YY201..ST..15T ; (9505- )LY202,21#

Click highlighted areas on diagram

R451,R452,R453

diagram 31111 31111 33118 33118 33119 33119 9161161030 9161161030 9161161030 9161161030 9161261045 9161261045 9161261045 9161261045 9161261045 9161261045 9161261045 9161961250 9161961250 9161961255 9161961255 9161961260 9165161032 9165161060
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-25040

YY201..WT;YY201..ST..15T;LY16#,YY121,131,211..MTM..(CBR,LPG)

 1
31111 - HOUSING, CLUTCH
31111-25040

YY201..WT;YY201..ST..15T;LY16#,YY121,131,211..MTM..(CBR,LPG)

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36031

LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-36031

LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36030

LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-36030

LY16#,YY101,121,131,201,211..MTM..(CBR,LPG)

 1
Common parts
91611-61030
91612-61045
91619-61250
91619-61255
91619-61260
91651-61032
91651-61060

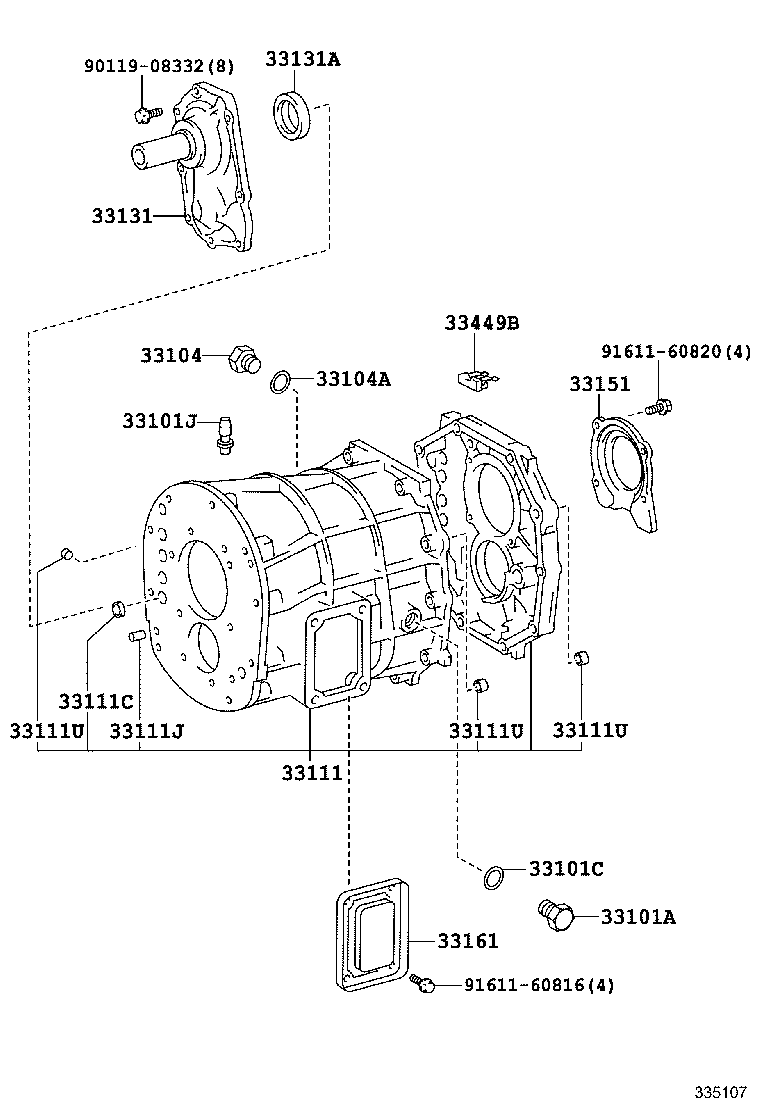

ILLUST NO. 2 OF 2(9505- )LY201,YY201..WT ; (9505- )LY201,YY201..ST..15T ; (9505- )LY12#,13#

Click highlighted areas on diagram

R451,R452,R453

diagram 33101A 33101C 33101J 33104 33104A 33111 33111C 33111J 33111U 33111U 33111U 33131 33131A 33151 33161 33449B 9011908332 9161160816 9161160820
Part # Description Qty Price
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

 1
33101J - PLUG, BREATHER
90930-03085

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-25020

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

外径=18

 3
90331-14004

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

外径=14

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

長さ=16,外径=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

長さ=14,外径=15

 4
90253-11001

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

長さ=11,外径=11

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

長さ=14,外径=15

 4
90253-11001

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

長さ=11,外径=11

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

長さ=14,外径=15

 4
90253-11001

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM

長さ=11,外径=11

 2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35031

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32012

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

 1
33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF
33161-25010

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..MTM

 1
33449B - MAGNET, TRANSMISSION
33449-35030

LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM

 1
Common parts
90119-08332
91611-60816
91611-60820
