YY201-TLMES (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )CBR,LPG

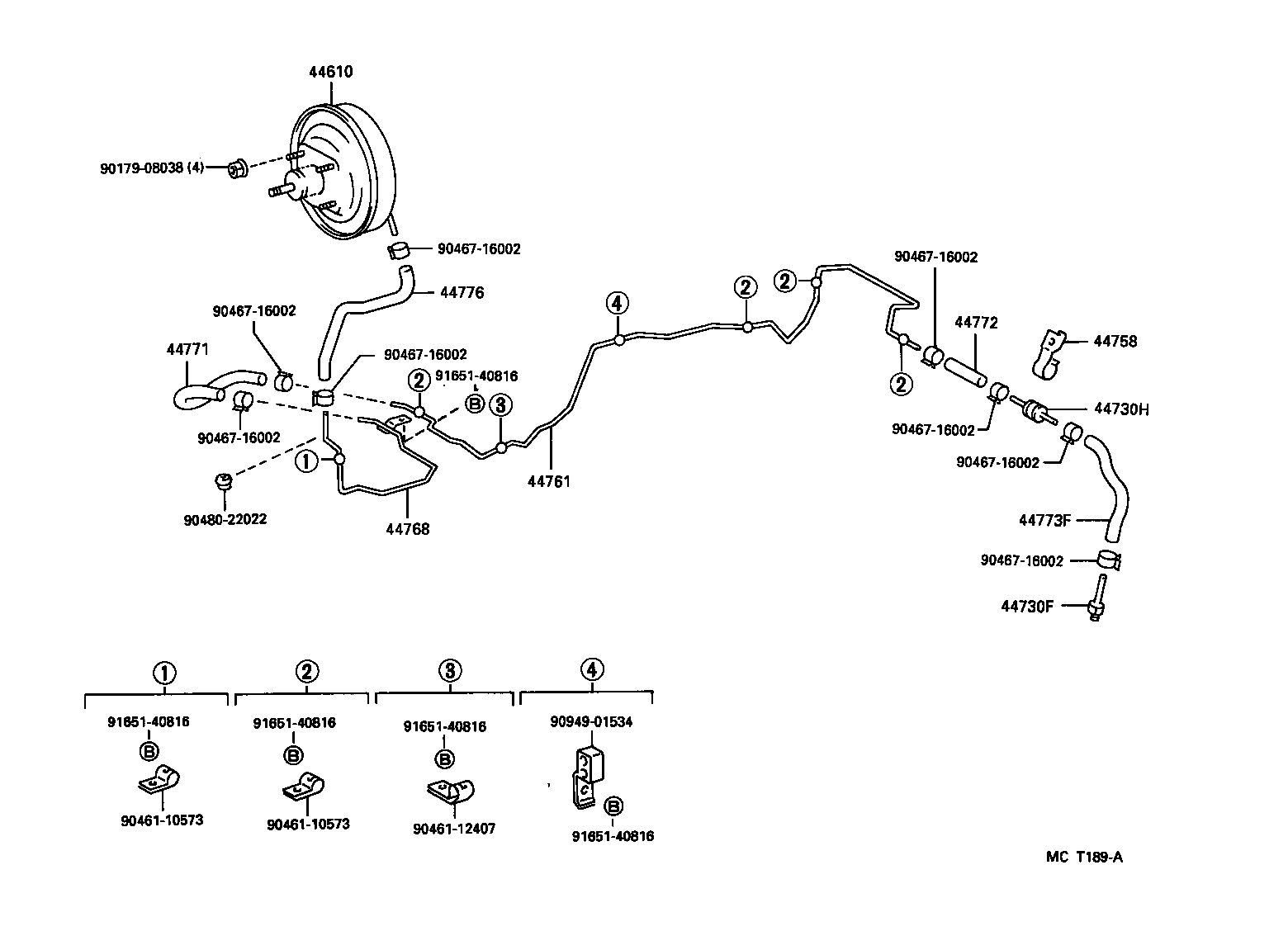

Click highlighted areas on diagram

diagram 44610 44730F 44730H 44758 44761 44768 44771 44772 44773F 44776 9017908038 9046110573 9046110573 9046112407 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9048022022 9094901534 9165140816 9165140816 9165140816 9165140816 9165140816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-25250

YY201,211..(T2,TW2)..WT

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR)
44730-24020

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-26030

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25110

LY10#,11#,15#,20#,21#;LY16#..(T2,T3,TW1)..TS

 1
44761-25120

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44768 - TUBE, BOOSTER VACUUM
44768-25030

LY16#..LPG;LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,20#,21#,YY101,121,131,201,211

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25070

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-25020

LY16#,YY101,121,131,201,211..CBR,LPG

 1
44776 - HOSE, BRAKE BOOSTER
44776-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
Common parts
90179-08038
90461-10573
90461-12407
90467-16002
90480-22022
90949-01534
91651-40816
