YY201-TKMFS3 (1995)
Toyota Dyna 150/Toyoace G15

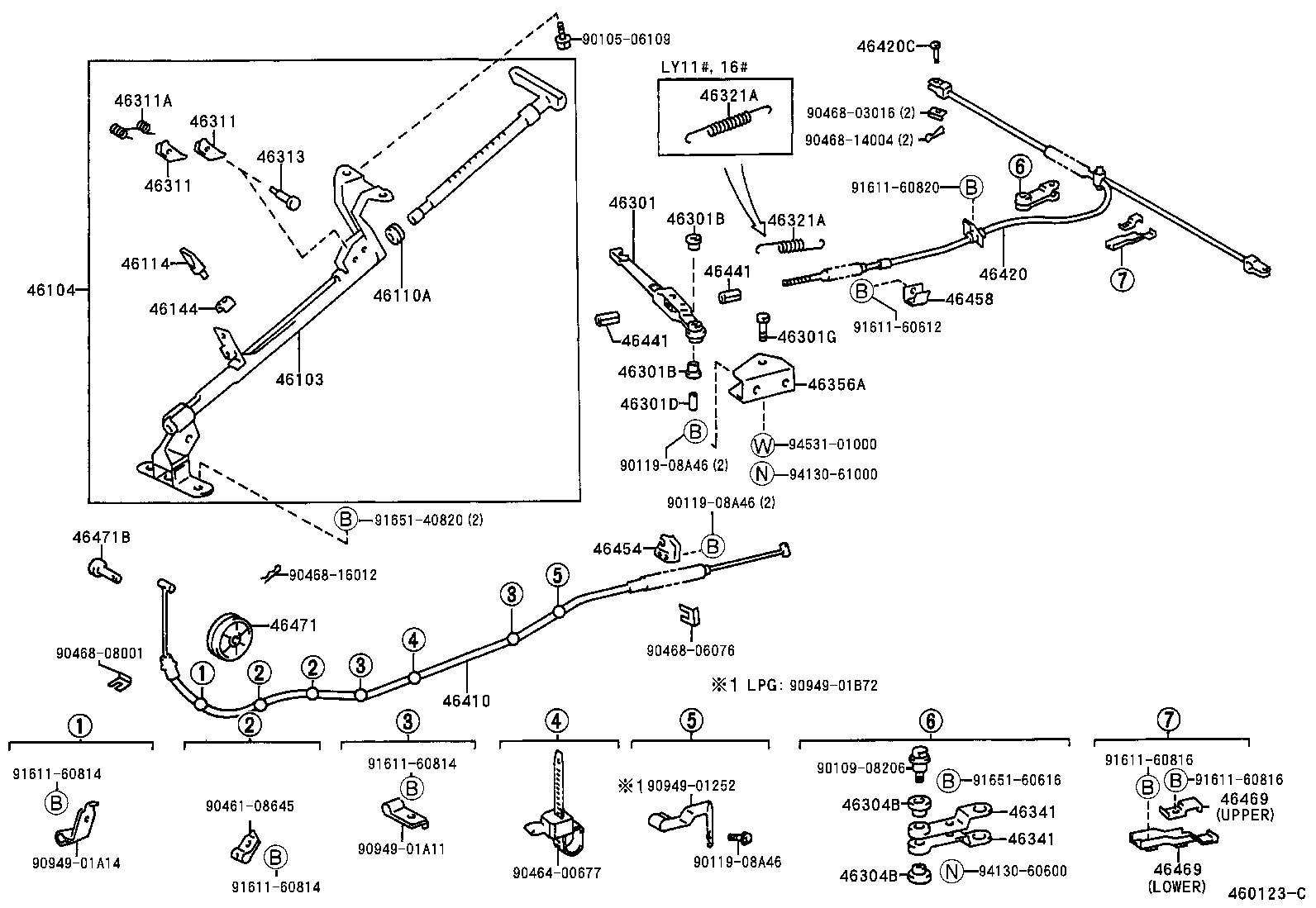

ILLUST NO. 2 OF 2(9505- )YY211..MTM ; (9505- )LY201,YY201..WT ; (9505- )LY201,YY201..ST..15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-25040 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..(T2,T3,TW2)..MTM |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-10017 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,202,21#,YY121,131..T2,T3,TW2 |
4 | ||
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-36022 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 46506-36020 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-36030 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-36030 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-18012 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14048 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 46555-35010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 46556-35010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
2 | ||
| 46577 - COVER, ADJUSTING CAM HOLE | ||||
| 46577-36010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-25011 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| Common parts | ||||
| 90119-10338 | ||||
| 90119-10339 | ||||
| 94613-11200 | ||||
| Linked diagrams | ||||
| 3701 | ||||
(9610- )LY10#,11#,15#,16#,YY101..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 90387-10004 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-10039 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311-26010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311-26010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 90508-08041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-18058 |
LY10#,15#,YY101 |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-18058 |
LY10#,15#,YY101 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26090 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26371 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46410-36350 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25181 |
LY211;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46420-25182 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-26051 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 下側 |
1 | ||
| 46469-60020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 上側 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 下側 |
1 | ||
| 46469-60020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 上側 |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90109-08206 | ||||
| 90119-08A46 | ||||
| 90461-08645 | ||||
| 90464-00677 | ||||
| 90468-03016 | ||||
| 90468-06076 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90468-16012 | ||||
| 90949-01252 | ||||
| 90949-01A11 | ||||
| 90949-01A14 | ||||
| 90949-01B72 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 94130-60600 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
ILLUST NO. 1 OF 2(9505- )LY202,21# ; (9505- )YY211..MTM ; (9505- )LY201,YY201..WT ; (9505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-36200 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-37010 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 46114A - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 90387-10004 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311-26010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 90508-08041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26371 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46410-36350 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-25026 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-08010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25181 |
LY211;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46420-25182 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-25030 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25010 |
LY202,21#;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-08A46 | ||||
| 90170-06004 | ||||
| 90179-08057 | ||||
| 90461-08225 | ||||
| 90468-06076 | ||||
| 90949-01306 | ||||
| 90949-01307 | ||||
| 91112-81070 | ||||
| 91611-60612 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
