YY201-TKMFS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

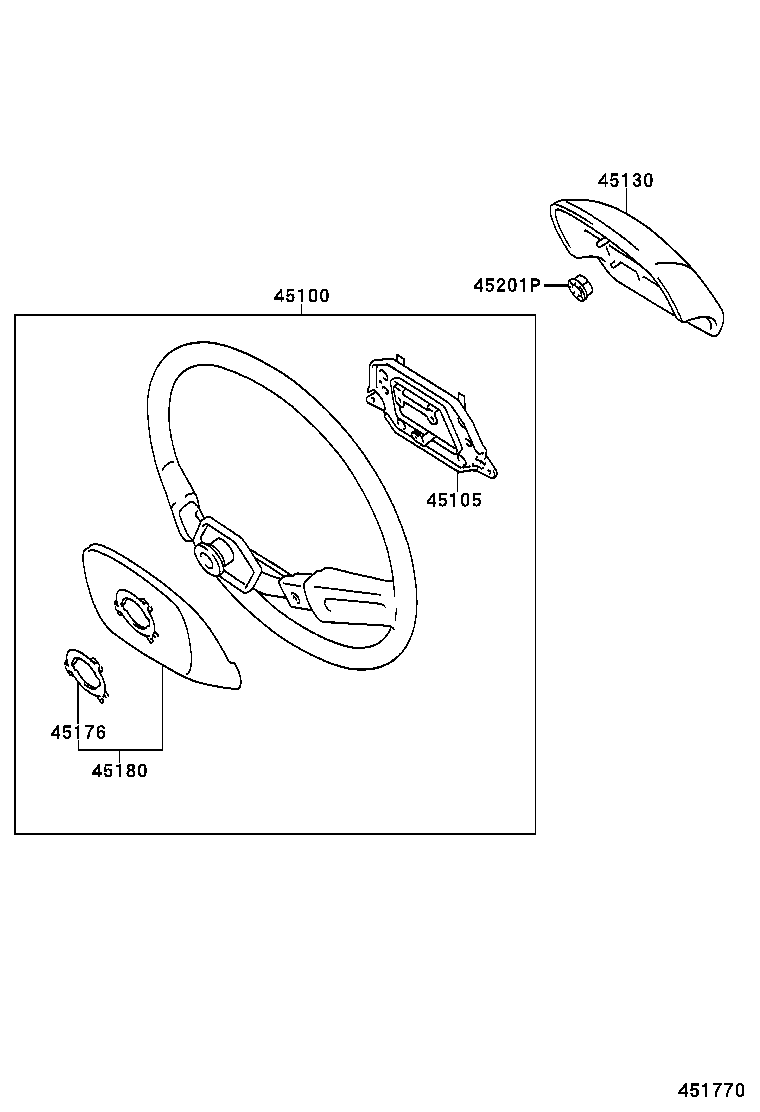

Click highlighted areas on diagram

diagram 45100 45105 45130 45176 45180 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36130B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-37040B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-36020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
45130 - BUTTON ASSY, HORN
45130-37050B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-36110B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
45130-37140B1

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-36010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-36020B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1

(9708- )

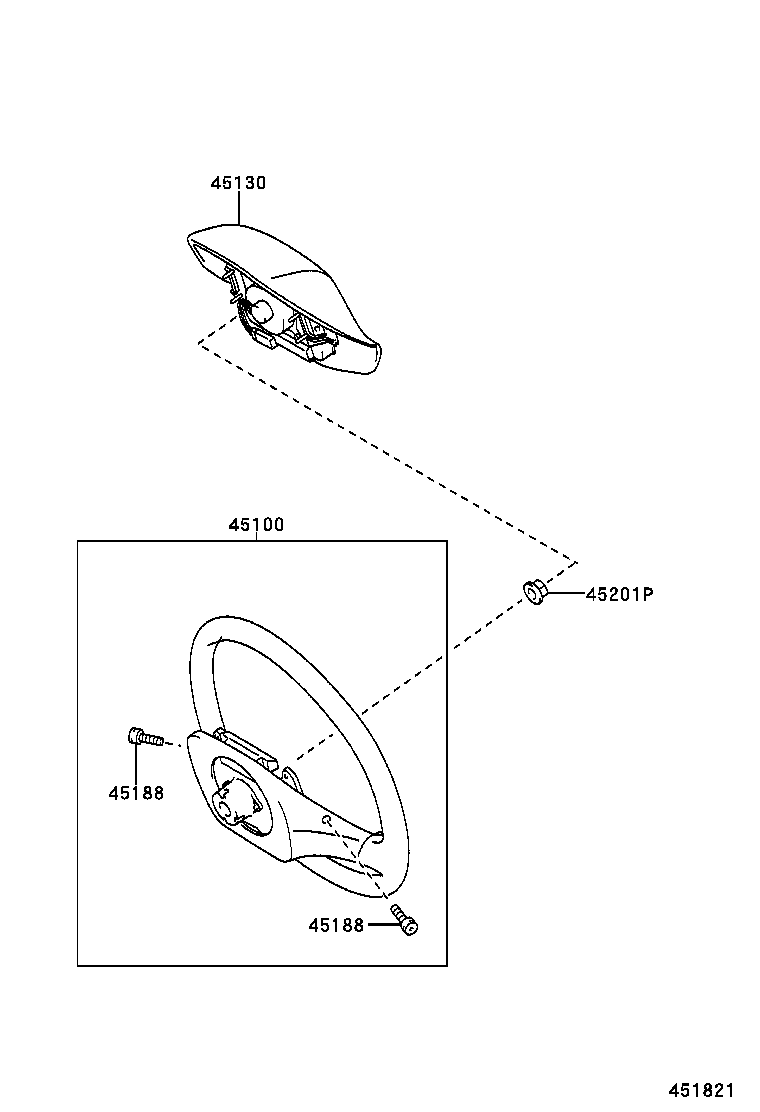

Click highlighted areas on diagram

W(*80)

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36130B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUISH GRAY,TRIM1#

 1
45100-37040B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-37050B0

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45130-36110B0

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

BLUISH GRAY,TRIM1#

 1
45130-37140B1

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
