YY201-TKMFS (1995)
Toyota Dyna 150/Toyoace G15

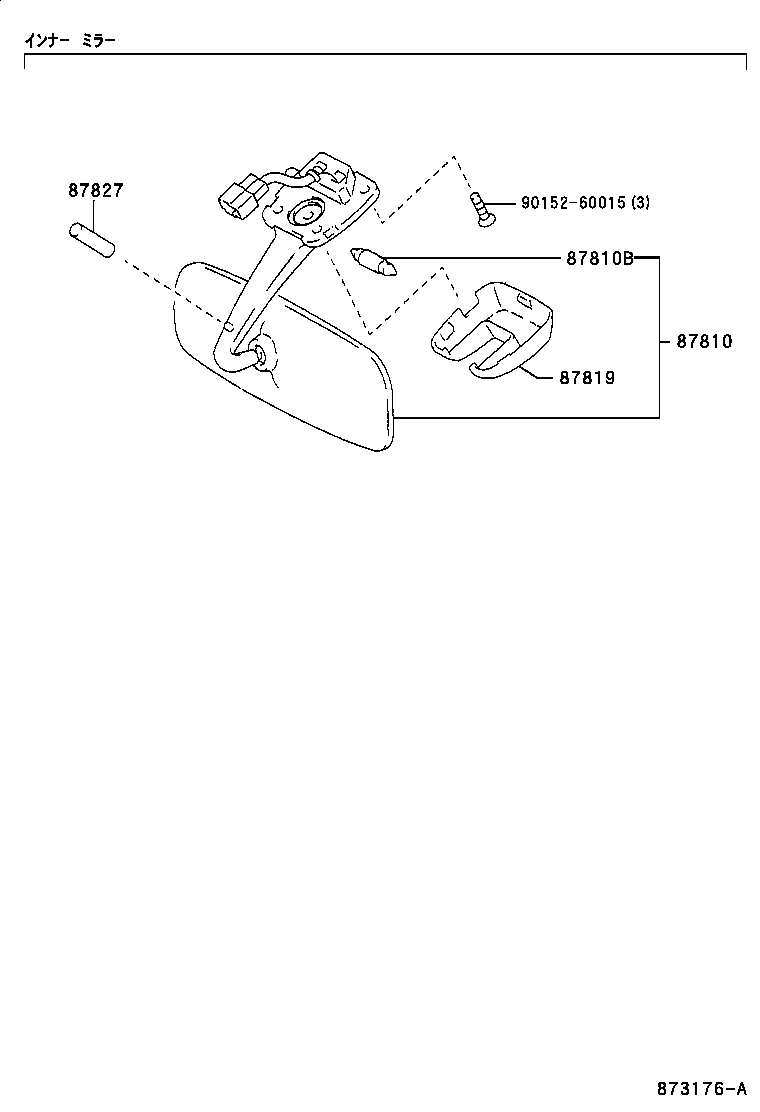

ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-25020C0 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 BLACK,TRIM1# |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 12V 10W |
1 | ||
| 87819 - LENS, INNER RR VIEW MIRROR ROOM LAMP | ||||
| 87819-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 L=44.0 |
1 | ||
| 87828-23010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 長さ=40.5 |
1 | ||
| Common parts | ||||
| 90152-60015 | ||||

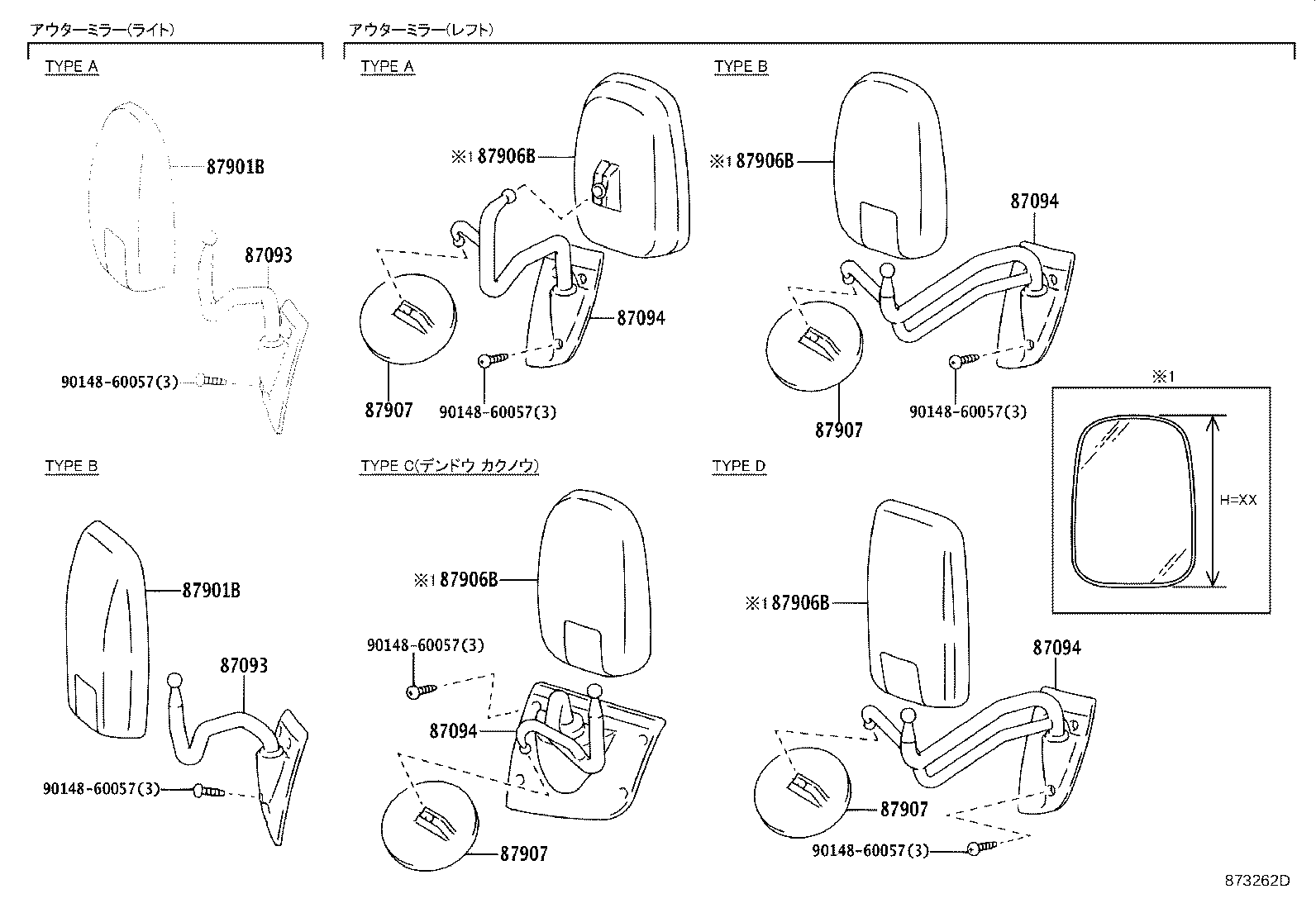

ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH | ||||
| 87093-37110 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87093 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH | ||||
| 87093-37110 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094-37260 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094-37260 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094-37260 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094-37260 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,H=283 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,H=283 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,H=283 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,H=283 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90148-60057 | ||||

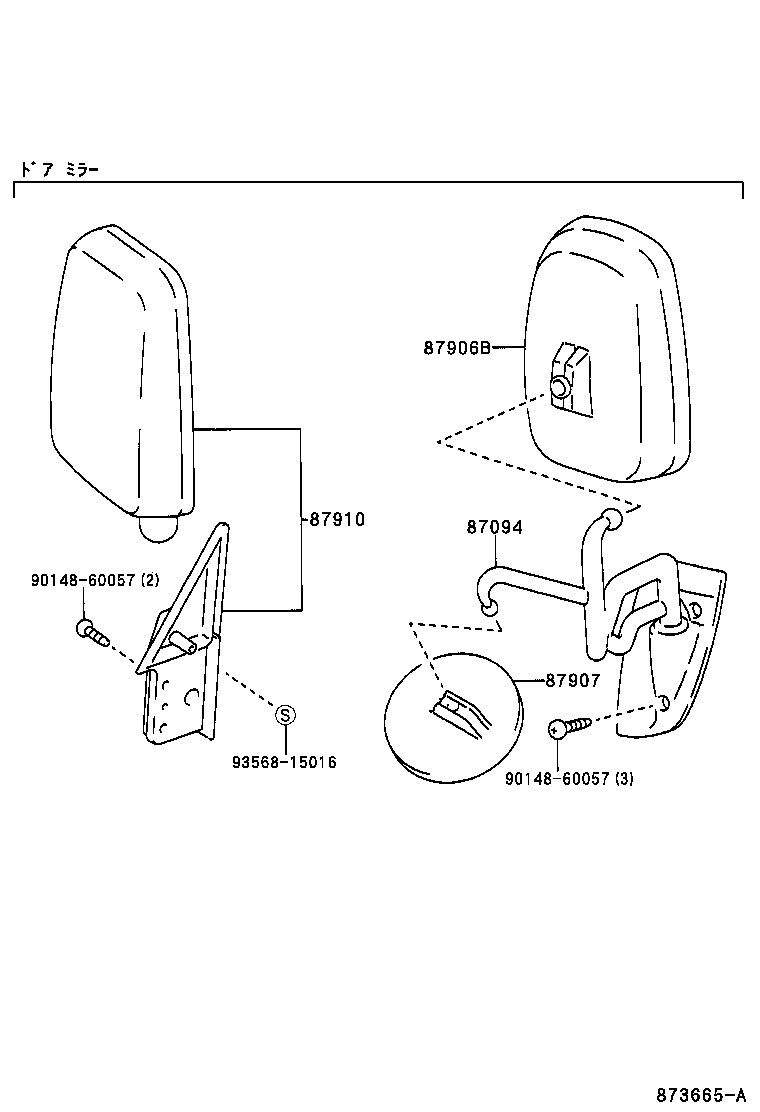

ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87094 - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH | ||||
| 87094-25010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87094-37260 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 87901-37080 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 TYPE B OR TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,H=283 |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-37050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95A15 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3 |
1 | ||
| Common parts | ||||
| 90148-60057 | ||||
| 93568-15016 | ||||
