YY201-TKMFS (1995)
Toyota Dyna 150/Toyoace G15

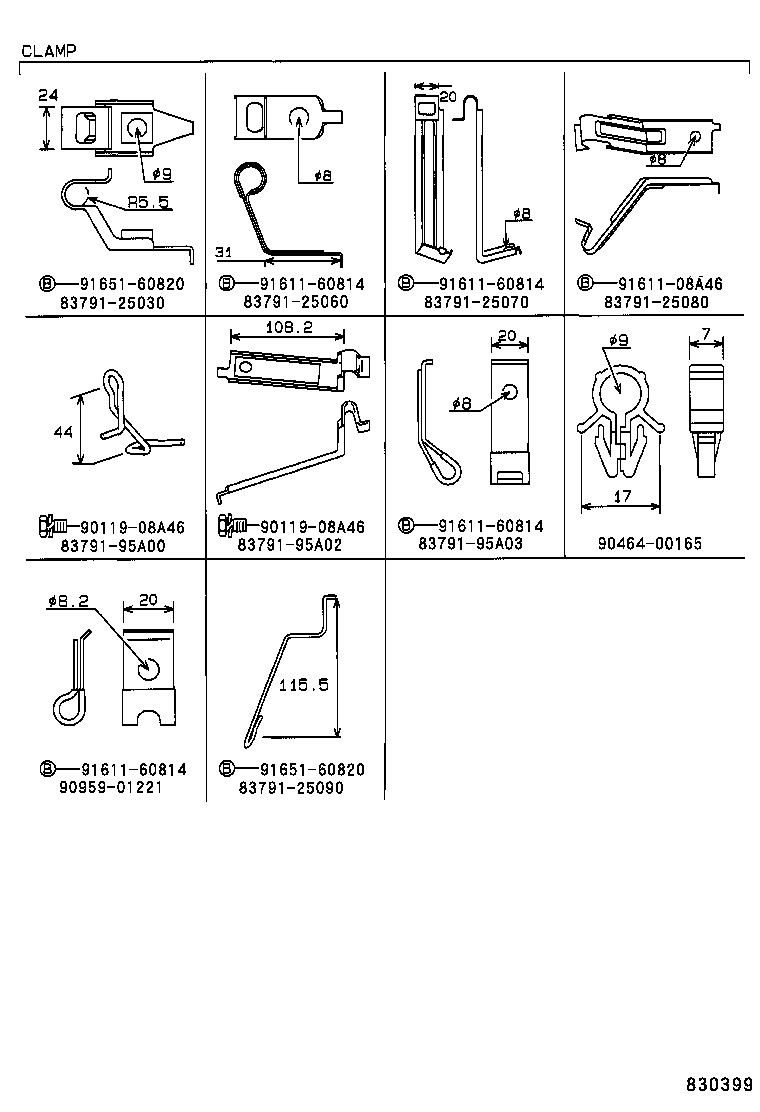

ILLUST NO. 4 OF 4(9505- )
2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-25030 | ||||
| 83791-25060 | ||||
| 83791-25070 | ||||
| 83791-25080 | ||||
| 83791-25090 | ||||
| 83791-95A00 | ||||
| 83791-95A02 | ||||
| 83791-95A03 | ||||
| 90119-08A46 | ||||
| 90464-00165 | ||||
| 90959-01221 | ||||
| 91611-08A46 | ||||
| 91611-60814 | ||||
| 91651-60820 | ||||

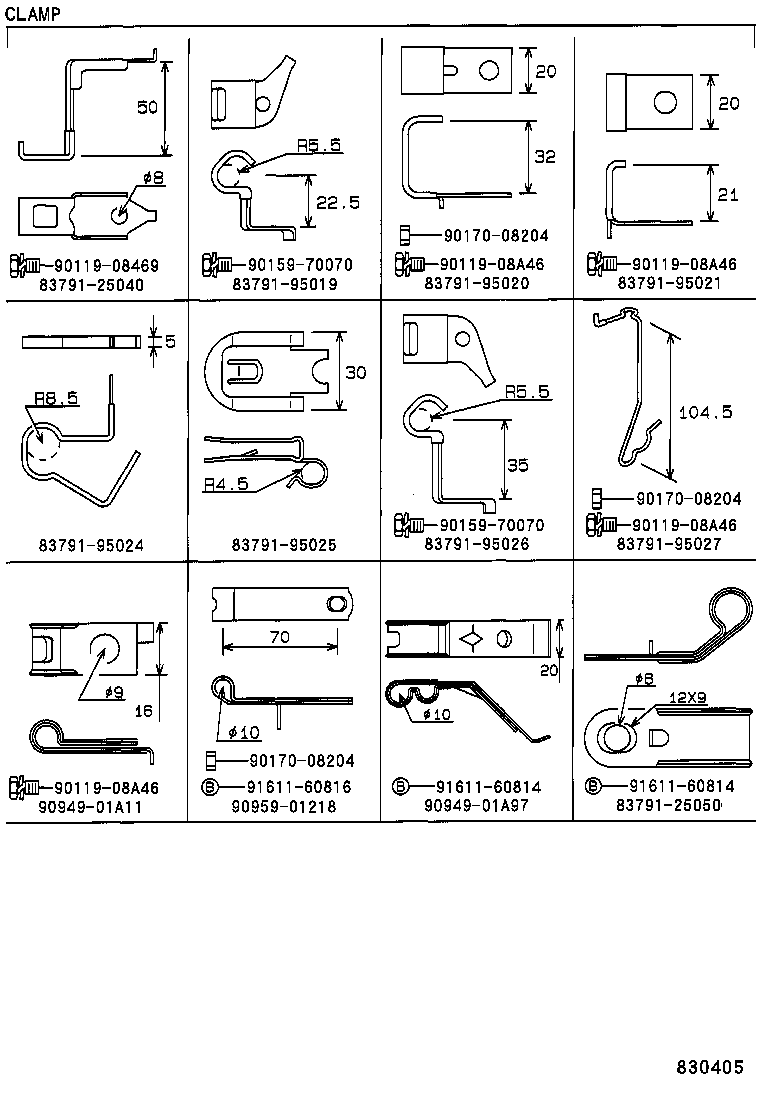

ILLUST NO. 4 OF 4(9505- )
1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-25040 | ||||
| 83791-25050 | ||||
| 83791-95019 | ||||
| 83791-95020 | ||||
| 83791-95021 | ||||
| 83791-95024 | ||||
| 83791-95025 | ||||
| 83791-95026 | ||||
| 83791-95027 | ||||
| 90119-08469 | ||||
| 90119-08A46 | ||||
| 90159-70070 | ||||
| 90170-08204 | ||||
| 90949-01A11 | ||||
| 90949-01A97 | ||||
| 90959-01218 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||

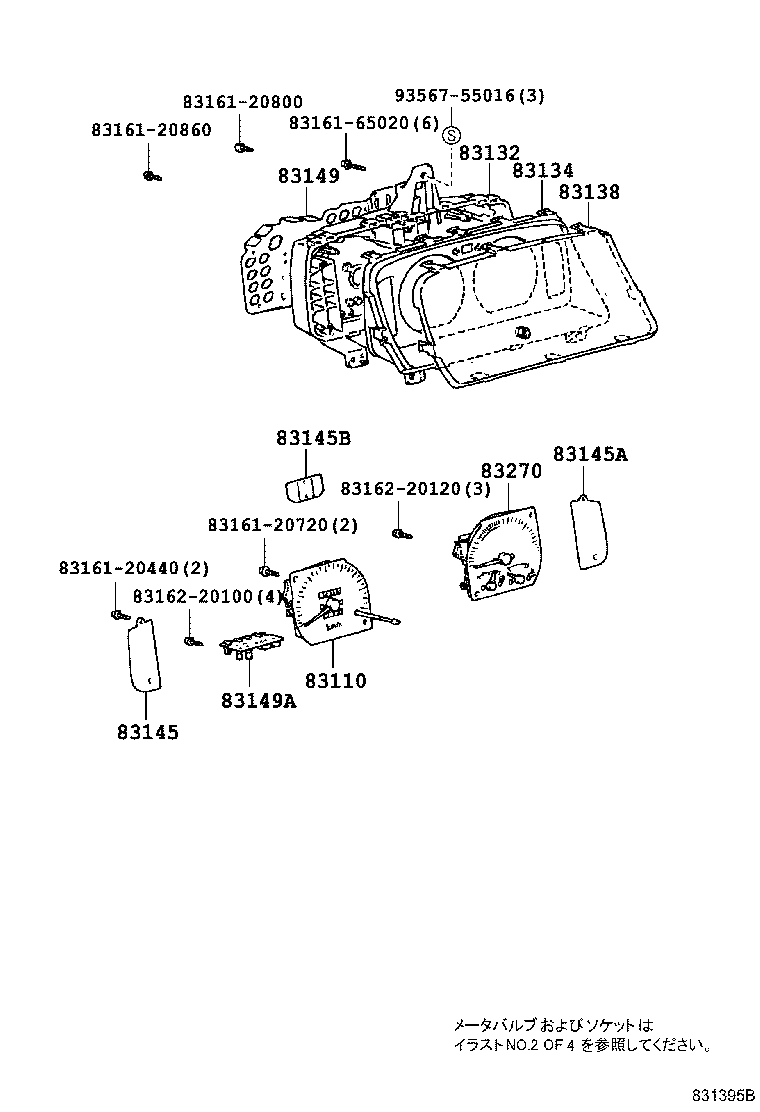

ILLUST NO. 1 OF 4(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-37060 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83137-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83146-37340 |
LY101,111,121,131,151,161,201,211..MTM |
1 | ||
| 83146-37180 |
LY211..ATM..ST;LY211..T2..ATM..CBU;YY101,121,131,201,211 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-37200 |
LY101,111,121,131,151,161,201,211..MTM |
1 | ||
| 83146-37320 |
YY101,121,131,201,211 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83146-37140 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-37540 |
LY101,111,121,131,151,161,201,211 |
1 | ||
| 83149-37320 |
YY101,121,131,201,211 |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-26860 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83243-37120 |
LY16#,YY101,121,131,201,211..CBR,LPG |
1 | ||
| 83243-37260 |
LY111..IV5;LY102,112,16#..DSL;LY101,111,12#,13#,15#,20#,21#..MTM |
1 | ||
| Common parts | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 83161-20800 | ||||
| 83161-20860 | ||||
| 83161-65020 | ||||
| 83162-20100 | ||||
| 83162-20120 | ||||
| 93567-55016 | ||||

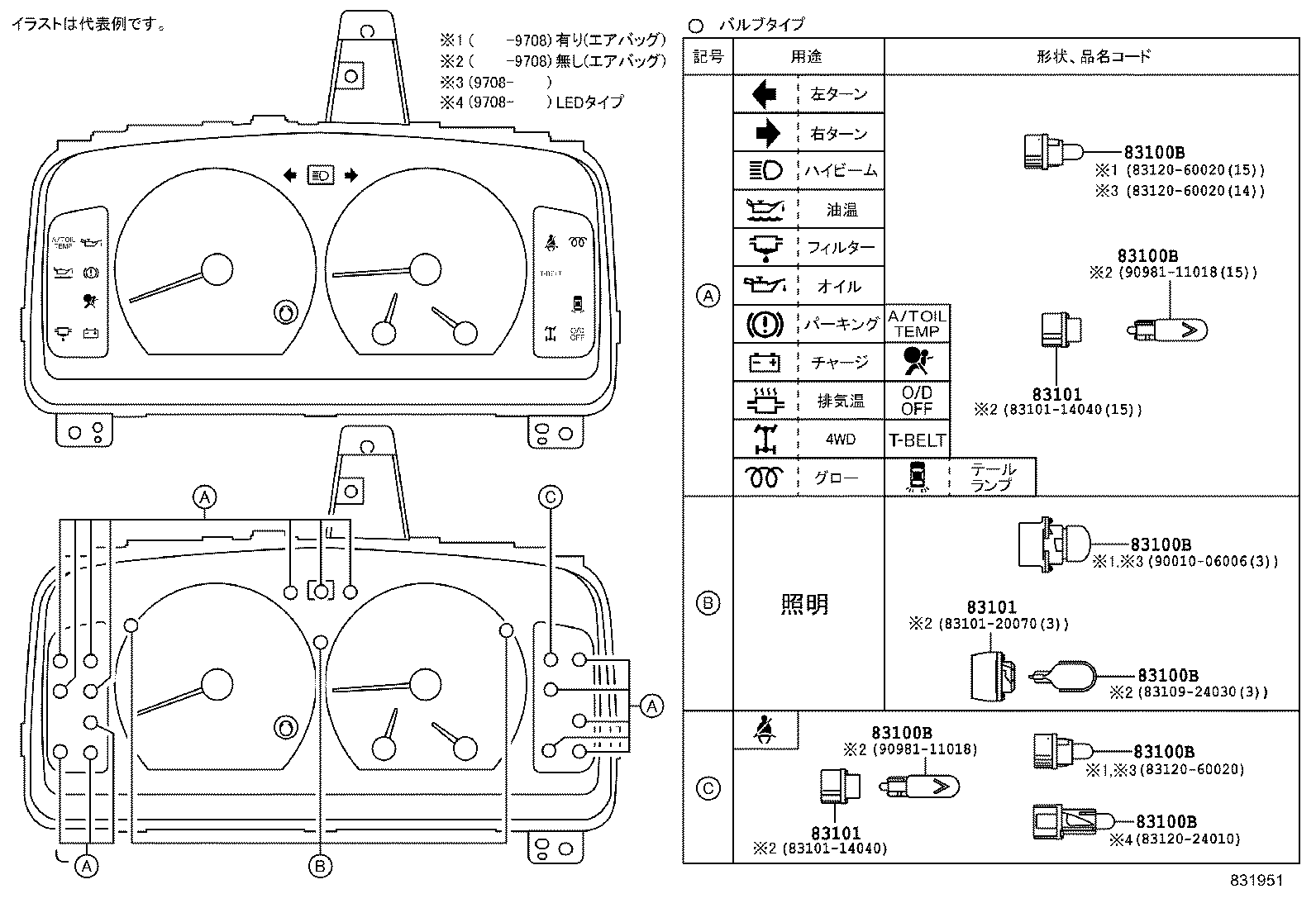

ILLUST NO. 2 OF 4(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
3 | ||
| 90981-11018 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
YY101,121,131,201,211 |
11 | ||
| 83101-14040 |
LY101,111,121,131,151,161,201,211 |
13 | ||
| 83101-20070 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 ｲﾗｽﾄ ｻﾝｼﾖｳ |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
YY101,121,131,201,211 |
11 | ||
| 83101-14040 |
LY101,111,121,131,151,161,201,211 |
13 | ||
| 83101-20070 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 ｲﾗｽﾄ ｻﾝｼﾖｳ |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
YY101,121,131,201,211 |
11 | ||
| 83101-14040 |
LY101,111,121,131,151,161,201,211 |
13 | ||
| 83101-20070 |
LY101,111,121,131,151,161,201,211,YY101,121,131,201,211 ｲﾗｽﾄ ｻﾝｼﾖｳ |
3 | ||

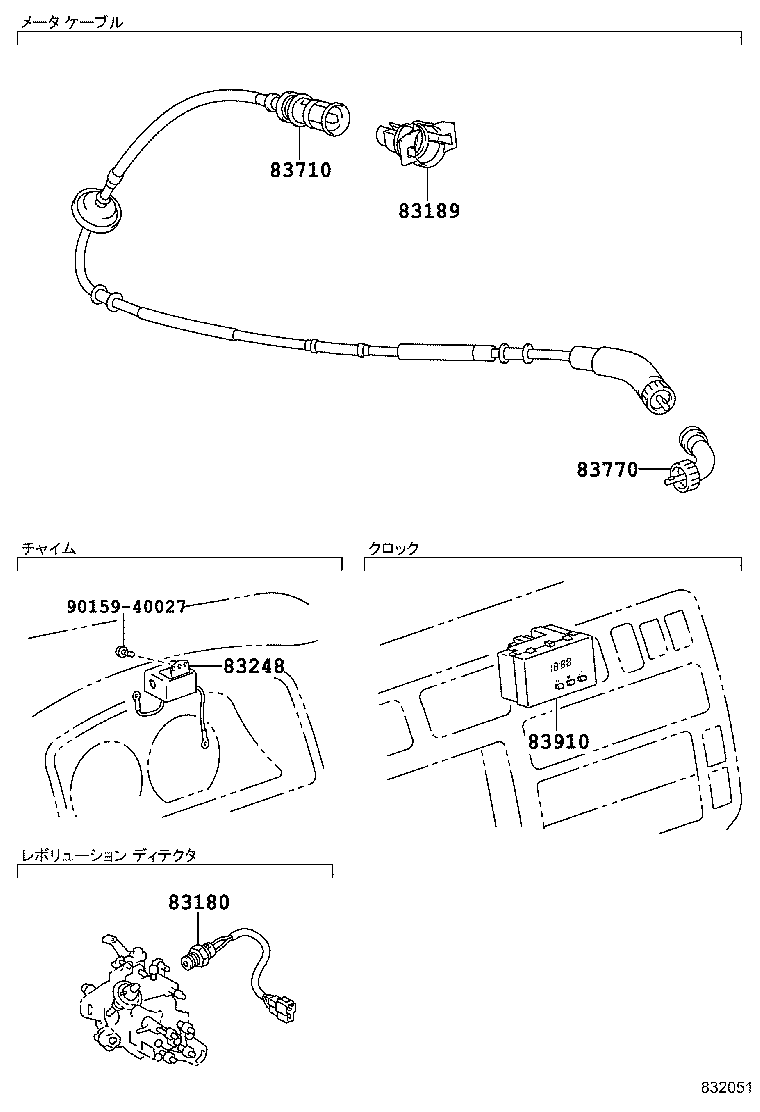

ILLUST NO. 3 OF 4(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86650-16020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-25200 |
YY201..WT;YY211..MTM;YY201..ST..15T |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-37050 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90159-40027 | ||||
