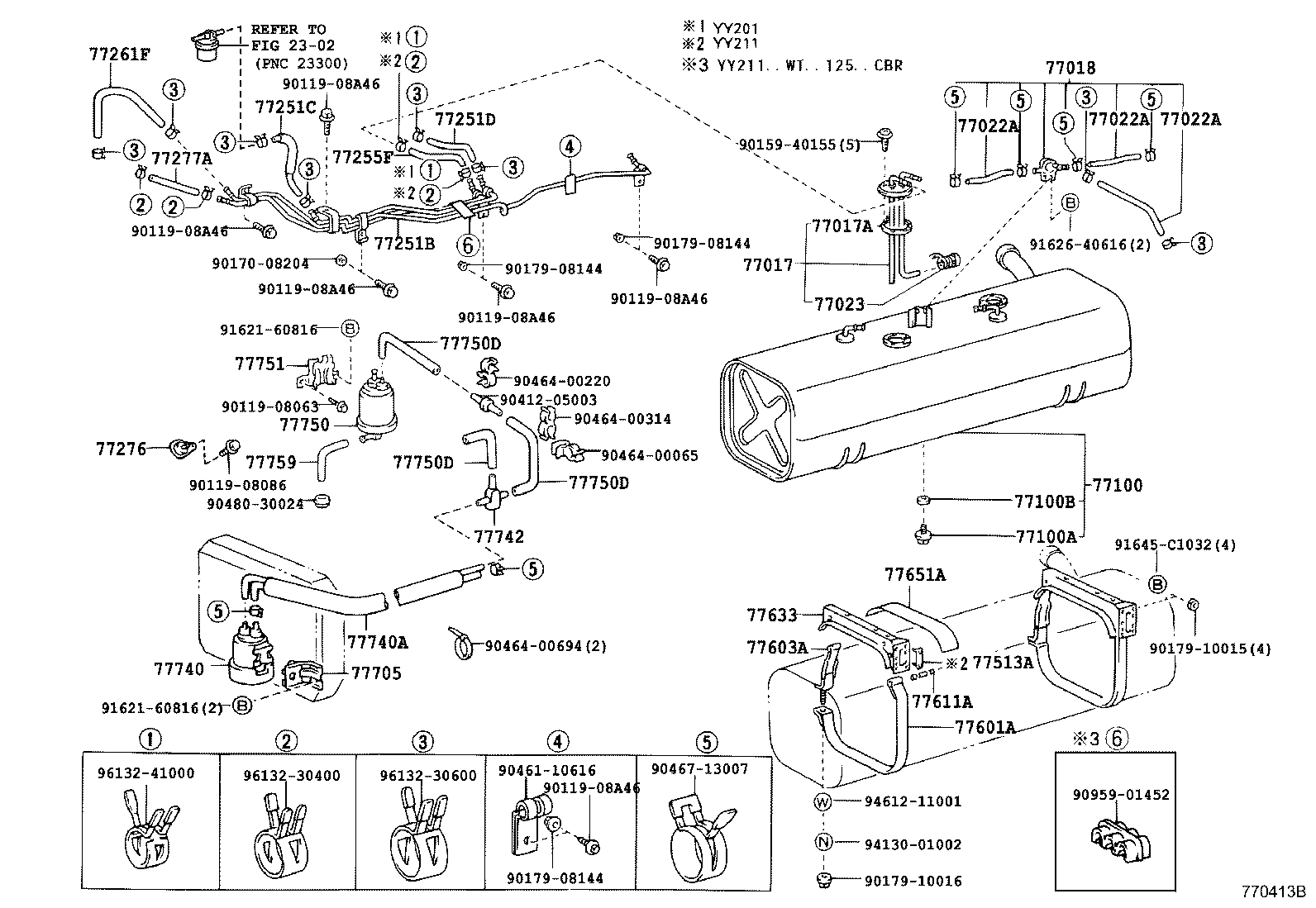

YY201-TKMFS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )YY201,211..T1,T2,T3,T4..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-25100 |
YY201..125,15T |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-25100 |
YY201,211..MTM..CBR |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
YY201,211..MTM..CBR *H,L=260 |
1 | ||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
YY201,211..MTM..CBR *H,L=260 |
1 | ||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
YY201,211..MTM..CBR *H,L=260 |
1 | ||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
YY101,121,131,201,211..CBR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26410 |
YY101..IV3;LY10#..T2..TB;LY10#..T1,T3,TW2;LY121,212,YY121..TB;LY10#..T2..ATM..IV3;YY101..(T1,T3,TW2)..CBU;LY11#,13#,YY131..TW1,TW2;LY122,20#,211,YY201,211..(T2,T3,T4)..(CBR,DSL) 60L;TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-25030 |
YY201 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-25040 |
YY201,211..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
YY201,211..CBR *H,L=200 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
YY201,211..CBR 長さ=200 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-25060 |
YY201,211..CBR |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-60020 |
YY201,211..CBR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-73080 |
YY201,211..CBR |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25051 |
LY20#,YY201..125,15T ﾌﾛﾝﾄ |
1 | ||
| 77501-25091 |
LY21#,YY211..(T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,YY101,121,131..CBR,DSL |
2 | ||
| 77501-25091 |
LY20#,YY201..125,15T ﾘﾔ |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-26022 |
YY101,121,131,201,211..CBR |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26060 |
YY201,211..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23820-73010 |
YY101,121,131,201,211..CBR |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
YY101,121,131,201,211..CBR |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60050 |
YY101,121,131,201,211..CBR |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
YY201,211..CBR *H,L=390,ﾏｰｸ=#3 |
1 | ||
| 90999-92003 |
YY101,121,131,201,211..CBR *H,L=390,ﾏｰｸ=#6 |
1 | ||
| 90445-08324 |
YY101,121,131,201,211..CBR 長さ=400 |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
YY201,211..CBR *H,L=390,ﾏｰｸ=#3 |
1 | ||
| 90999-92003 |
YY101,121,131,201,211..CBR *H,L=390,ﾏｰｸ=#6 |
1 | ||
| 90445-08324 |
YY101,121,131,201,211..CBR 長さ=400 |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90999-92003 |
YY201,211..CBR *H,L=390,ﾏｰｸ=#3 |
1 | ||
| 90999-92003 |
YY101,121,131,201,211..CBR *H,L=390,ﾏｰｸ=#6 |
1 | ||
| 90445-08324 |
YY101,121,131,201,211..CBR 長さ=400 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77705-26031 |
YY101,121,131,201,211..CBR |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 90910-05182 |
YY201,211..CBR |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08086 | ||||
| 90119-08A46 | ||||
| 90159-40155 | ||||
| 90170-08204 | ||||
| 90179-08144 | ||||
| 90179-10015 | ||||
| 90179-10016 | ||||
| 90412-05003 | ||||
| 90461-10616 | ||||
| 90464-00065 | ||||
| 90464-00220 | ||||
| 90464-00314 | ||||
| 90464-00694 | ||||
| 90467-13007 | ||||
| 90480-30024 | ||||
| 90959-01452 | ||||
| 91621-60816 | ||||
| 91626-40616 | ||||
| 91645-C1032 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 2302 | ||||
