YY201-TKMFS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

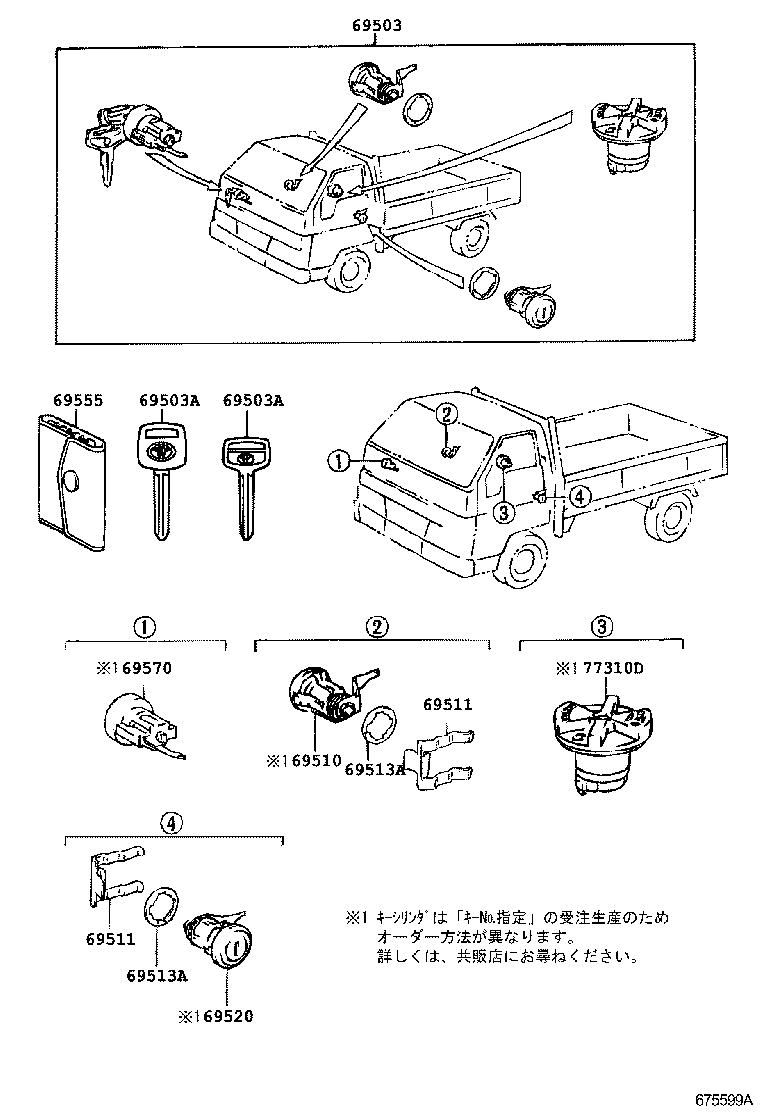

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69510 69511 69511 69513A 69513A 69520 69555 69570 77310D
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69503-37050

YY101,121,131,201,211..CBR

 1
69503A - KEY, BLANK
90999-00186

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｽﾀｰｷｰ

 1
90999-00185

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｽﾀｰｷｰ,*68付き

 1
69503A - KEY, BLANK
90999-00186

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｽﾀｰｷｰ

 1
90999-00185

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69513A - PAD, DOOR CYLINDER
69513-32010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69513A - PAD, DOOR CYLINDER
69513-32010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
69555 - COVER, KEY
69555-20010

LY201,211,YY201,211

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
77310D - CAP ASSY, FUEL TANK
77310-37010

YY101,121,131,201,211

 1
