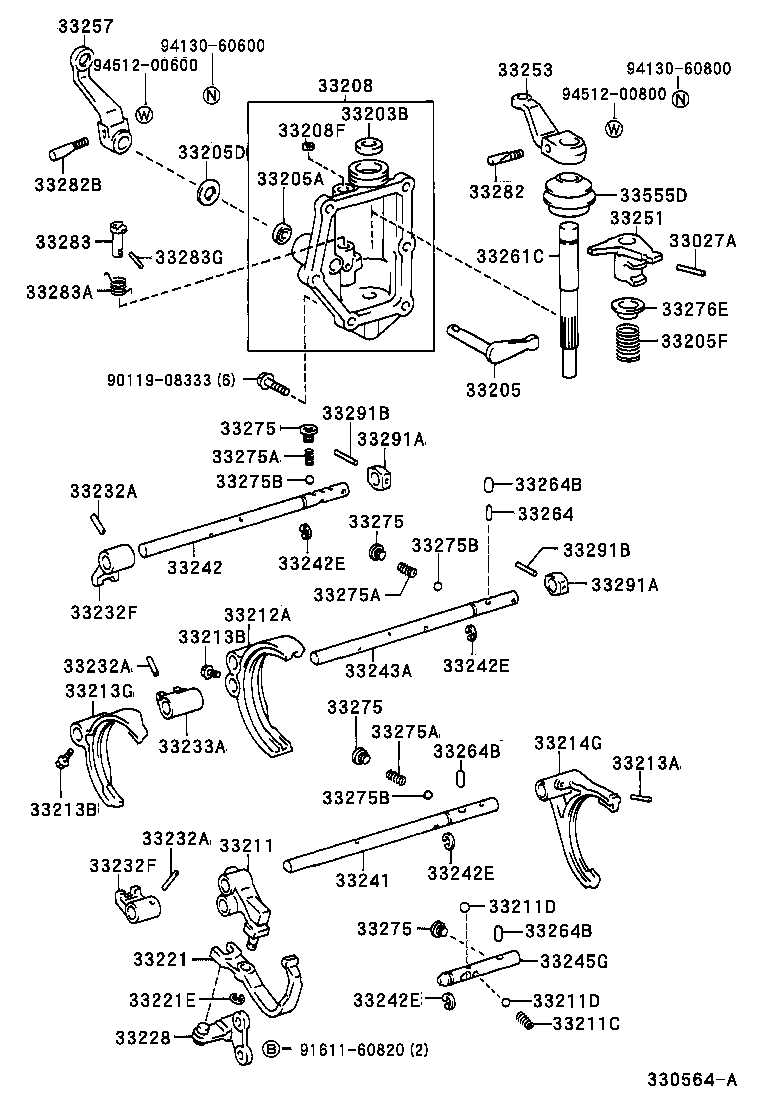

YY201-TKMFS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )LY201,YY201..WT ; (9505- )LY201,YY201..ST..15T ; (9505- )LY12#,13#
R351F,R451,R452,R453
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET) | ||||
| 90254-05016 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-20006 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-25040 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90501-19022 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT | ||||
| 33207-25010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33208F - PLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING) | ||||
| 96411-41200 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35050 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33211C - SPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN) | ||||
| 90501-12166 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 33211D - BALL(FOR REVERSE SHIFT FORK) | ||||
| 90360-10003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 外径=9.52,ｽﾁｰﾙ |
2 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-25011 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06077 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-25020 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-35050 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33221E - RING(FOR REVERSE SHIFT ARM END SHAFT) | ||||
| 96160-01000 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-35030 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
3 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-05001 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
3 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33233-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-26020 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-26030 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
4 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
4 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-26050 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35090 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-26050 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-25040 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-25030 |
LY201,YY201..WT;LY202,21#,YY211..MTM;LY201,YY201..ST..15T |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-35110 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05029 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=11.5,外径=4.8 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=13.6,外径=9.5 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 外径=17 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12014 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 外径=17 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=33.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=33.8 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16143 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM 長さ=33.8 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-25021 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33282 - PIN, LEVER LOCK, NO.2 | ||||
| 33282-57010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33282B - PIN, LEVER LOCK (FOR SELECT OUTER LEVER) | ||||
| 33282-35010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90504-10009 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33291-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33291A - STOPPER, SHIFT FORK SHAFT | ||||
| 33291-26010 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33291B - PIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT STOPPER) | ||||
| 90254-05001 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
2 | ||
| 33555D - BOOT, SHIFT LEVER | ||||
| 33555-25020 |
LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,16#,202,21#,YY121,131,211..MTM |
1 | ||
| Common parts | ||||
| 90119-08333 | ||||
| 91611-60820 | ||||
| 94130-60600 | ||||
| 94130-60800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
