YY201-TKMFS (1995)
Toyota Dyna 150/Toyoace G15
(9505- )

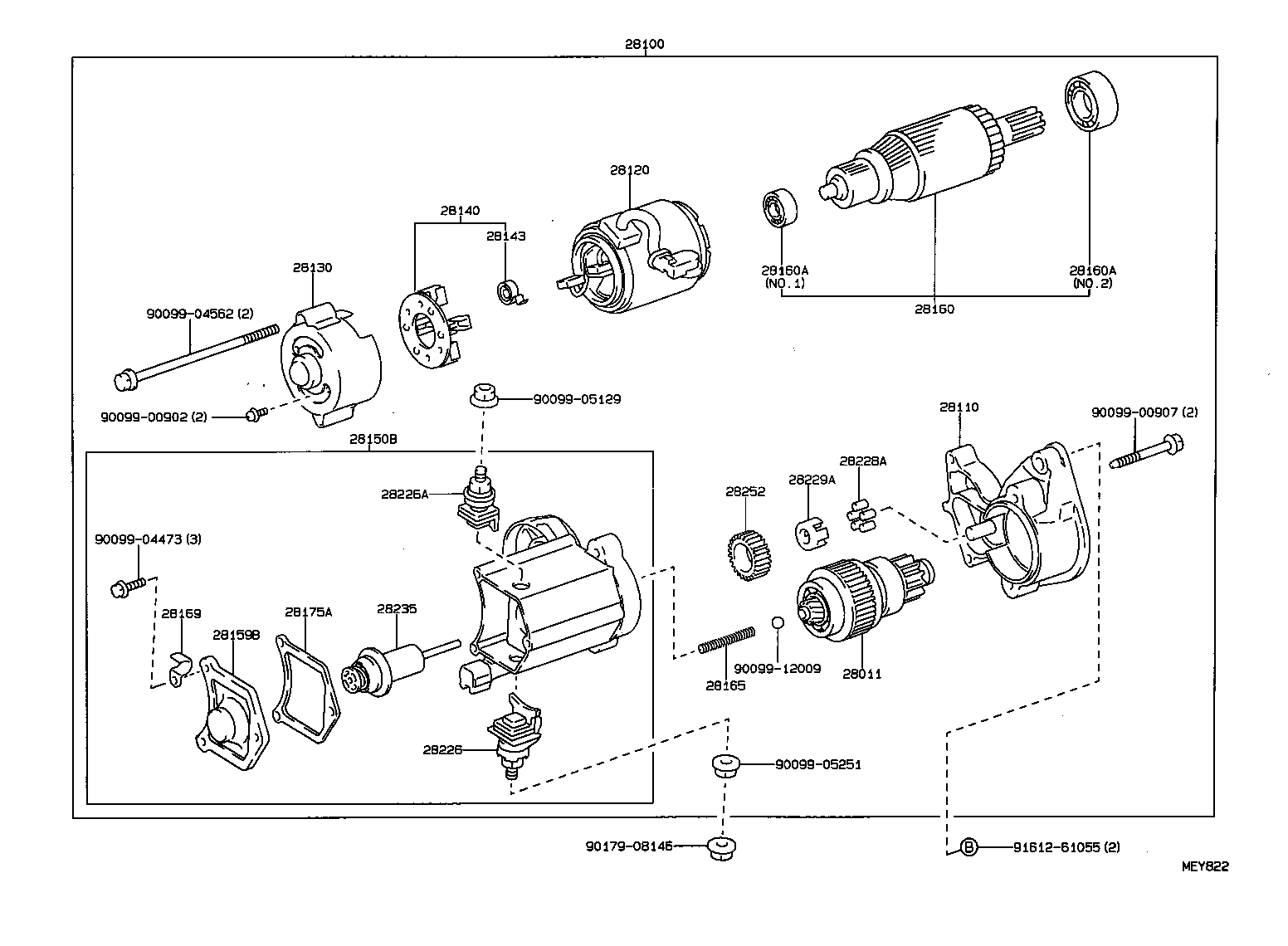

12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72130 |
3Y..YY101,121,131,201,211 12V 1.0KW,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28100-72130 |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3Y#..LY16#,YY101,121,131,201,211 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72130 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-70040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3Y..YY211;3L,5L,3Y..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3Y#..YY211;3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3Y..YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 28176-54380 | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 93219-15008 | ||||
| 94115-51200 | ||||
| 94130-61200 | ||||
| 94531-00500 | ||||
(9505- )

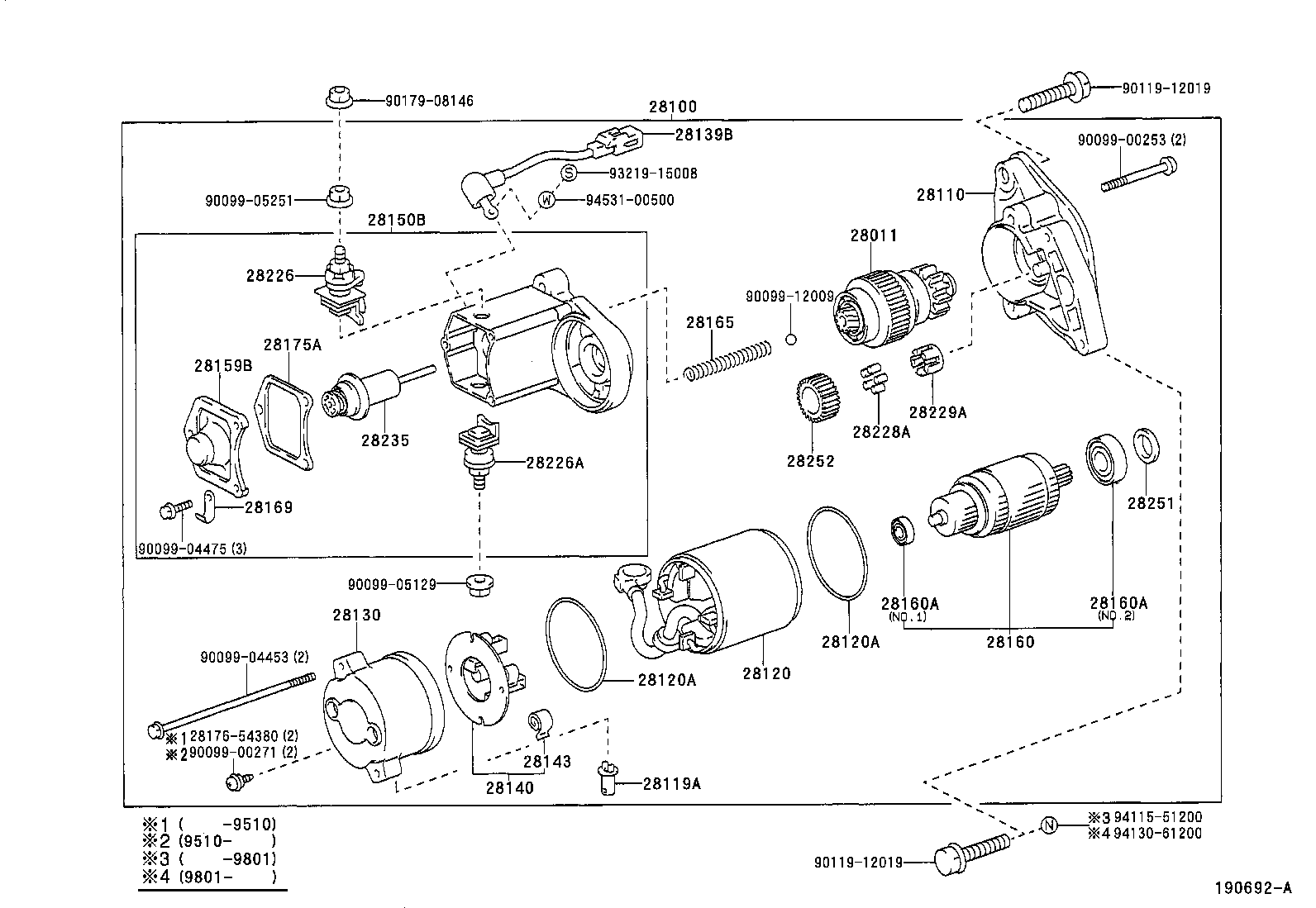

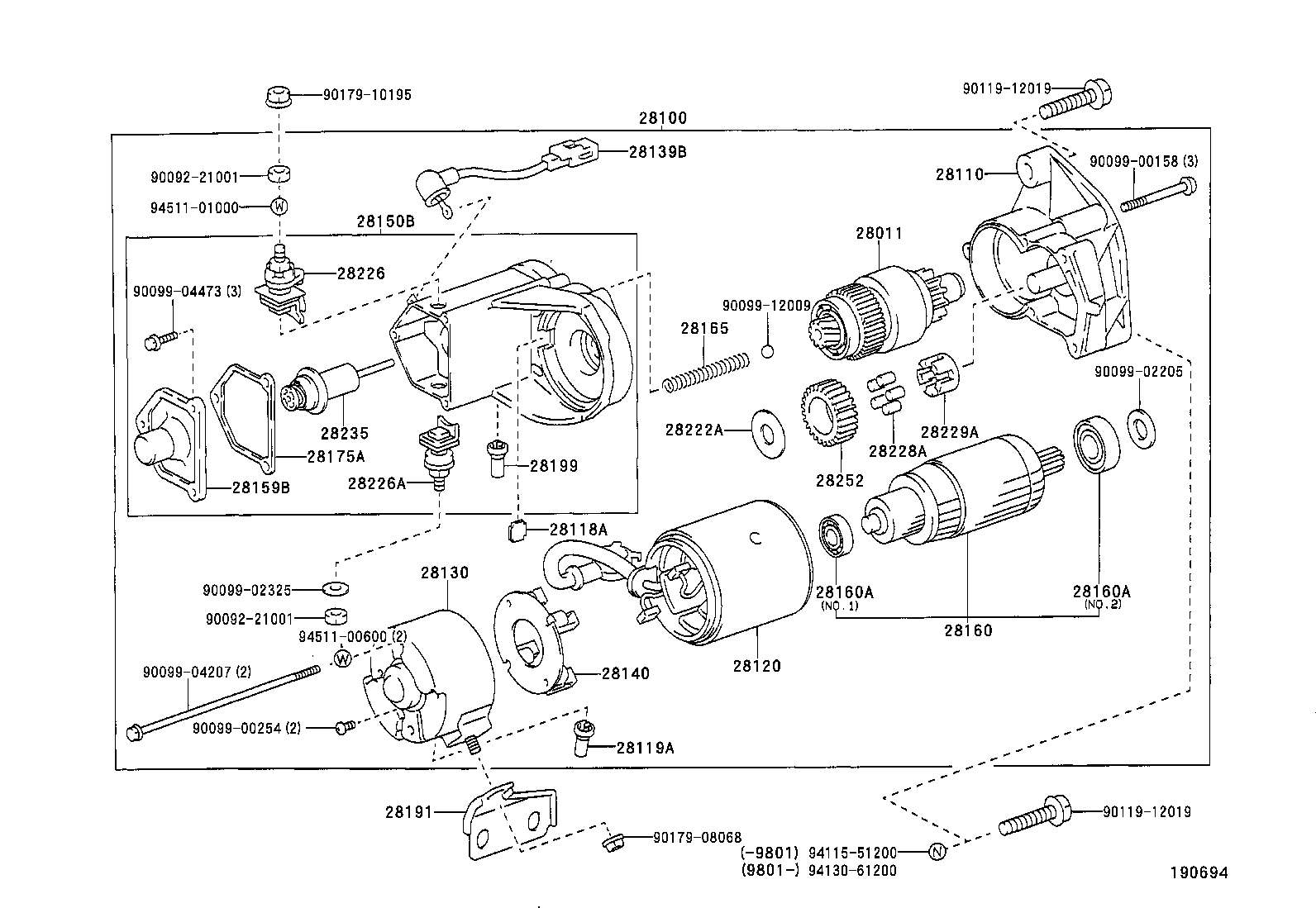

12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72130 |
3Y..YY101,121,131,201,211 12V 1.0KW,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28100-72130 |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72130 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-70040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3Y..YY211;3L,5L,3Y..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3Y#..YY211;3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3Y..YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08068 | ||||
| 90179-10195 | ||||
| 94115-51200 | ||||
| 94130-61200 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
(9505- )

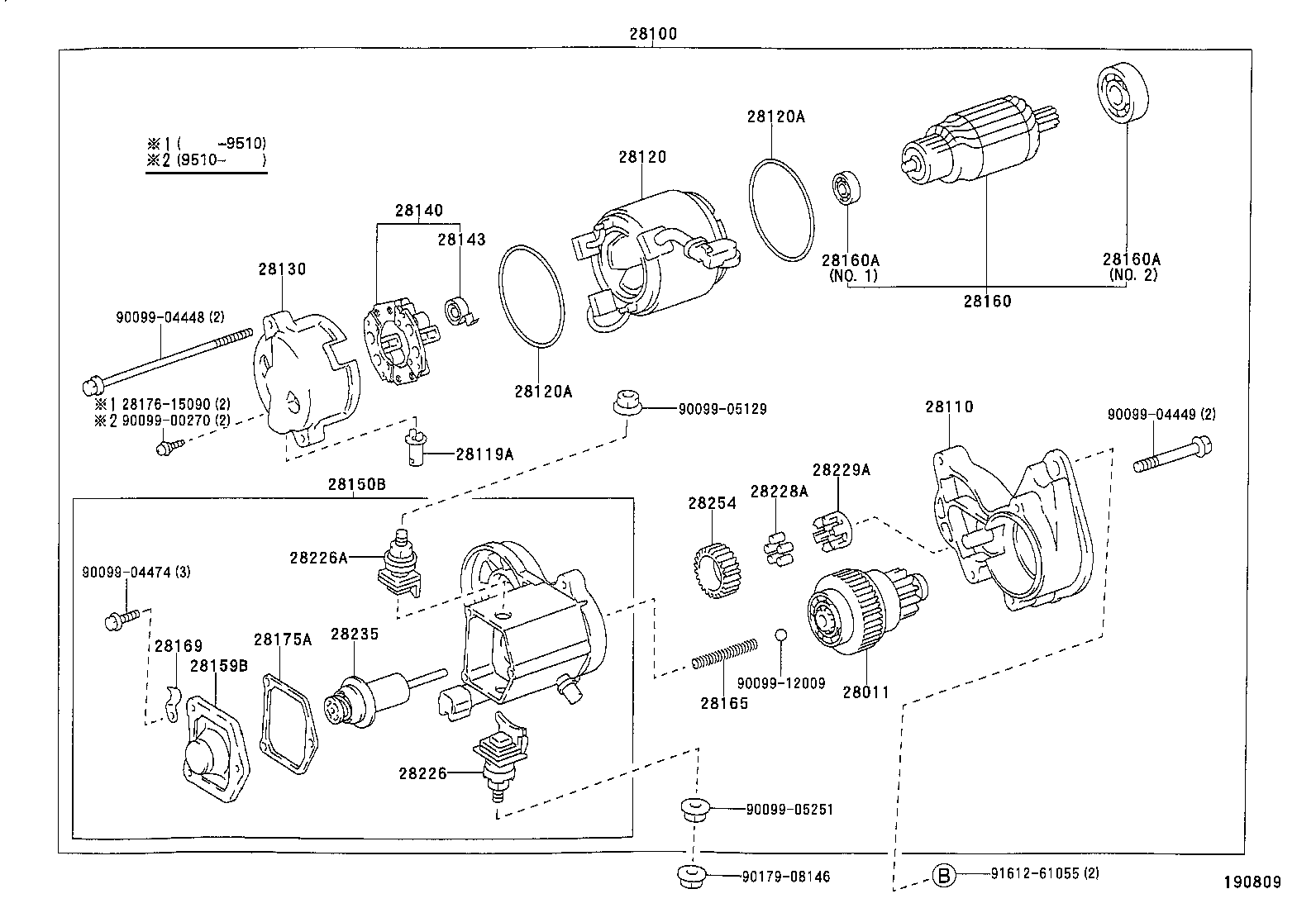

12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72130 |
3Y..YY101,121,131,201,211 12V 1.0KW,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28100-72130 |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3Y#..LY16#,YY101,121,131,201,211 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72130 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-70040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3Y..YY211;3L,5L,3Y..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3Y#..YY211;3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61055 | ||||
(9505- )
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-72130 |
3Y..YY101,121,131,201,211 12V 1.0KW,ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=28100-72130 |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3Y#..LY16#,YY101,121,131,201,211 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72130 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10113 |
3Y..YY101,121,131,201,211 NO.2 |
1 | ||
| 28253-45020 |
3Y..YY101,121,131,201,211 NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-70040 |
3Y..YY101,121,131,201,211 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3Y..YY211;3L,5L,3Y..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
3Y#..YY211;3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3Y..YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91612-61055 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
