Toyota Dyna 150/toyoace g15 YY201 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16321 - INLET, WATER
16321-71010	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	1
16331 - OUTLET, WATER
16331-71010	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	1
16331A - THERMOSTAT
90916-03046	3Y#..YY101,121,131,201,211 *WAX 82−95	05/1995 - 12/2999	1
16341 - GASKET, WATER OUTLET
16341-71011	3Y#..YY101,121,131,201,211	05/1995 - 07/1997	1
16361 - FAN
16361-38010	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	1
16381 - BAR, FAN BELT ADJUSTING
16381-73011	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	1
16400 - RADIATOR ASSY
16400-73480	3Y#..YY201,211..MTM	05/1995 - 08/1997	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54280	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	05/1995 - 12/2999	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54280	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	05/1995 - 12/2999	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16567-58010	3Y#..YY101,121,131,201,211..T1,T2,T3,T4 長さ=1670	05/1995 - 12/2999	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	2
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078	3Y#..YY201,211..T1,T2,T3,T4 *H,L=120	05/1995 - 11/1995	1
90445-12078	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	11/1995 - 12/2999	1
16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078	3Y#..YY201,211..T1,T2,T3,T4 *H,L=120	05/1995 - 11/1995	1
90445-12078	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	11/1995 - 12/2999	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54250	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	05/1995 - 12/2999	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54250	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	05/1995 - 12/2999	1
16505 - SUPPORT SUB-ASSY, RADIATOR, RH
16505-54040	3Y#..YY201,211	05/1995 - 12/2999	1
16523A - CUSHION, RADIATOR SUPPORT
16523-54050	3Y#..YY201,211	05/1995 - 12/2999	2
16523A - CUSHION, RADIATOR SUPPORT
16523-54050	3Y#..YY201,211	05/1995 - 12/2999	2
16534 - SUPPORT, RADIATOR, NO.2
16534-54030	3Y#..YY201,211	05/1995 - 12/2999	1
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-71010	3Y#..YY101,201,211	05/1995 - 12/2999	1
16571 - HOSE, RADIATOR, INLET
16571-73130	3Y#..YY201,211	05/1995 - 12/2999	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	2
16572 - HOSE, RADIATOR, OUTLET
16572-73110	3Y#..YY201,211	05/1995 - 12/2999	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002	3Y#..YY101,121,131,201,211	05/1995 - 12/2999	2
16582 - BRACKET, RADIATOR, NO.1
16582-54020	3Y#..YY201,211	05/1995 - 12/2999	1
16583 - BRACKET, RADIATOR, NO.2
16583-54020	3Y#..YY201,211	05/1995 - 12/2999	1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-54130	3Y#..YY101,121,131,201,211..T1,T2,T3,T4	05/1995 - 12/2999	1
16701 - SHROUD SUB-ASSY, FAN
16711-73130	3Y#..YY201,211	05/1995 - 12/2999	1
Common parts
16581-73010
90119-06144
90119-08A46
90119-10180
90122-08012
90179-06070
90179-08061
90179-08126
90404-53064
90440-11043
90469-12009
90469-12010
90540-10022
90540-11008
90949-01A45
91611-60825
91621-40812
91621-40820
91621-40855
91621-60612
91621-60816
91631-40828
91651-40616
91651-40814
94130-00802
94613-10800
Linked diagrams
1605
2601
2602
8716

YY201-TKMFS (1995)

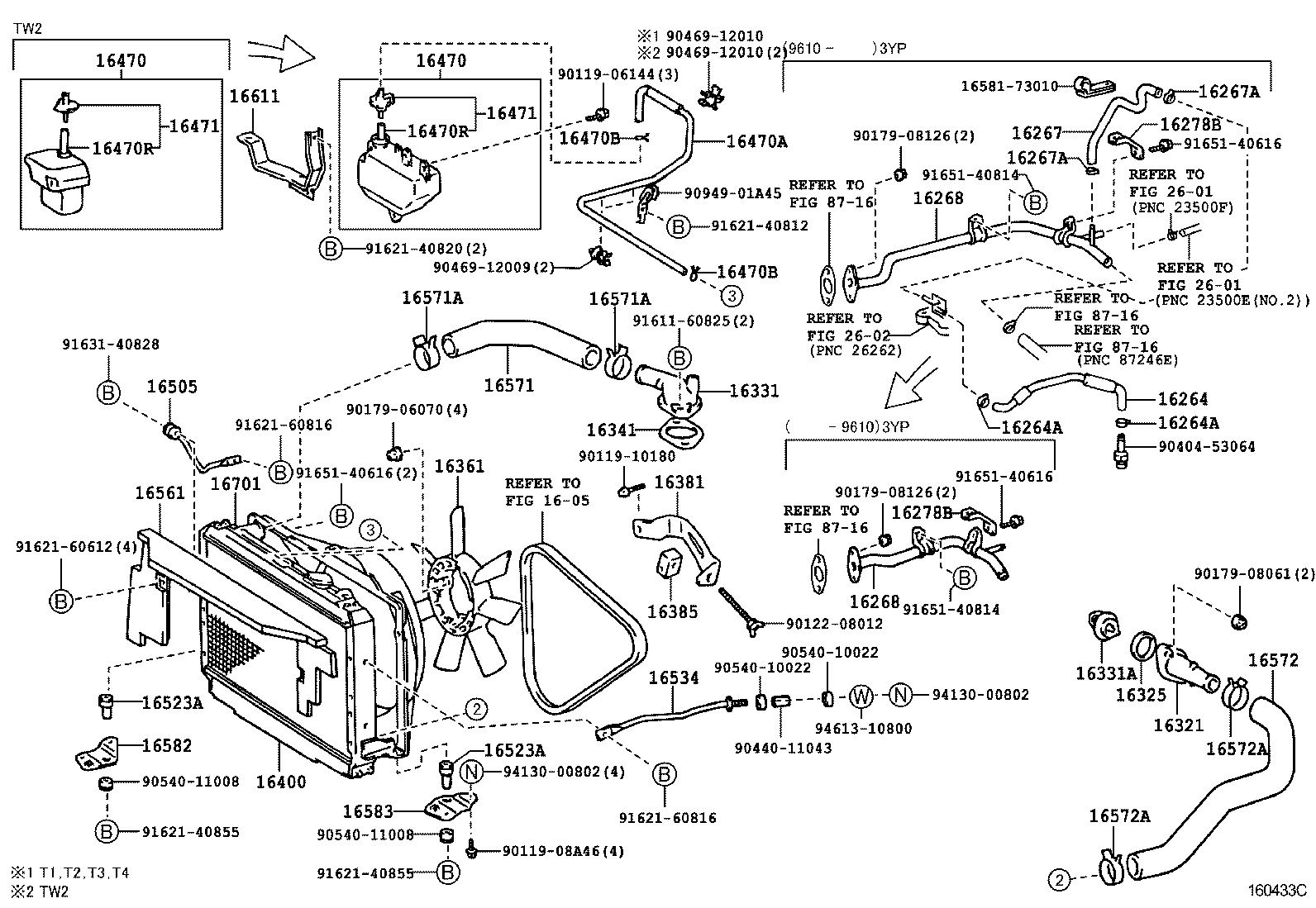

ILLUST NO. 1 OF 2(9505- )3Y#..YY201,211

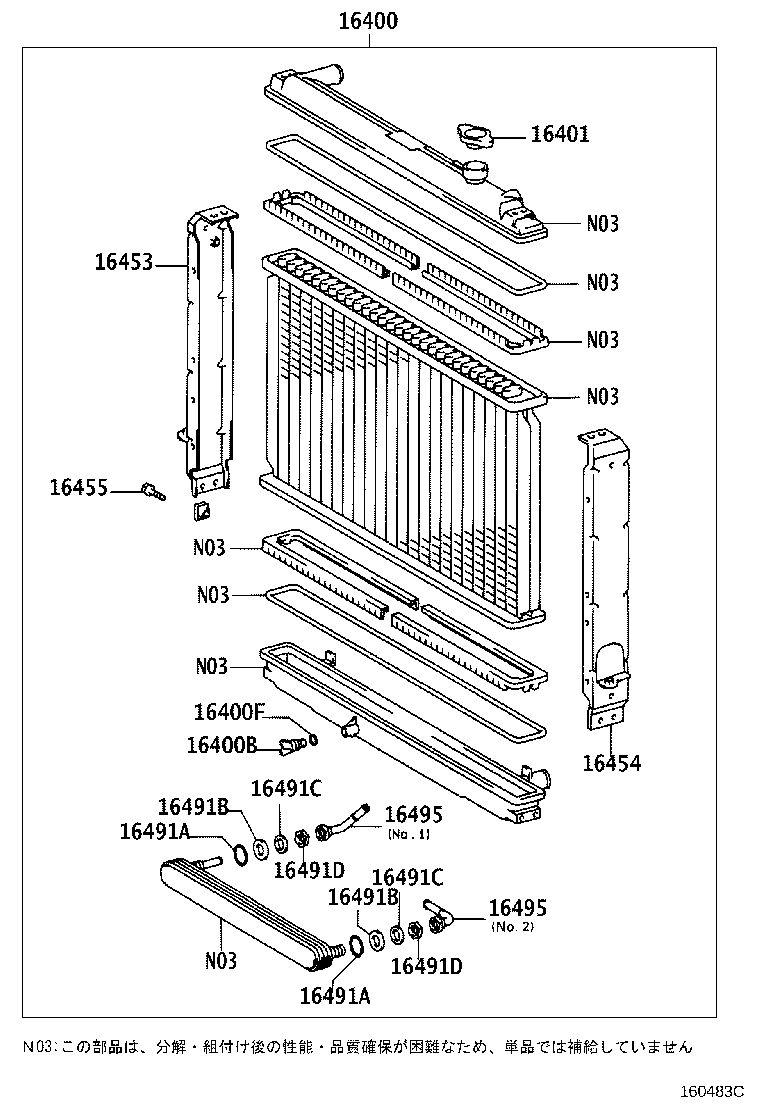

ILLUST NO. 2 OF 2(9505- )3Y#..YY101,121,131,201,211
