YY201-TGMGS (1995)
Toyota Dyna 150/Toyoace G15

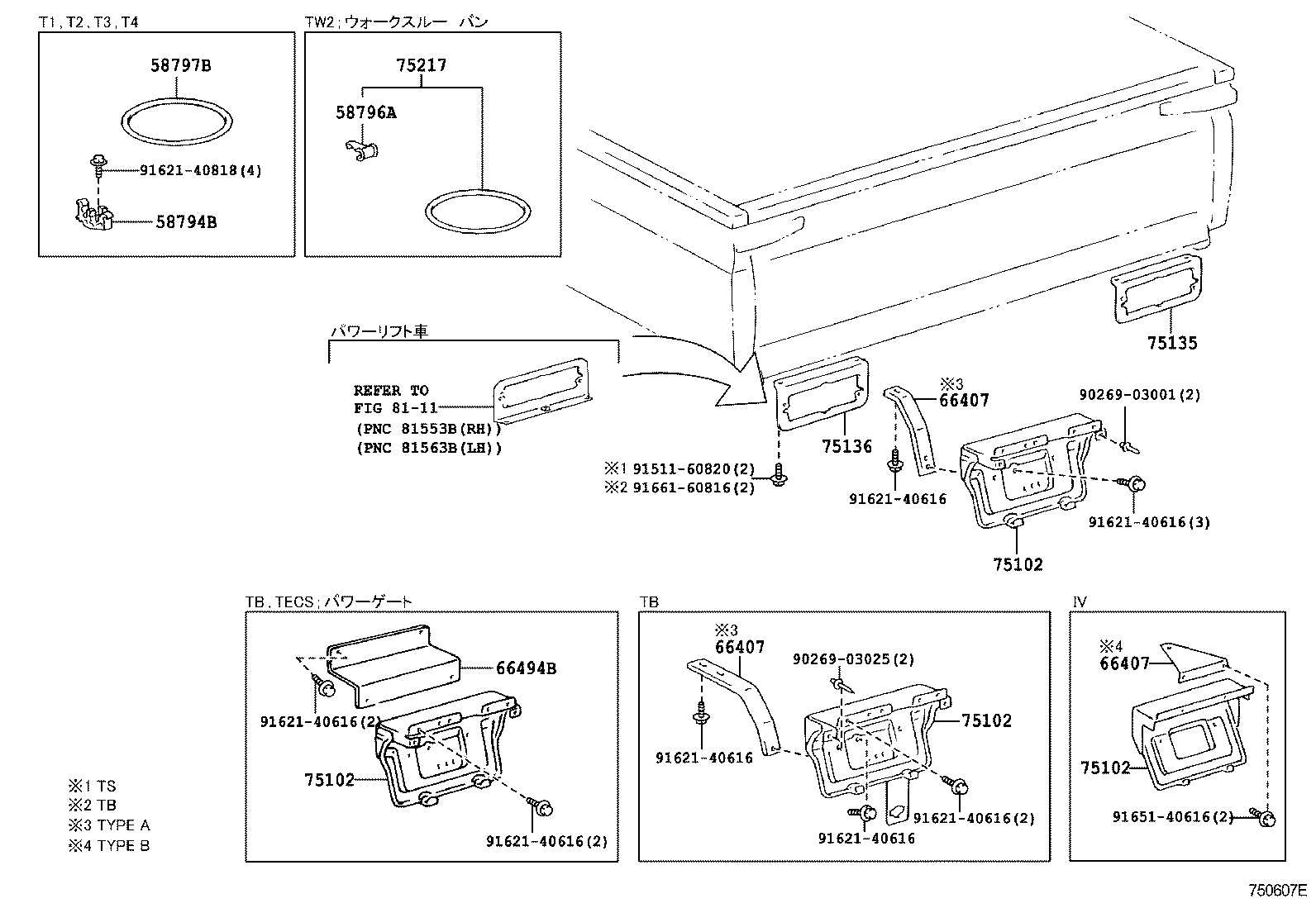

ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58794B - SUPPORT, JACK HANDLE | ||||
| 58794-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
2 | ||
| 58797B - BAND, JACK CLAMP | ||||
| 58797-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4 |
1 | ||
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66493-25020 |
LY211,YY201,211..(T2,T4,TW2)..TB..CBU;LY10#,11#,12#,13#,16#,201,212,YY121,131..TB..CBU TECS=ﾕｿｳ ｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66493-25020 |
LY211,YY201,211..(T2,T4,TW2)..TB..CBU;LY10#,11#,12#,13#,16#,201,212,YY121,131..TB..CBU TECS=ﾕｿｳ ｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 66407 - STAY SUB-ASSY, LICENSE PLATE BRACKET | ||||
| 66493-25020 |
LY211,YY201,211..(T2,T4,TW2)..TB..CBU;LY10#,11#,12#,13#,16#,201,212,YY121,131..TB..CBU TECS=ﾕｿｳ ｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ) & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
LY15#,16#..TB;LY10#,11#..T3..TB;LY15#..(T2,TW2)..TS;LY12#,13#,20#,21#,YY121,131,201,211;LY10#,11#,16#,YY101..(T1,T2,TW2)..(125,1T);LY10#,11#,15#,16#,YY101..T3..125..(IV3,IV5) |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
LY15#,16#..TB;LY10#,11#..T3..TB;LY15#..(T2,TW2)..TS;LY12#,13#,20#,21#,YY121,131,201,211;LY10#,11#,16#,YY101..(T1,T2,TW2)..(125,1T);LY10#,11#,15#,16#,YY101..T3..125..(IV3,IV5) |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
LY15#,16#..TB;LY10#,11#..T3..TB;LY15#..(T2,TW2)..TS;LY12#,13#,20#,21#,YY121,131,201,211;LY10#,11#,16#,YY101..(T1,T2,TW2)..(125,1T);LY10#,11#,15#,16#,YY101..T3..125..(IV3,IV5) |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 66490-95019 |
LY15#,16#..TB;LY10#,11#..T3..TB;LY15#..(T2,TW2)..TS;LY12#,13#,20#,21#,YY121,131,201,211;LY10#,11#,16#,YY101..(T1,T2,TW2)..(125,1T);LY10#,11#,15#,16#,YY101..T3..125..(IV3,IV5) |
1 | ||
| 75135 - BRACKET, COMBINATION REAR LAMP, RH | ||||
| 75135-25040 |
LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU |
1 | ||
| 75136 - BRACKET, COMBINATION REAR LAMP, LH | ||||
| 75135-25040 |
LY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU |
1 | ||
| Common parts | ||||
| 90269-03001 | ||||
| 90269-03025 | ||||
| 91511-60820 | ||||
| 91621-40616 | ||||
| 91621-40818 | ||||
| 91651-40616 | ||||
| 91661-60816 | ||||
| Linked diagrams | ||||
| 8111 | ||||

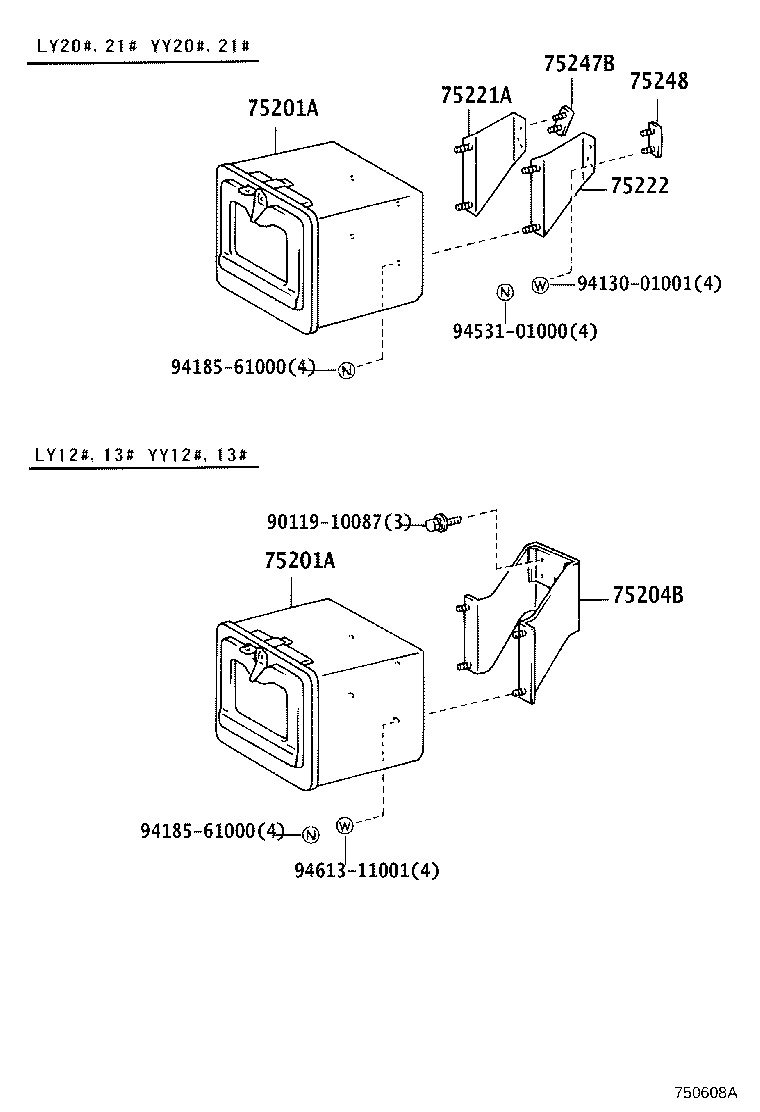

ILLUST NO. 2 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75201A - BOX, TOOL | ||||
| 75210-25010 |
LY211,YY211..MTM..WT..125;LY201,211,YY201,211..T2,T3,T4 |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75210-25010 |
LY211,YY211..MTM..WT..125;LY201,211,YY201,211..T2,T3,T4 |
1 | ||
| 75221A - BRACKET, TOOL BOX, RH | ||||
| 75221-25010 |
LY201,211,YY201,211..TB |
1 | ||
| 75221-25011 |
LY211,YY211..MTM..WT..125;LY20#,21#,YY201,211..T2,T3,T4 |
1 | ||
| 75222 - BRACKET, TOOL BOX, LH | ||||
| 75221-25011 |
LY211,YY211..MTM..WT..125;LY20#,21#,YY201,211..T2,T3,T4 |
1 | ||
| 75221-25010 |
LY201,211,YY201,211..TB |
1 | ||
| 75247B - SUPPORT, TOOL BOX | ||||
| 75247-25010 |
LY211,YY211..MTM..WT..125;LY20#,21#,YY201,211..T2,T3,T4 |
1 | ||
| 75248 - SUPPORT, TOOL BOX, REAR | ||||
| 75248-25010 |
LY211,YY211..MTM..WT..125;LY20#,21#,YY201,211..T2,T3,T4 |
1 | ||
| Common parts | ||||
| 90119-10087 | ||||
| 94130-01001 | ||||
| 94185-61000 | ||||
| 94531-01000 | ||||
| 94613-11001 | ||||
