YY201-TGMGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996

Engine 3Y

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

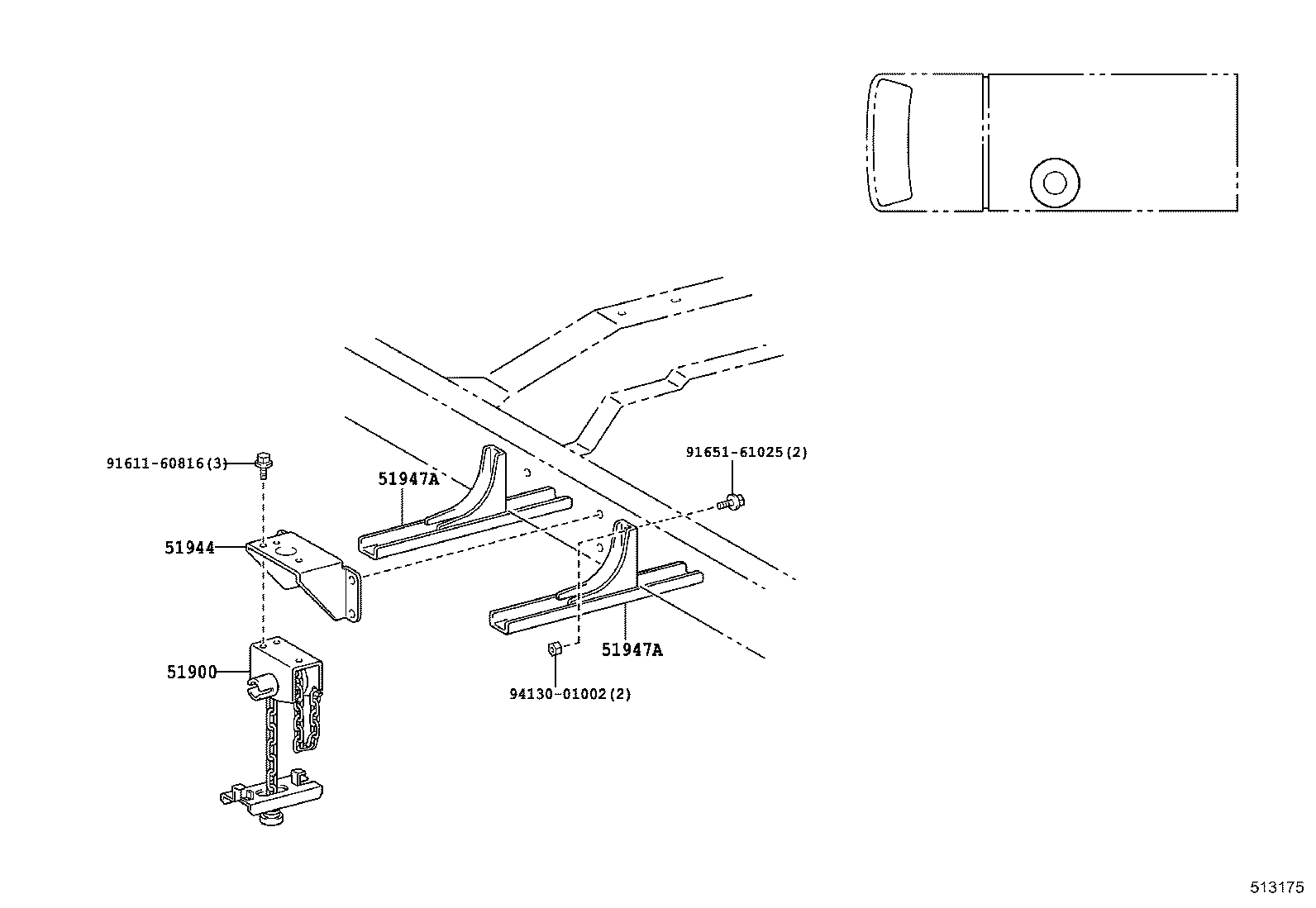

(9505- )YY211..T2..15T ; (9505- )LY20#,21#,YY201..T2

Click highlighted areas on diagram

ﾋﾀﾞﾘｶﾞﾜ1ﾀﾞﾝ

diagram

Part #	Description	Period	Qty	Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170	LY20#,21#,YY201,211..T2..WT ﾘﾔ	05/1995 - 07/2001	1
51900-25060	LY20#,21#,YY201,211..T2..WT 左側	05/1995 - 07/2001	1
51900-25080	LY20#,21#,YY201,211..(T2,TW2)..WT ﾘﾔ 2ﾀﾞﾝﾂﾞﾐｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ,ﾘﾔ	05/1995 - 12/2999	1
51944 - BRACKET, SPARE WHEEL CARRIER, NO.2
51944-25050	YY211..T2..15T;LY20#,21#,YY201..T2	05/1995 - 12/2999	1
51947A - PLATE, SPARE WHEEL CARRIER HINGE
51947-25010	YY211..T2..15T;LY20#,21#,YY201..T2	05/1995 - 12/2999	2
51947A - PLATE, SPARE WHEEL CARRIER HINGE
51947-25010	YY211..T2..15T;LY20#,21#,YY201..T2	05/1995 - 12/2999	2
Common parts
91611-60816
91651-61025
94130-01002

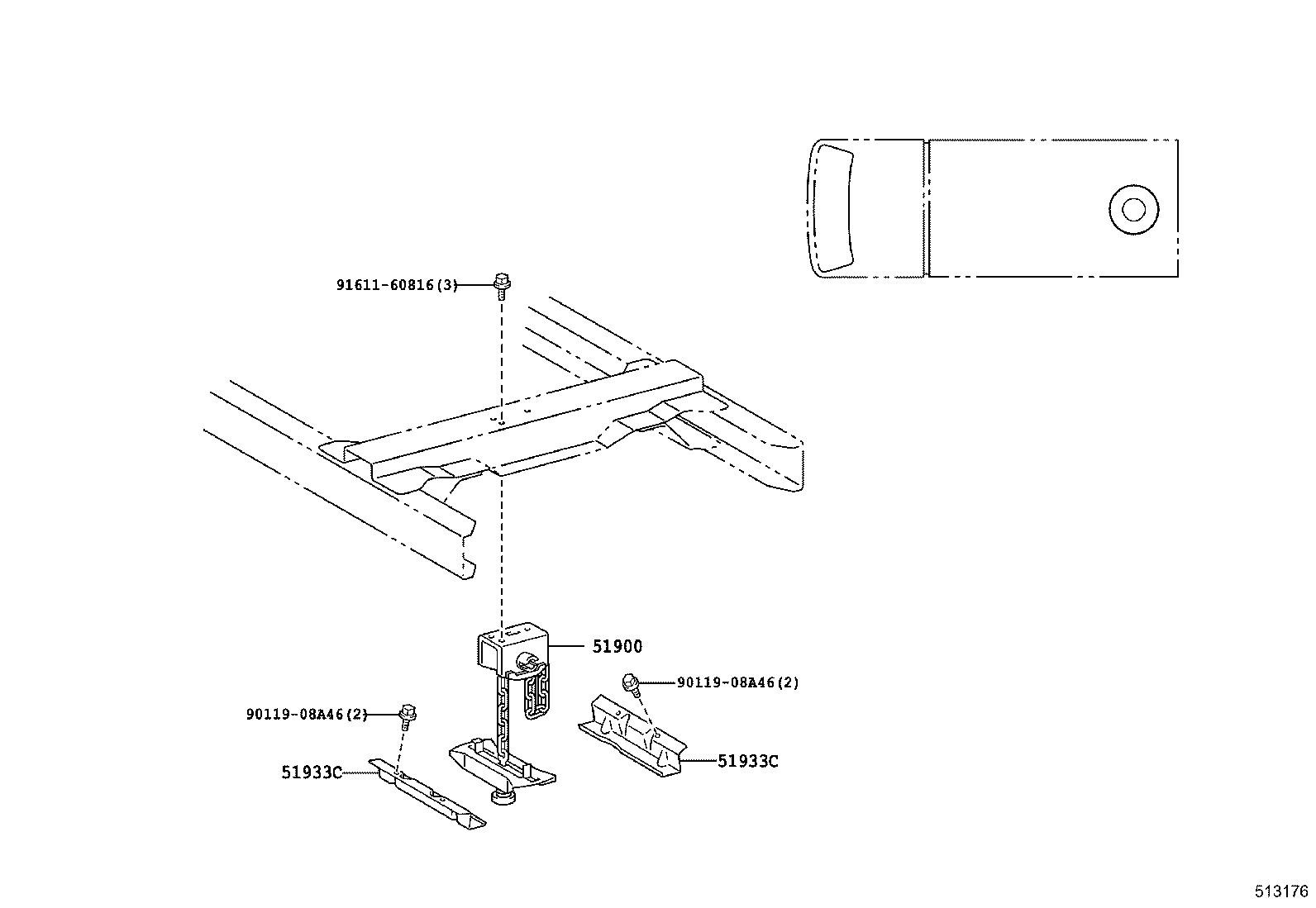

(9505- )YY211..T2..WT..15T ; (9505- )LY201,21#,YY201..T2..WT

Click highlighted areas on diagram

ﾘﾔ1ﾀﾞﾝ

diagram

Part #	Description	Period	Qty	Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170	LY20#,21#,YY201,211..T2..WT ﾘﾔ	05/1995 - 07/2001	1
51900-25060	LY20#,21#,YY201,211..T2..WT 左側	05/1995 - 07/2001	1
51900-25080	LY20#,21#,YY201,211..(T2,TW2)..WT ﾘﾔ 2ﾀﾞﾝﾂﾞﾐｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ,ﾘﾔ	05/1995 - 12/2999	1
51933C - STOPPER, SPARE WHEEL
51933-25050	YY211..T2..WT..15T;LY20#,21#,YY201..T2..WT LH,ｻｲﾄﾞ	05/1995 - 12/2999	2
51903-25010	LY12#,13#,20#,21#,YY121,131,201,211..(T2,TW2)..WT	05/1995 - 12/2999	1
51933C - STOPPER, SPARE WHEEL
51933-25050	YY211..T2..WT..15T;LY20#,21#,YY201..T2..WT LH,ｻｲﾄﾞ	05/1995 - 12/2999	2
51903-25010	LY12#,13#,20#,21#,YY121,131,201,211..(T2,TW2)..WT	05/1995 - 12/2999	1
Common parts
90119-08A46
91611-60816

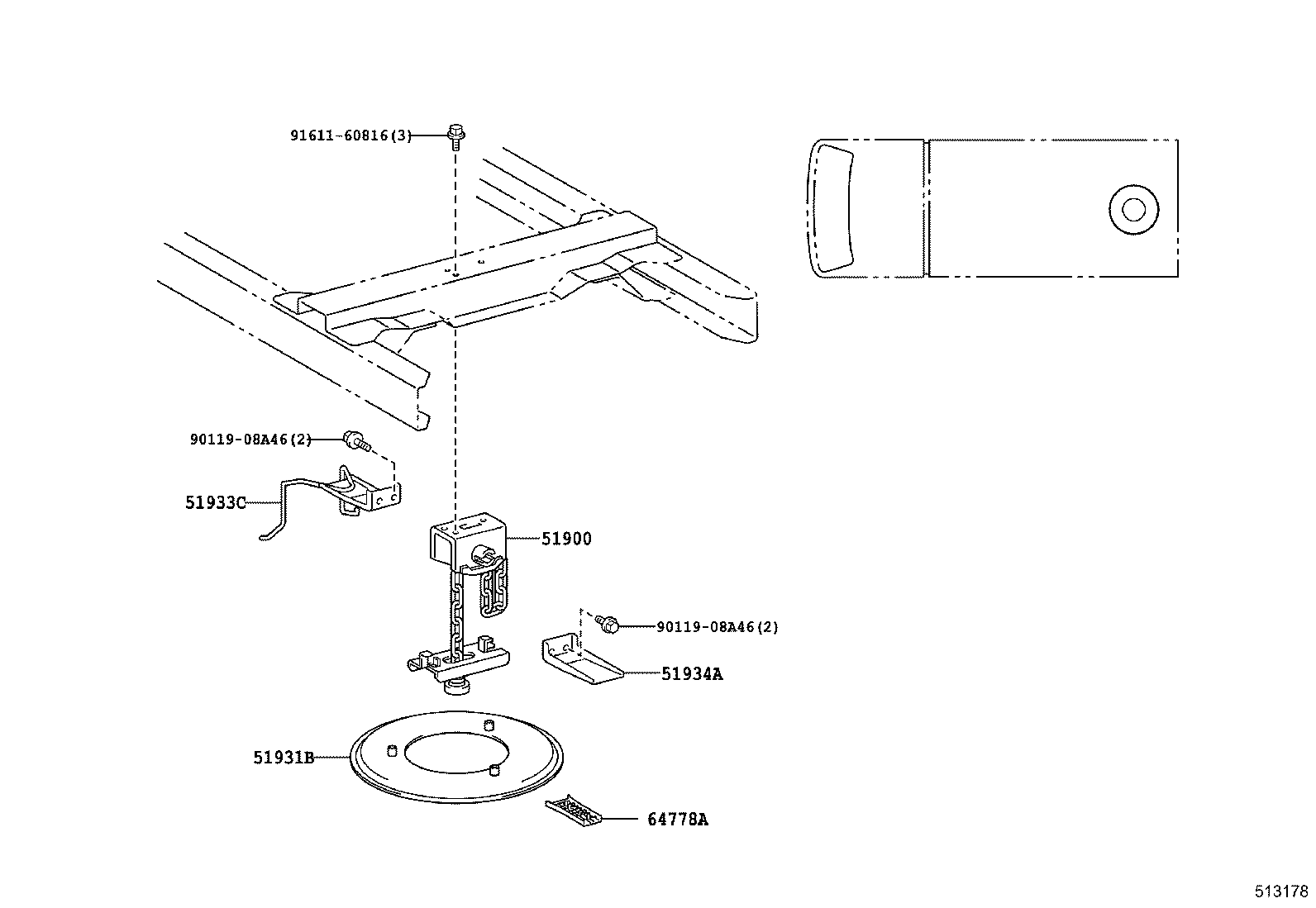

(9505- )LY12#,13#,20#,21#,YY121,131,201,211..T2,TW2..WT

Click highlighted areas on diagram

ﾘﾔ2ﾀﾞﾝ

diagram

Part #	Description	Period	Qty	Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170	LY20#,21#,YY201,211..T2..WT ﾘﾔ	05/1995 - 07/2001	1
51900-25060	LY20#,21#,YY201,211..T2..WT 左側	05/1995 - 07/2001	1
51900-25080	LY20#,21#,YY201,211..(T2,TW2)..WT ﾘﾔ 2ﾀﾞﾝﾂﾞﾐｽﾍﾟｱﾎｲ-ﾙｷﾔﾘｱ,ﾘﾔ	05/1995 - 12/2999	1
51931B - PLATE, SPARE WHEEL CARRIER BASE
51931-25030	LY211..WT..125..IV3;LY211..(T2,TW2)..WT..CBU;LY20#,YY201,211..(T2,TW2)..WT	05/1995 - 12/2999	1
51933C - STOPPER, SPARE WHEEL
51933-25050	YY211..T2..WT..15T;LY20#,21#,YY201..T2..WT LH,ｻｲﾄﾞ	05/1995 - 12/2999	2
51903-25010	LY12#,13#,20#,21#,YY121,131,201,211..(T2,TW2)..WT	05/1995 - 12/2999	1
51934A - STOPPER, SPARE WHEEL, NO.2
51934-25020	LY12#,13#,20#,21#,YY121,131,201,211..(T2,TW2)..WT	05/1995 - 12/2999	1
Common parts
90119-08A46
91611-60816
