YY201-TGMGS (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

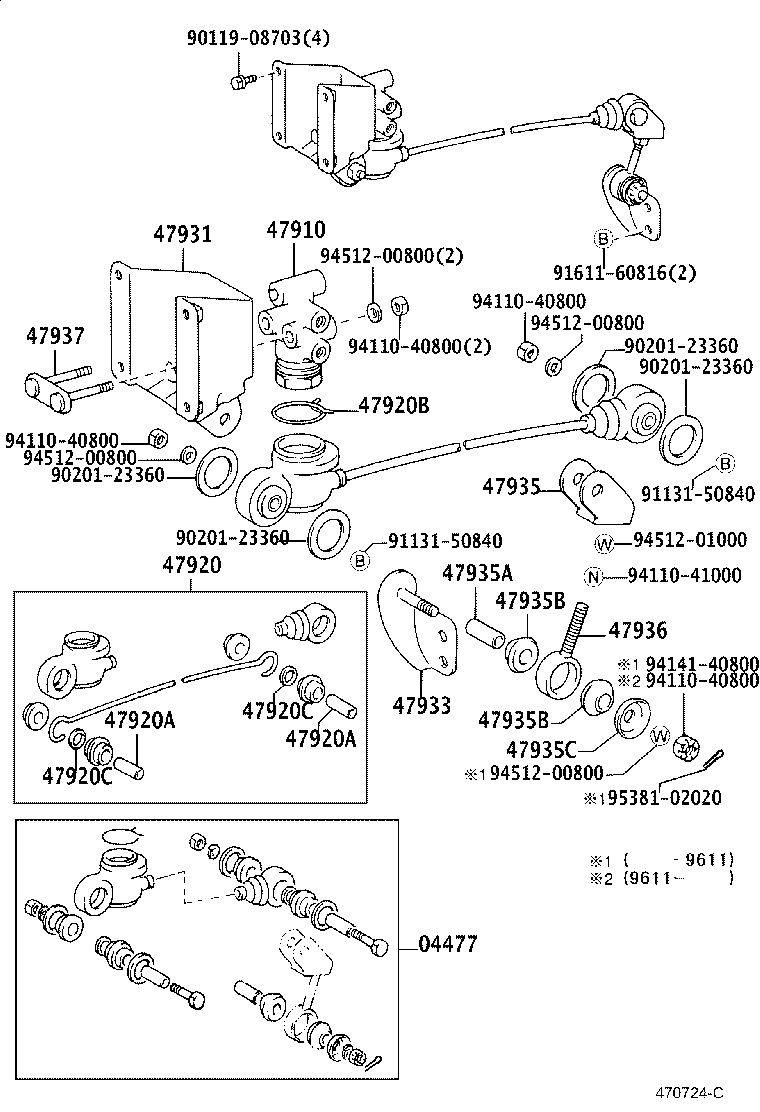

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411040800 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LY201,211,YY201,211

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26171

LY202,212..T2;LY201,YY201..T1,TW2;LY211,YY211..T2..ST;LY201,211,YY201,211..(T2,TW2)..WT

 1
47920 - SPRING ASSY, LOAD SENSING
47920-25020

LY202;LY201,21#,YY201,211..T2..WT;LY201,21#,YY201,211..T1,T3,T4,TW2

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-25030

LY20#,YY201..T1,T2,TW2;LY21#,YY211..(T2,TW2)..WT

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36050

LY201,211,YY201,211

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
Common parts
90119-08703
90201-23360
91131-50840
91611-60816
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

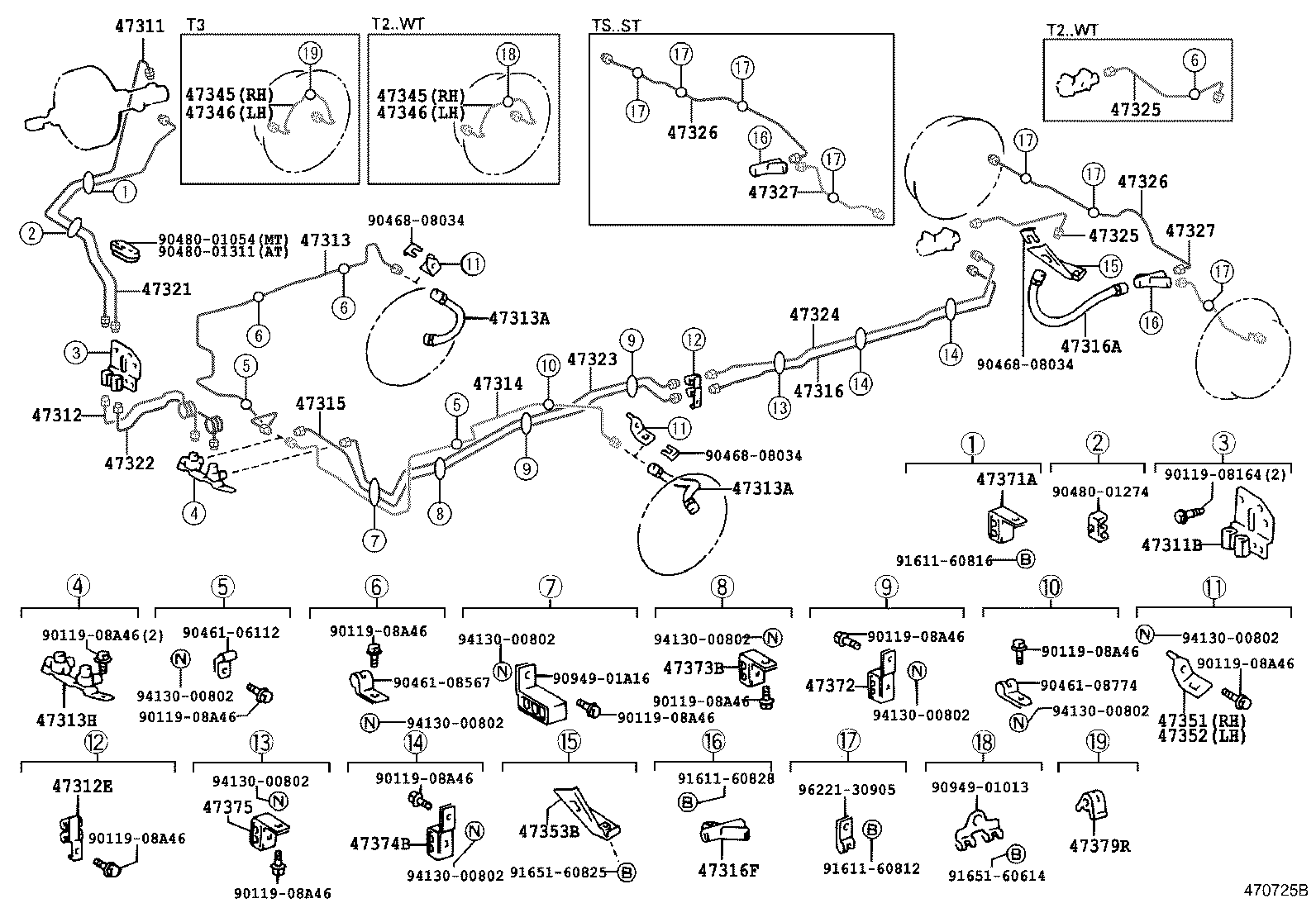

ILLUST NO. 1 OF 2(9505- )LY20#,YY201

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313H 47314 47315 47316 47316A 47316F 47321 47322 47323 47324 47325 47325 47326 47326 47327 47327 47345 47345 47346 47346 47351 47352 47353B 47371A 47372 47373B 47374B 47375 47379R 9011908164 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046106112 9046108567 9046108774 9046808034 9046808034 9046808034 9048001054 9048001274 9048001311 9094901013 9094901A16 9161160812 9161160816 9161160828 9165160614 9165160825 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25230

LY201,211,YY201,211..(T2,TW2)..WT

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12018

LY20#,21#,YY201,211

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25110

LY201,211,YY201,211

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10222

LY20#,21#,YY201,211

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25120

LY201,211,YY201,211

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33955

LY201,211,YY201,211..T2..WT;LY201,211,YY201,211..T1,T3,TW2

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33955

LY201,211,YY201,211..T2..WT;LY201,211,YY201,211..T1,T3,TW2

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90414-10015

LY20#,21#,YY201,211

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-25150

LY20#,21#,YY201,211

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-25080

LY20#,21#,YY201,211

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25140

LY20#,YY201..T1,T2,TW2

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02646

LY201,211,YY201,211..(T2,TW2)..WT

 1
47316F - WAY, 3(FOR REAR BRAKE TUBE)
90413-10147

LY16#..15T;LY16#..TW2;LY20#,21#,YY201,211;LY12#,13#,YY121,131..ST

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25090

LY201,211,YY201,211..(T2,TW2)..WT

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25100

LY20#,21#,YY201,211

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25120

LY20#,21#,YY201,211

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25260

LY20#,YY201..T1,T2,TW2

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25230

LY20#,21#,YY201,211..(T2,TW2)..WT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25230

LY20#,21#,YY201,211..(T2,TW2)..WT

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25190

YY211..(T2,TW2)..MTM..WT;LY201,211,YY201..(T2,TW2)..WT

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25190

YY211..(T2,TW2)..MTM..WT;LY201,211,YY201..(T2,TW2)..WT

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25150

YY211..(T2,TW2)..MTM..WT;LY201,211,YY201..(T2,TW2)..WT

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25150

YY211..(T2,TW2)..MTM..WT;LY201,211,YY201..(T2,TW2)..WT

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25040

YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25040

YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47346-25020

YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47346-25020

YY211..(T2,TW2)..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..(T2,TW2)..WT

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25081

LY20#,21#,YY201,211

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25091

LY20#,21#,YY201,211

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-25080

LY20#,21#,YY201,211..(T2,TW2)..WT

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47373-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-25010

LY20#,21#,YY201,211

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47373-25010

LY20#,21#,YY201,211

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-25010

LY10#,11#,12#,13#,15#,16#,20#,YY101,121,131,201

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47373-25010

LY201,211,YY201,211

 1
Common parts
90119-08164
90119-08A46
90461-06112
90461-08567
90461-08774
90468-08034
90480-01054
90480-01274
90480-01311
90949-01013
90949-01A16
91611-60812
91611-60816
91611-60828
91651-60614
91651-60825
94130-00802
96221-30905
