YY201-PSMBS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

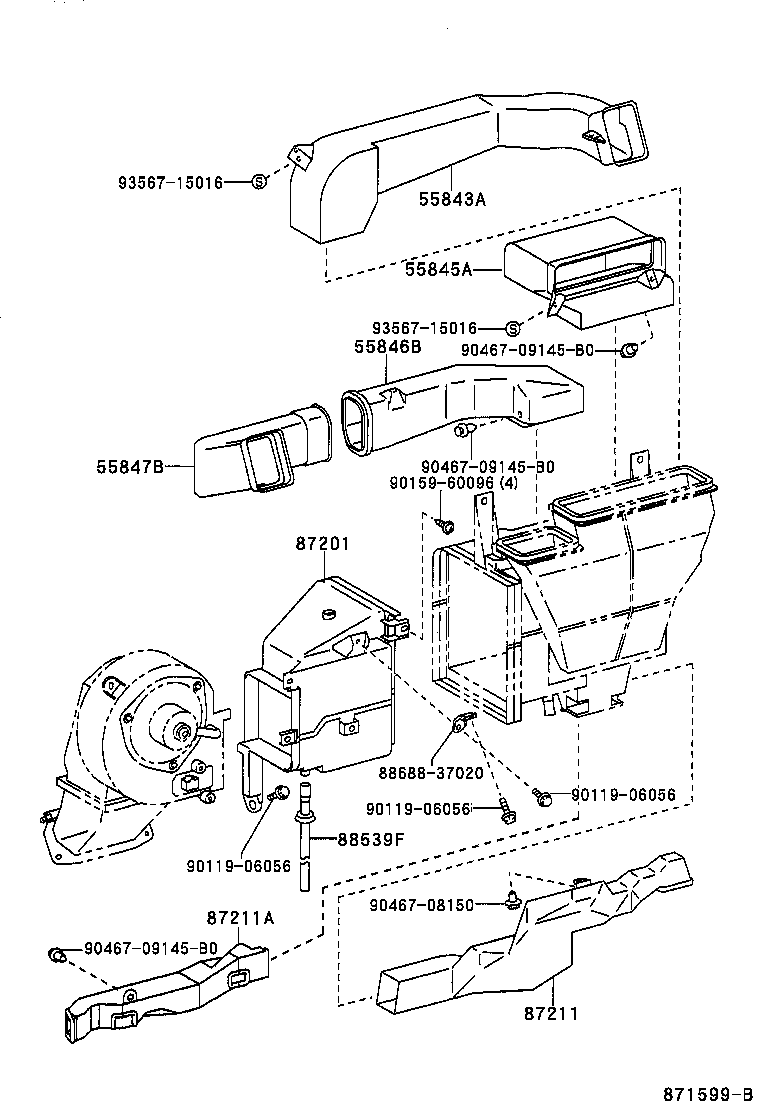

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

DUCT

diagram 55843A 55845A 55846B 55847B 87201 87211 87211A 88539F 8868837020 9011906056 9011906056 9011906056 9015960096 9046708150 9046709145B0 9046709145B0 9046709145B0 9356715016 9356715016
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-37010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
87211 - DUCT, AIR, NO.1
87211-37020

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
88539F - HOSE, DRAIN
88539-37020

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
Common parts
88688-37020
90119-06056
90159-60096
90467-08150
90467-09145B0
93567-15016

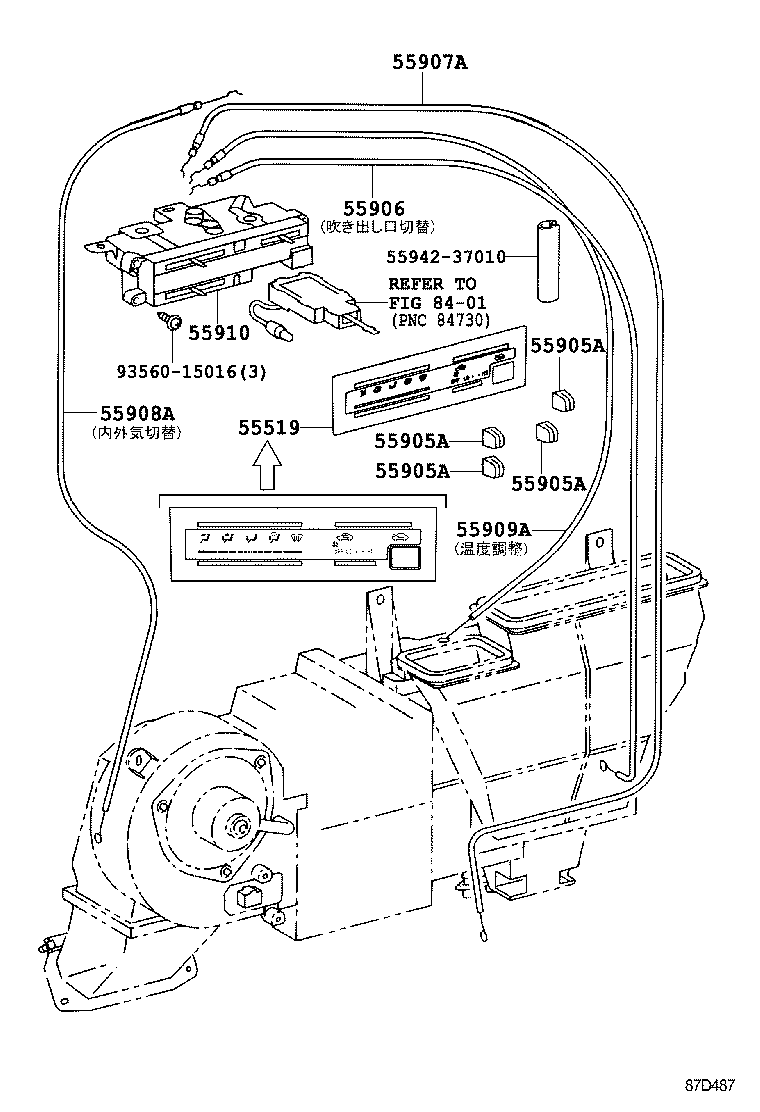

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

CONTROL

diagram 55519 55905A 55905A 55905A 55905A 55906 55907A 55908A 55909A 55910 5594237010 8401 9356015016
Part # Description Qty Price
55519 - PLATE, HEATER CONTROL NAME
55519-37010

LY101,111,121,131,151,161,201,211,YY101,121,131,201,211

 1
55905A - KNOB, HEATER CONTROL
55905-89115

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 4
55905A - KNOB, HEATER CONTROL
55905-89115

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 4
55906 - CABLE SUB-ASSY, HEATER CONTROL
55906-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
Common parts
55942-37010
93560-15016
Linked diagrams
8401
