YY201-PSMBS3 (1995)

Toyota Dyna 150/Toyoace G15

Production May 1995 - Oct 1996
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3Y#..YY101,121,131,201,211

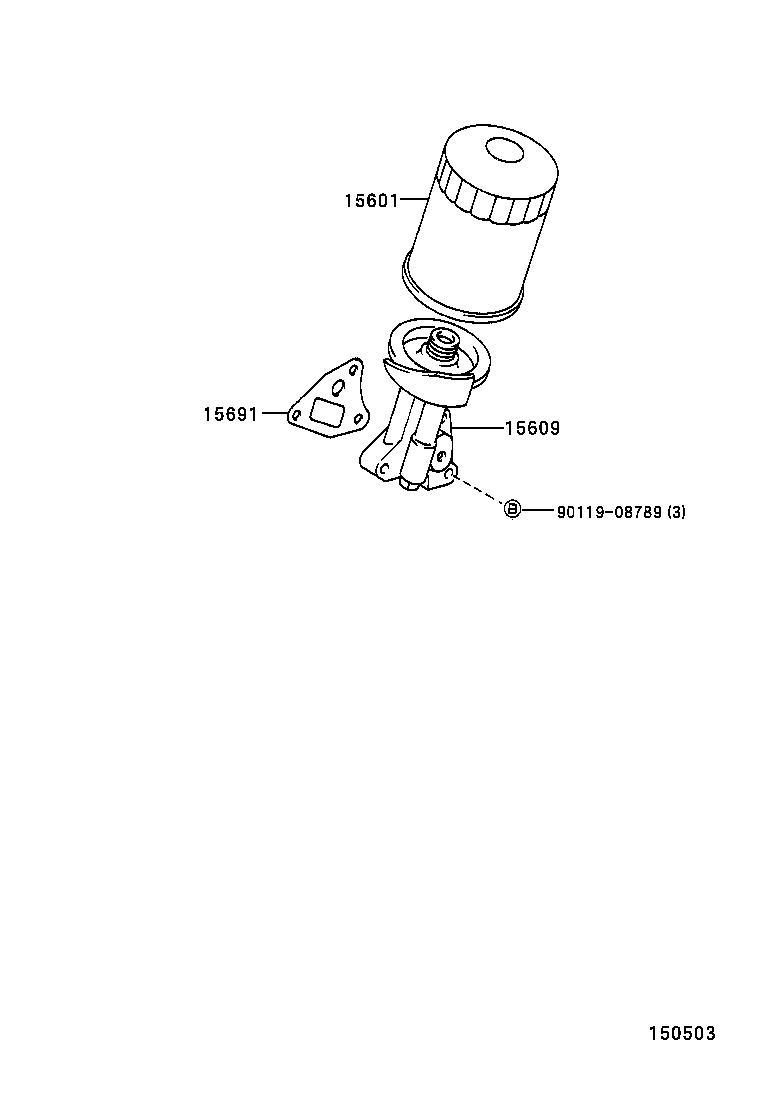

Click highlighted areas on diagram

diagram 15601 15609 15691 9011908789
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-10002

3Y..YY101,121,131,201,211

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-73020

3Y..YY101,121,131,201,211

 1
15691 - GASKET, OIL FILTER
15691-71011

3Y#..YY101,121,131,201,211

 1
Common parts
90119-08789
