YY201-PSMBS (1995)
Toyota Dyna 150/Toyoace G15
(9505-9610)LY201,YY201..TS..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-25081 |
YY211..ATM;LY16#..15T;LY16#..TW2;LY10#,11#,201,YY101,201..ST..(125,1T) |
1 | ||
| 46104 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46104-25071 |
YY211..ATM;LY16#..15T;LY16#..TW2;LY10#,11#,201,YY101,201..ST..(125,1T) |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-25030 |
LY201,YY201..TS..ST |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-20055 |
LY11#,16#..ST;LY201,YY201..TS..ST |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-25020 |
LY201,YY201..TS..ST |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-25020 |
LY201,YY201..TS..ST |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25092 |
LY201,YY201..TS..ST |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25250 |
LY201,YY201..T1,TW2 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-25010 |
LY201,YY201..TS..ST |
1 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-25011 |
YY211..ATM;LY201,YY201..TS..ST |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 下側 |
1 | ||
| 46469-60020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 上側 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 下側 |
1 | ||
| 46469-60020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 上側 |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90109-08206 | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90461-08645 | ||||
| 90464-00677 | ||||
| 90468-03016 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90468-16012 | ||||
| 90949-01502 | ||||
| 90949-01A11 | ||||
| 90949-01A14 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 94130-60600 | ||||

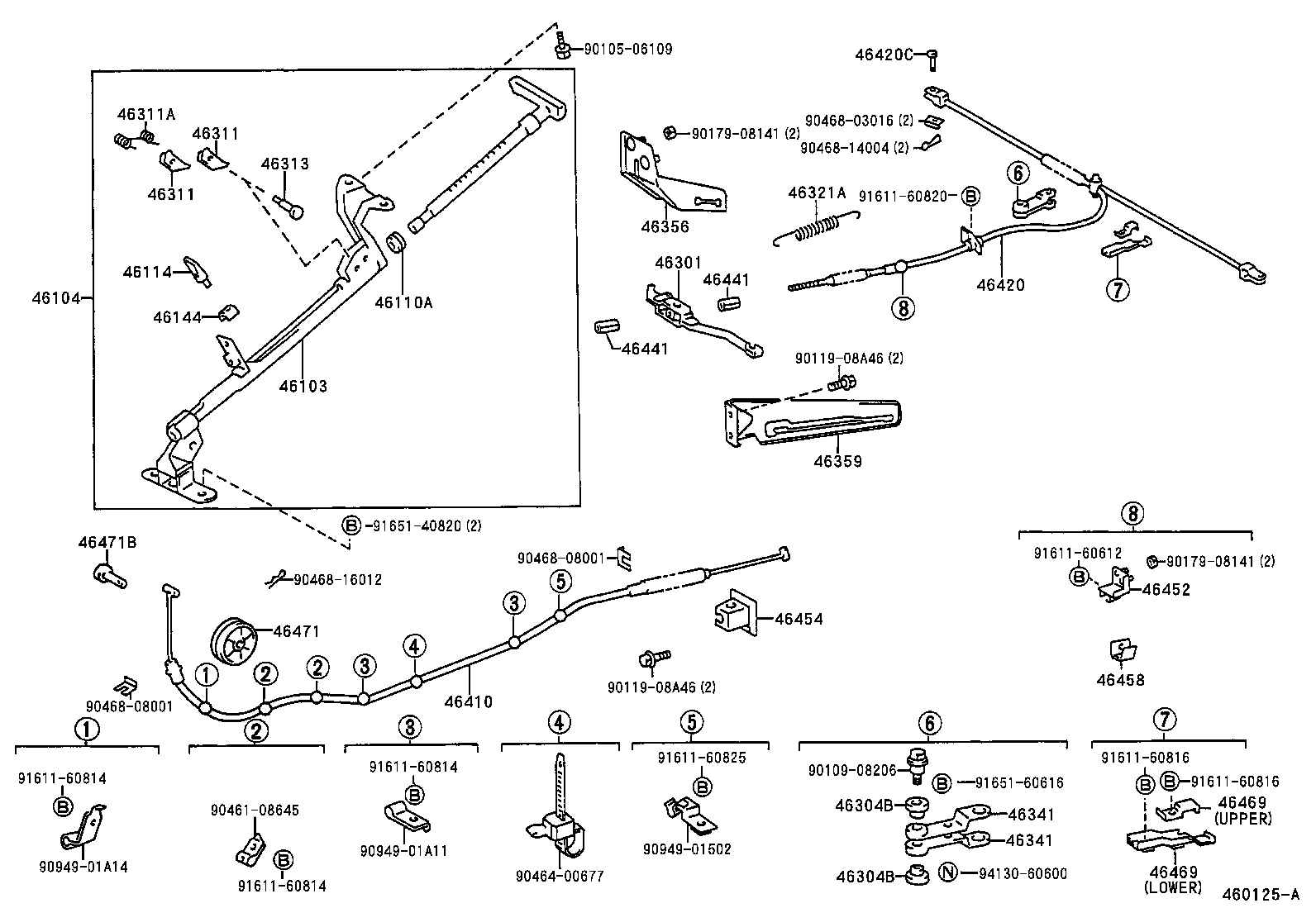

ILLUST NO. 1 OF 2(9505- )LY202,21# ; (9505- )YY211..MTM ; (9505- )LY201,YY201..WT ; (9505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-25081 |
YY211..ATM;LY16#..15T;LY16#..TW2;LY10#,11#,201,YY101,201..ST..(125,1T) |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-25030 |
LY201,YY201..TS..ST |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-25092 |
LY201,YY201..TS..ST |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25250 |
LY201,YY201..T1,TW2 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-08A46 | ||||
| 90170-06004 | ||||
| 90179-08057 | ||||
| 90461-08225 | ||||
| 90468-06076 | ||||
| 90949-01306 | ||||
| 90949-01307 | ||||
| 91112-81070 | ||||
| 91611-60612 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||
