YY131-TKMFS3 (1996)
Toyota Dyna 150/Toyoace G15
(9610- )LY10#,11#,15#,16#,YY101..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-25040 |
LY12#,13#,YY121,131 |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 90387-10004 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-10039 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311-26010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311-26010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 90508-08041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-18058 |
LY10#,15#,YY101 |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-18058 |
LY10#,15#,YY101 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26090 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26371 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46410-25120 |
LY12#,13#,YY121,131 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25270 |
LY12#,13#,YY121,131..MTM |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST |
2 | ||
| 46454 - BRACKET, CABLE RETAINER, FRONT | ||||
| 46454-26051 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LY162..WT;LY12#,13#,YY121,131 |
2 | ||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 下側 |
1 | ||
| 46469-60020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 上側 |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-25010 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 下側 |
1 | ||
| 46469-60020 |
LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST 上側 |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90109-08206 | ||||
| 90119-08A46 | ||||
| 90461-08645 | ||||
| 90464-00677 | ||||
| 90468-03016 | ||||
| 90468-06076 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90468-16012 | ||||
| 90949-01252 | ||||
| 90949-01A11 | ||||
| 90949-01A14 | ||||
| 90949-01B72 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-40820 | ||||
| 91651-60616 | ||||
| 94130-60600 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||

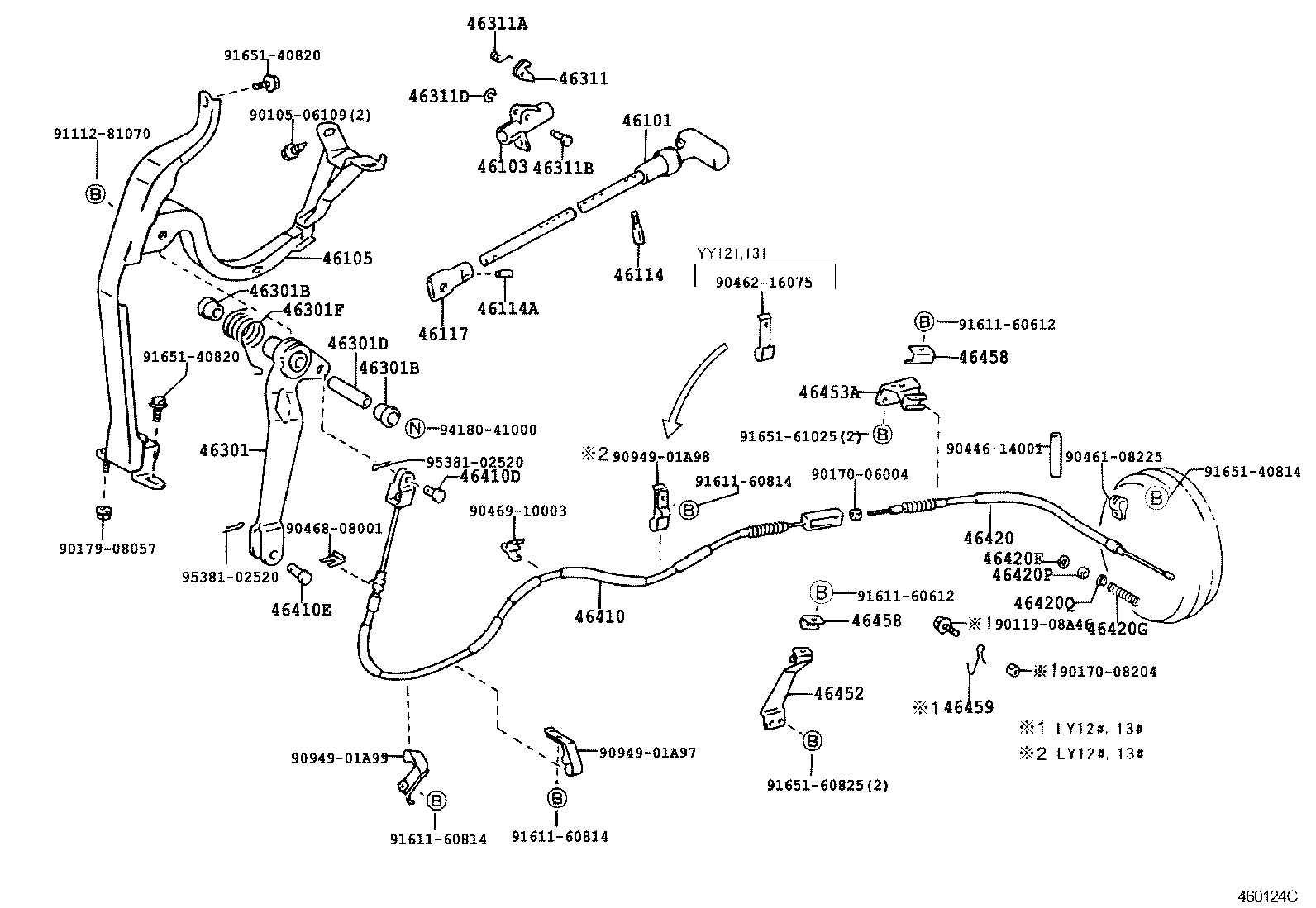

ILLUST NO. 1 OF 2(9610- )LY12#,13#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-36200 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36140 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-25040 |
LY12#,13#,YY121,131 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 46114A - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-25040 |
LY12#,13#,YY121,131 |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
LY162..ST;YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY10#,11#,12#,13#,15#,161,202,21#,YY101,121,131 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 90387-10004 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90949-03057 |
LY12#,13#,YY121,131 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
2 | ||
| 46311-26010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101 |
1 | ||
| 90508-08041 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26371 |
LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46410-25120 |
LY12#,13#,YY121,131 |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46410E - PIN, W/HOLE(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-08010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-25270 |
LY12#,13#,YY121,131..MTM |
1 | ||
| 46420F - SEAL, DUST(FOR PARKING BRAKE CABLE) | ||||
| 90303-10001 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420G - SPRING(FOR PARKING CABLE INNER WIRE SET) | ||||
| 90501-14021 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420P - SPACER, PARKING BRAKE | ||||
| 90560-08002 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46420Q - RING, E(FOR PARKING BRAKE CABLE) | ||||
| 96160-00700 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-25030 |
LY12#,13#,YY121,131 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-25030 |
LY12#,13#,YY121,131 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LY162..WT;LY12#,13#,YY121,131 |
2 | ||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LY162..WT;LY12#,13#,YY121,131 |
2 | ||
| 46458-28010 |
YY211..MTM;LY20#,21#,YY201;LY10#,11#,15#,16#,YY101..ST |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-25010 |
LY12#,13# |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90119-08A46 | ||||
| 90170-06004 | ||||
| 90170-08204 | ||||
| 90179-08057 | ||||
| 90446-14001 | ||||
| 90461-08225 | ||||
| 90462-16075 | ||||
| 90468-08001 | ||||
| 90469-10003 | ||||
| 90949-01A97 | ||||
| 90949-01A98 | ||||
| 90949-01A99 | ||||
| 91112-81070 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91651-60825 | ||||
| 91651-61025 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||
