YY131-TGMFS3 (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )3Y..YY101,121,131

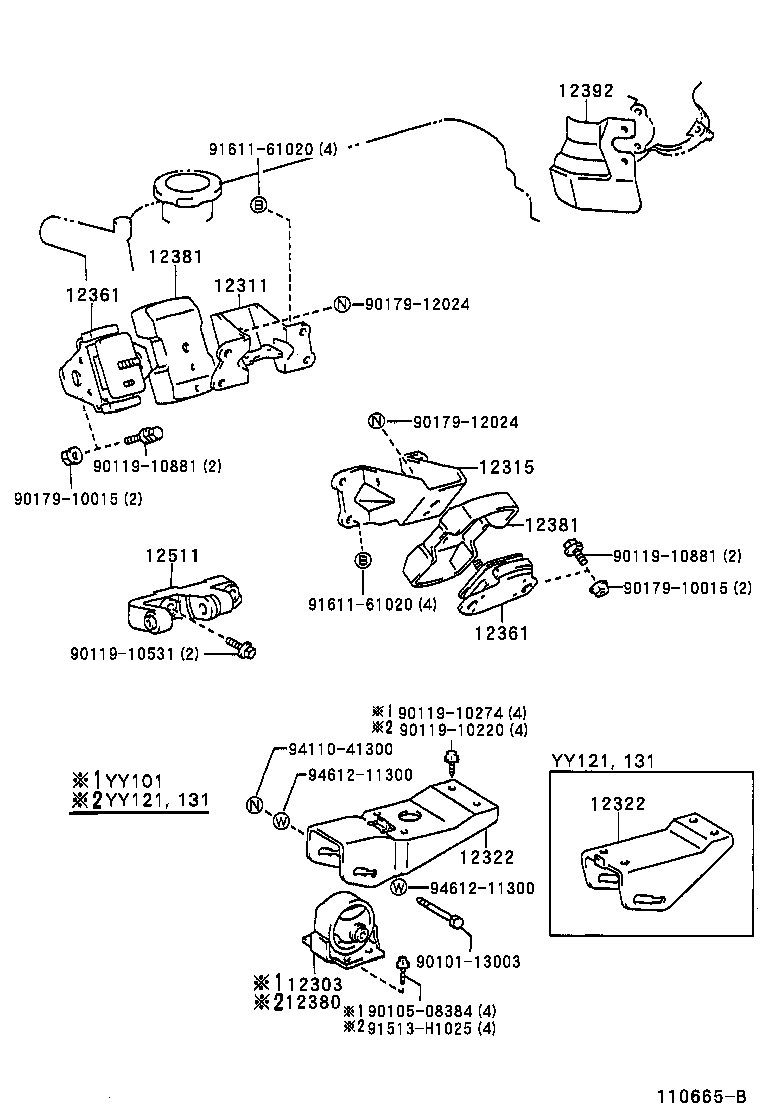

Click highlighted areas on diagram

diagram 12303 12311 12315 12322 12322 12361 12361 12380 12381 12381 12392 12511 9010113003 9010508384 9011910220 9011910274 9011910531 9011910881 9011910881 9017910015 9017910015 9017912024 9017912024 91513H1025 9161161020 9161161020 9411041300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

3Y#..YY101,121,131,201,211

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

3Y#..YY101,121,131,201,211

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54100

3Y..YY121,131

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54100

3Y..YY121,131

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-73060

3Y..YY121,131

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-73060

3Y..YY121,131

 2
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-54010

3Y..YY121,131

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73050

3Y..YY121,131

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73050

3Y..YY121,131

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

3Y#..YY101,121,131,201,211

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

3Y#..YY101,121,131,201,211

 1
Common parts
90101-13003
90105-08384
90119-10220
90119-10274
90119-10531
90119-10881
90179-10015
90179-12024
91513-H1025
91611-61020
94110-41300
94612-11300
