YY131-PGMES3 (1996)
Toyota Dyna 150/Toyoace G15

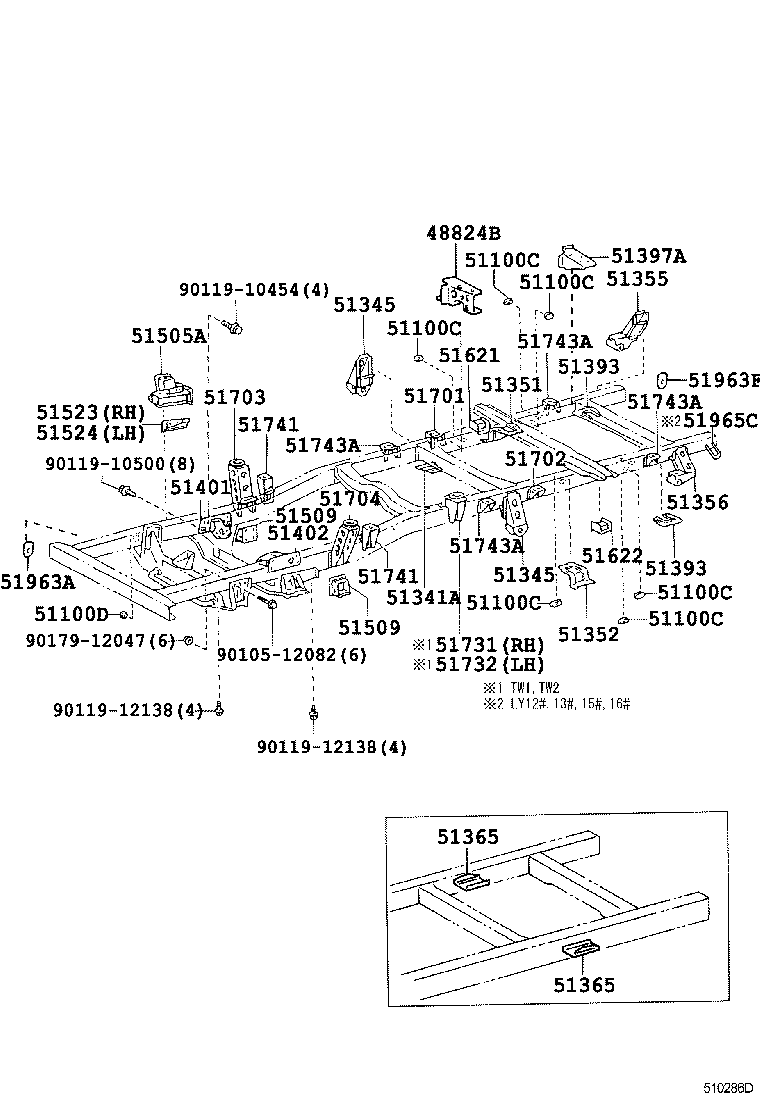

ILLUST NO. 2 OF 2(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48824B - BRACKET, STABILIZER | ||||
| 48824-26060 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48824-26061 |
LY122,132,162,YY121,131..WT |
2 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
6 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01420 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 51341A - GUSSET, CROSSMEMBER, NO.4 LOWER | ||||
| 51342-26020 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26030 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 51345 - BRACKET, REAR SPRING, FRONT | ||||
| 51345-26030 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 51365-26020 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 51365-26020 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER | ||||
| 51393-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-25160 |
LY16#,YY121,131..CBR,LPG |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-25060 |
LY16#,YY121,131..CBR,LPG |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-26021 |
LY12#,13#,15#,16#,YY121,131 右側 |
1 | ||
| 51506-26020 |
LY12#,13#,15#,16#,YY121,131 左側 |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-26010 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-26010 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 51523 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, RH | ||||
| 51523-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 51524 - REINFORCEMENT, UPPER CONTROL ARM SUPPORT, LH | ||||
| 51524-26030 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51711-26080 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51711-26080 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-26012 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51703-26012 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 51731 - BRACKET, CAB REAR MOUNTING, RH | ||||
| 51705-26043 |
LY10#,11#,13#,15#,16#,YY101,131..TW1,TW2 |
1 | ||
| 51732 - BRACKET, CAB REAR MOUNTING, LH | ||||
| 51705-26043 |
LY10#,11#,13#,15#,16#,YY101,131..TW1,TW2 |
1 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
4 | ||
| 51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH | ||||
| 51743-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
4 | ||
| Common parts | ||||
| 90105-12082 | ||||
| 90119-10454 | ||||
| 90119-10500 | ||||
| 90119-12138 | ||||
| 90179-12047 | ||||

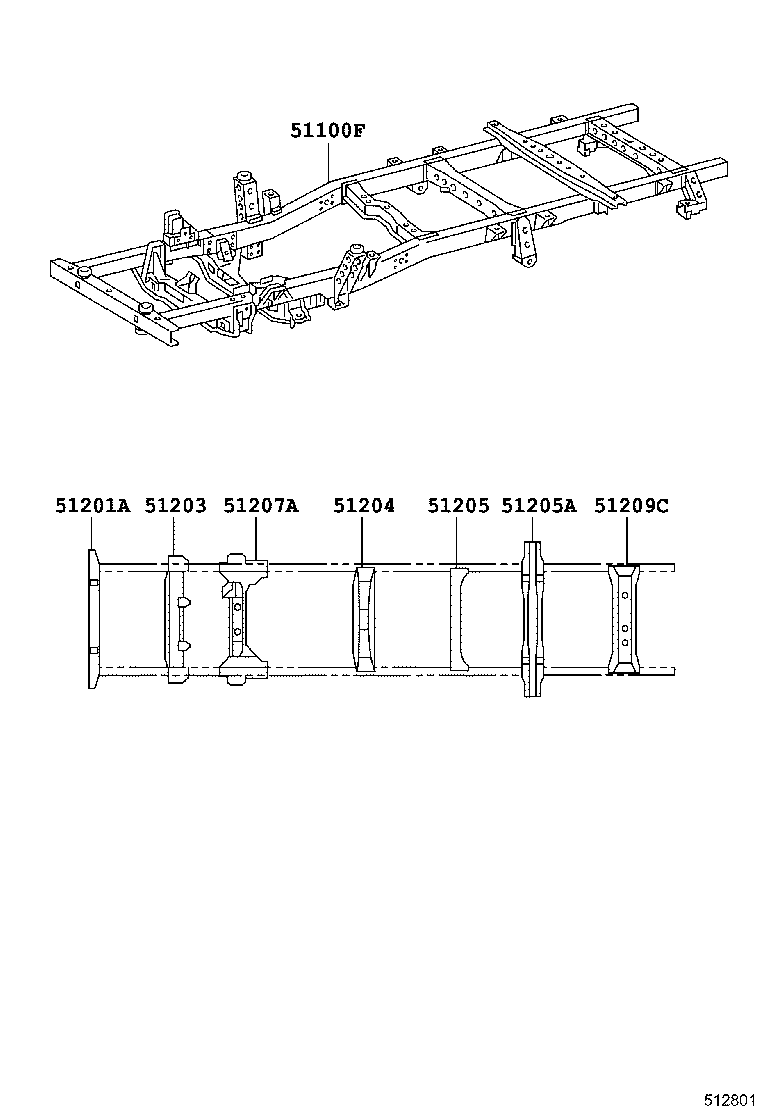

ILLUST NO. 1 OF 2(9610- )LY12#,13#,15#,16#,YY121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51003-25130 |
YY131..WT..125 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-25100 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-26050 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-25120 |
LY12#,13#,YY121,131 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-26031 |
LY162..ST;LY10#,11#,12#,13#,15#,161,YY101,121,131 |
1 | ||
| 51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT | ||||
| 51207-26010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-26030 |
LY162..ST;LY10#,11#,12#,13#,15#,161,YY101,121,131 |
1 | ||
