YY131-PGMES (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

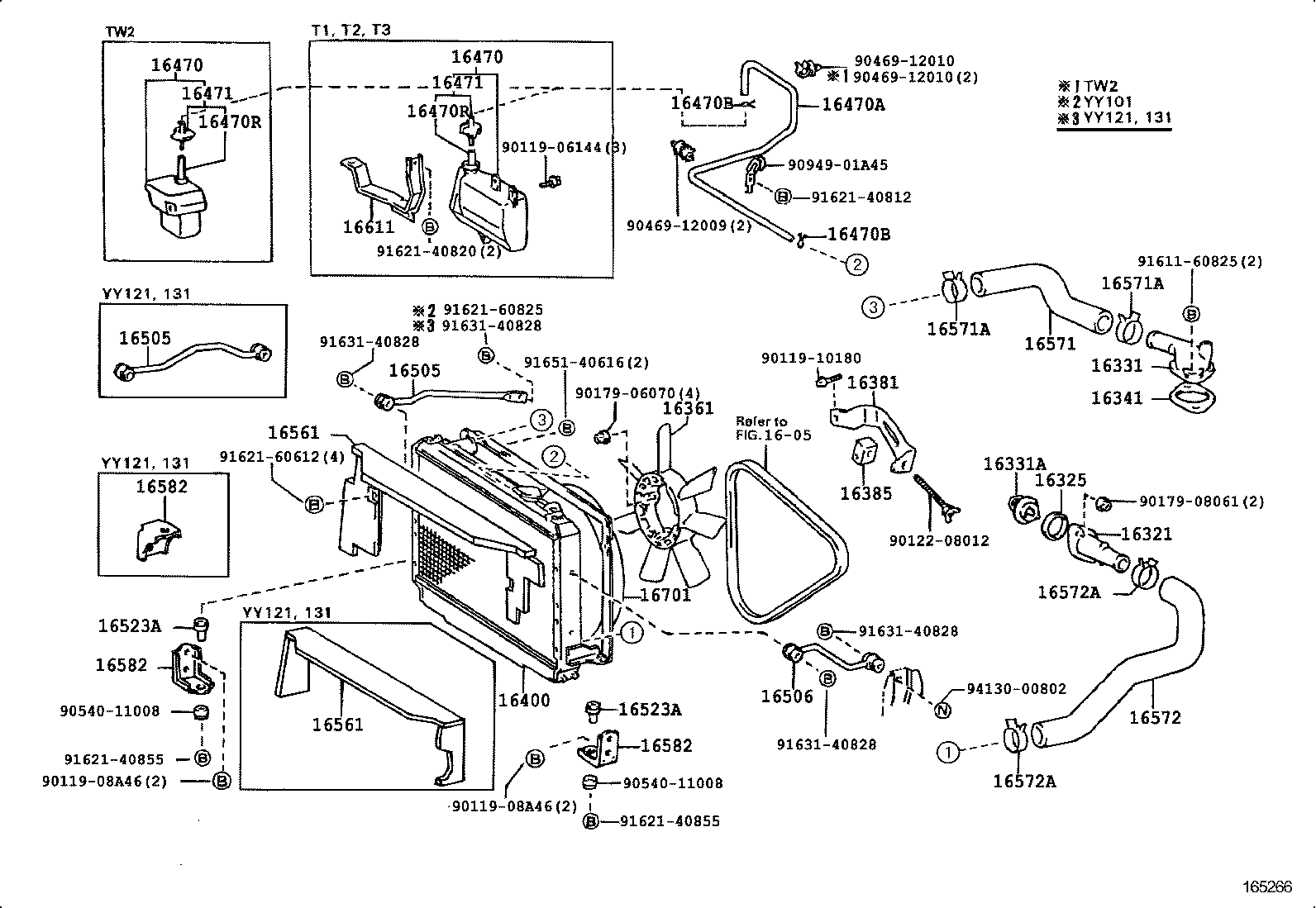

ILLUST NO. 1 OF 2(9610- )3Y..YY101,121,131

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16470 16470 16470A 16470B 16470B 16470R 16470R 16471 16471 16505 16505 16506 16523A 16523A 16561 16561 16571 16571A 16571A 16572 16572A 16572A 16582 16582 16582 16611 16701 9011906144 9011908A46 9011908A46 9011910180 9012208012 9017906070 9017908061 9046912009 9046912010 9046912010 9054011008 9054011008 9094901A45 9161160825 9162140812 9162140820 9162140855 9162140855 9162160612 9162160825 9163140828 9163140828 9163140828 9163140828 9165140616 9413000802
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

3Y#..YY101,121,131,201,211

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011

3Y#..YY101,121,131,201,211

 1
16331 - OUTLET, WATER
16331-71010

3Y#..YY101,121,131,201,211

 1
16331A - THERMOSTAT
90916-03046

3Y#..YY101,121,131,201,211

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71011

3Y#..YY101,121,131,201,211

 1
16341-73010

3Y#..YY101,121,131,201,211

 1
16361 - FAN
16361-38010

3Y#..YY101,121,131,201,211

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73011

3Y#..YY101,121,131,201,211

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

3Y#..YY101,121,131,201,211

 1
16400 - RADIATOR ASSY
16400-73540

3Y..YY121,131

 1
16400-73541

3Y..YY121,131

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58080

3Y..YY101,131,201,211..TW2

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-58080

3Y..YY101,131,201,211..TW2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16567-54130

3Y..YY101,131,201,211..TW2

長さ=1550

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3Y#..YY101,121,131,201,211

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3Y#..YY101,121,131,201,211

 2
16505 - SUPPORT SUB-ASSY, RADIATOR, RH
16505-54030

3Y..YY121,131

 1
16505 - SUPPORT SUB-ASSY, RADIATOR, RH
16505-54030

3Y..YY121,131

 1
16506 - SUPPORT SUB-ASSY, RADIATOR, LH
16506-54010

3Y..YY101,121,131

 1
16523A - CUSHION, RADIATOR SUPPORT
53210-36010

3Y..YY101,121,131

 2
16523A - CUSHION, RADIATOR SUPPORT
53210-36010

3Y..YY101,121,131

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-73020

3Y..YY121,131

 1
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-73020

3Y..YY121,131

 1
16571 - HOSE, RADIATOR, INLET
16571-73120

3Y..YY101,121,131

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3Y#..YY101,121,131,201,211

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3Y#..YY101,121,131,201,211

 2
16572 - HOSE, RADIATOR, OUTLET
16572-73130

3Y..YY121,131

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

3Y#..YY101,121,131,201,211

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37002

3Y#..YY101,121,131,201,211

 2
16582 - BRACKET, RADIATOR, NO.1
16582-54040

3Y..YY121,131

 2
16582 - BRACKET, RADIATOR, NO.1
16582-54040

3Y..YY121,131

 2
16582 - BRACKET, RADIATOR, NO.1
16582-54040

3Y..YY121,131

 2
16701 - SHROUD SUB-ASSY, FAN
16711-73161

3Y..YY121,131

 1
16711-73160

3Y..YY121,131

 1
Common parts
90119-06144
90119-08A46
90119-10180
90122-08012
90179-06070
90179-08061
90469-12009
90469-12010
90540-11008
90949-01A45
91611-60825
91621-40812
91621-40820
91621-40855
91621-60612
91621-60825
91631-40828
91651-40616
94130-00802
Linked diagrams
1605
