YY121-TLMES (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )3Y..YY101,121,131

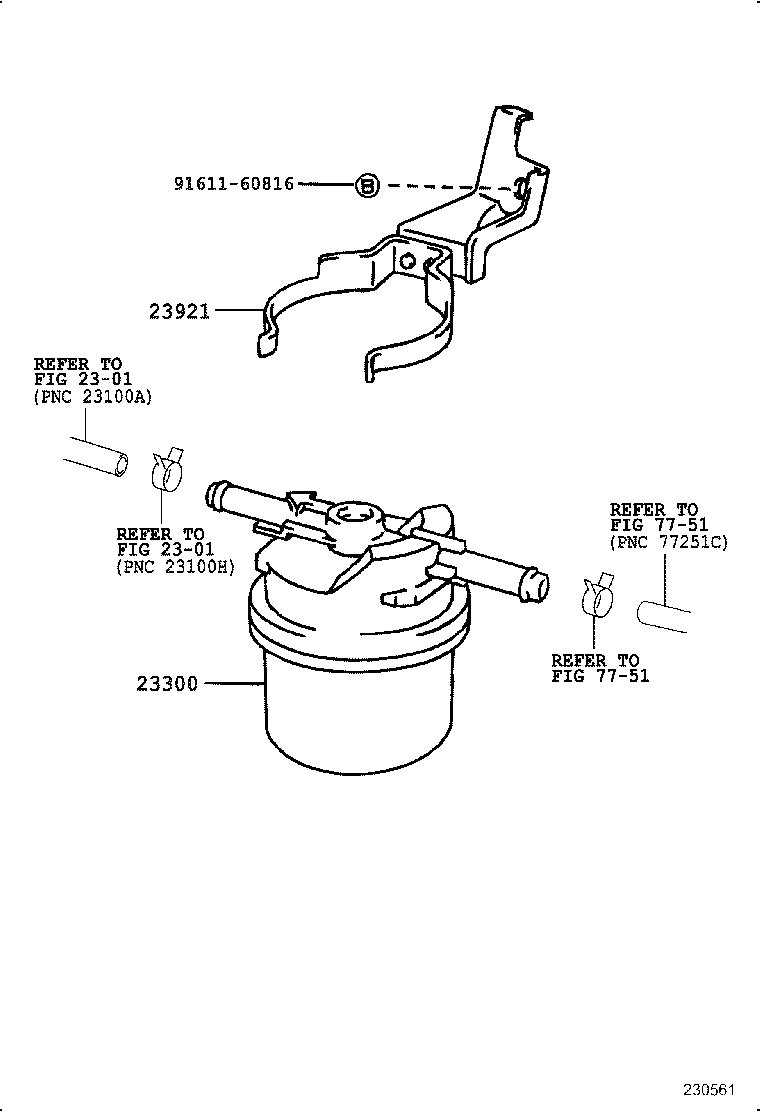

Click highlighted areas on diagram

diagram 2301 2301 23300 23921 7751 7751 9161160816
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-25020

3Y..YY101,121,131,201,211

 1
23921 - SUPPORT, FUEL FILTER
90929-01123

3Y..YY101,121,131

 1
Common parts
91611-60816
Linked diagrams
2301
7751
