YY101-TSMDS (1996)
Toyota Dyna 150/Toyoace G15
(9610- )3Y..YY101,121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3Y#..YY101,121,131,201,211 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-09026 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06093 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54260 |
3Y#..YY101,121,131,201,211 |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
3Y#..YY101,121,131,201,211 |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54090 |
3Y..YY101 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54070 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-73250 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-54062 |
3Y..YY101 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17886-73040 |
3Y..YY101,121,131 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-73010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
3Y..YY101,121,131,201,211 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-54010 |
3Y..YY101,121,131,201,211 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3Y#..YY101,121,131,201,211 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-71080 |
3Y..YY101,201,211 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3Y..YY101,121,131,201,211 CONNECTOR SIDE |
1 | ||
| 96111-10750 |
3Y..YY101,121,131,201,211 CARBURETOR SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3Y..YY101,121,131,201,211 CONNECTOR SIDE |
1 | ||
| 96111-10750 |
3Y..YY101,121,131,201,211 CARBURETOR SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3Y#..YY101,121,131,201,211 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3YP..YY211;3Y..YY101,121,131 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3YP..YY211;3Y..YY101,121,131 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-73020 |
3Y..YY101,121,131 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10690 |
3Y#..YY101,121,131,201,211 INLET SIDE |
1 | ||
| 96111-10750 |
3Y#..YY101,121,131,201,211 AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10690 |
3Y#..YY101,121,131,201,211 INLET SIDE |
1 | ||
| 96111-10750 |
3Y#..YY101,121,131,201,211 AIR CLEANER SIDE |
1 | ||
| 17885A - HOSE, AIR CLEANER, NO.5 | ||||
| 17881-13121 |
3Y..YY101,121,131,201,211 |
1 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-47036 |
3Y..YY101,121,131,201,211 |
2 | ||
| 17885C - CLAMP(FOR AIR CLEANER HOSE, NO.5) | ||||
| 90460-47036 |
3Y..YY101,121,131,201,211 |
2 | ||
| 17886 - HOSE, AIR CLEANER, NO.6 | ||||
| 17881-25013 |
3Y..YY101,121,131 |
1 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90460-47036 |
3Y..YY101,121,131,201,211 |
2 | ||
| 17886A - CLAMP(FOR AIR CLEANER HOSE, NO.6) | ||||
| 90460-47036 |
3Y..YY101,121,131,201,211 |
2 | ||
| 17895 - SHROUD, HOT AIR | ||||
| 17895-71030 |
3Y..YY101,121,131 |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-25090 |
YY101,121,131 |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53709-25030 |
LY10#,11#,12#,13#,15#,16# |
1 | ||
| 53709-25030 |
YY101,121,131 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06012 | ||||
| 90467-0707222 | ||||
| 90480-22006 | ||||
| 90560-08018 | ||||
| 91621-60814 | ||||
| 91621-60820 | ||||
| 91632-60828 | ||||
| 91651-60612 | ||||
| 91651-60820 | ||||

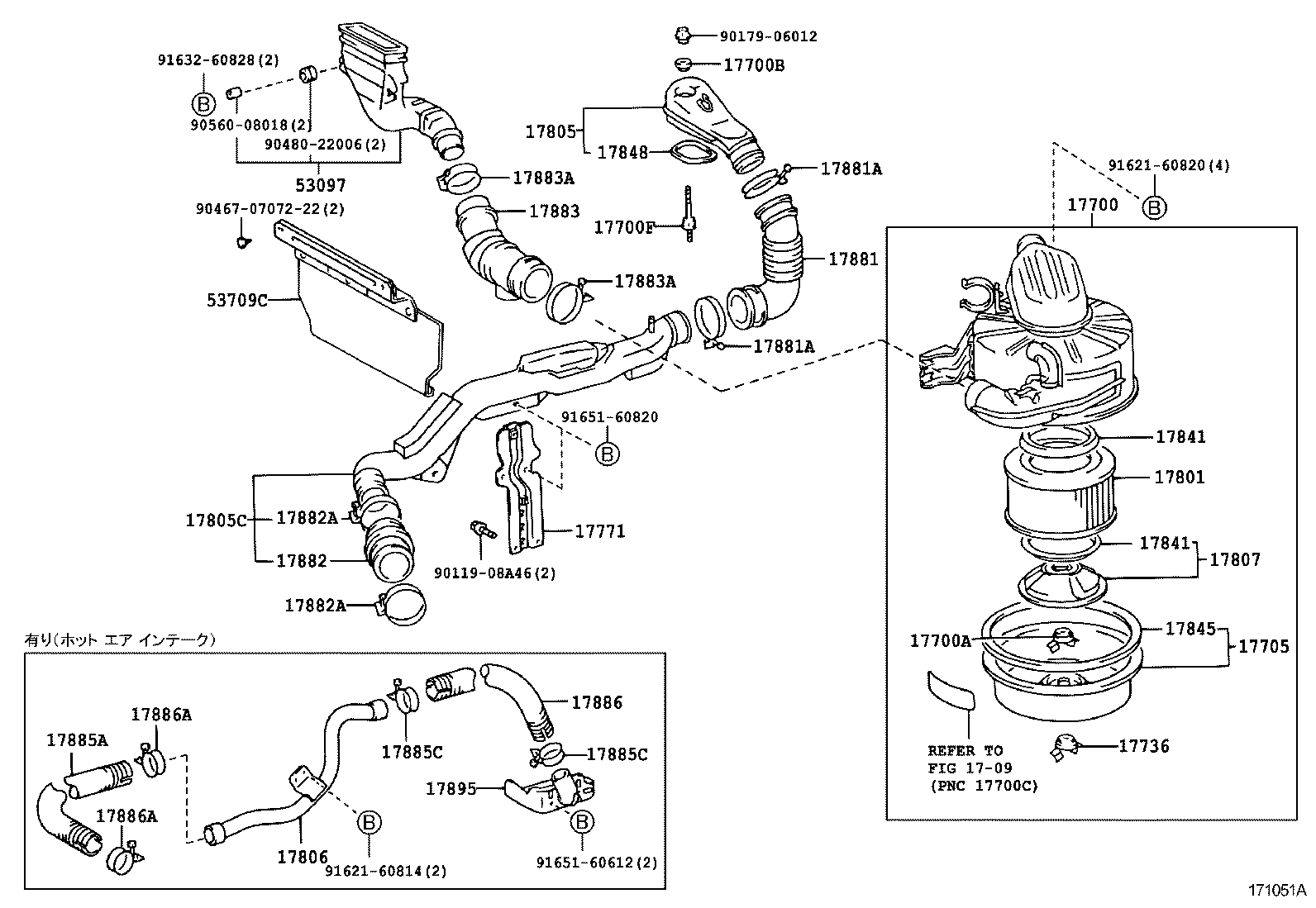

| Linked diagrams | ||||
| 1709 | ||||
