YY101-TBMDS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - Jul 2001
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )3Y

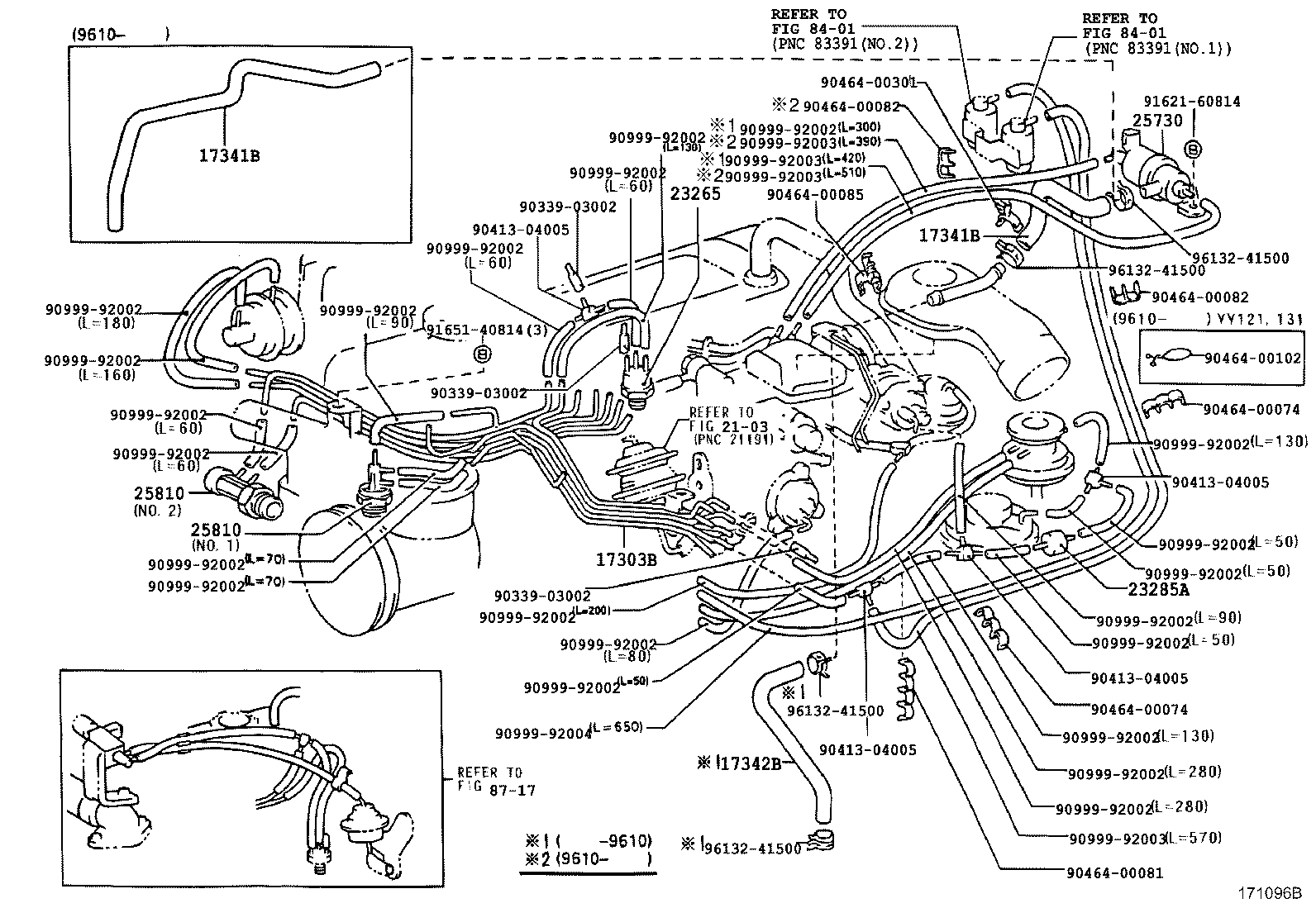

Click highlighted areas on diagram

diagram 17303B 17341B 17341B 17342B 2103 23265 23285A 25730 25810 25810 8401 8401 8717 9033903002 9033903002 9033903002 9041304005 9041304005 9041304005 9041304005 9046400074 9046400074 9046400081 9046400082 9046400082 9046400085 9046400102 9046400301 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992004 9162160814 9165140814 9613241500 9613241500 9613241500 9613241500
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y..YY101,121,131,201,211

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-73130

3Y..YY101,121,131,201,211

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-73130

3Y..YY101,121,131,201,211

 1
23265 - FILTER, GAS, NO.1
90917-11027

3Y..YY101,121,131,201,211

 1
23285A - VALVE, CHECK, NO.1
90917-10049

3Y..YY101,121,131,201,211

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-73030

3Y..YY101,121,131,201,211

 1
25810 - VALVE ASSY, BIMETAL
25820-37010

3Y..YY101,121,131,201,211

NO.2

 1
25810-27010

3Y..YY101,121,131,201,211

NO.1

 1
25810 - VALVE ASSY, BIMETAL
25820-37010

3Y..YY101,121,131,201,211

NO.2

 1
25810-27010

3Y..YY101,121,131,201,211

NO.1

 1
Common parts
90339-03002
90413-04005
90464-00074
90464-00081
90464-00082
90464-00085
90464-00102
90464-00301
90999-92002
90999-92003
90999-92004
91621-60814
91651-40814
96132-41500
Linked diagrams
2103
8401
8717

(9505-9905)3Y

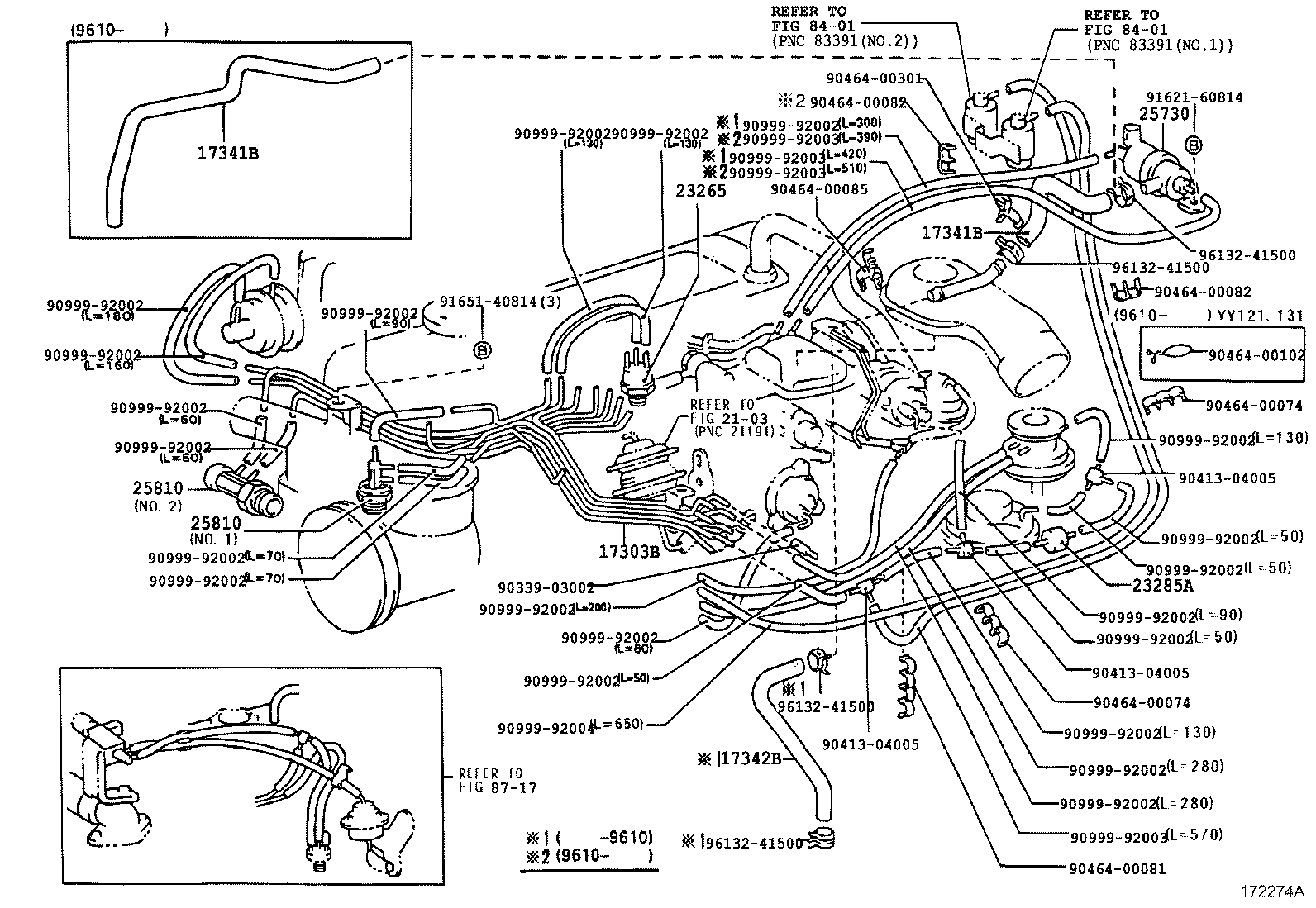

Click highlighted areas on diagram

diagram 17303B 17341B 17341B 17342B 2103 23265 23285A 25730 25810 25810 8401 8401 8717 9033903002 9041304005 9041304005 9041304005 9046400074 9046400074 9046400081 9046400082 9046400082 9046400085 9046400102 9046400301 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9099992003 9099992004 9162160814 9165140814 9613241500 9613241500 9613241500 9613241500
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-71011

3Y..YY101,121,131,201,211

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-73130

3Y..YY101,121,131,201,211

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-73130

3Y..YY101,121,131,201,211

 1
23265 - FILTER, GAS, NO.1
90917-11027

3Y..YY101,121,131,201,211

 1
23285A - VALVE, CHECK, NO.1
90917-10049

3Y..YY101,121,131,201,211

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-73030

3Y..YY101,121,131,201,211

 1
25810 - VALVE ASSY, BIMETAL
25820-37010

3Y..YY101,121,131,201,211

NO.2

 1
25810-27010

3Y..YY101,121,131,201,211

NO.1

 1
25810 - VALVE ASSY, BIMETAL
25820-37010

3Y..YY101,121,131,201,211

NO.2

 1
25810-27010

3Y..YY101,121,131,201,211

NO.1

 1
Common parts
90339-03002
90413-04005
90464-00074
90464-00081
90464-00082
90464-00085
90464-00102
90464-00301
90999-92002
90999-92003
90999-92004
91621-60814
91651-40814
96132-41500
Linked diagrams
2103
8401
8717
