LY212-TQPGS (1999)
Toyota Dyna 150/Toyoace G15
Production
May 1999
-
Jul 2001
Engine
5L
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9905- )LY132,212..ATM

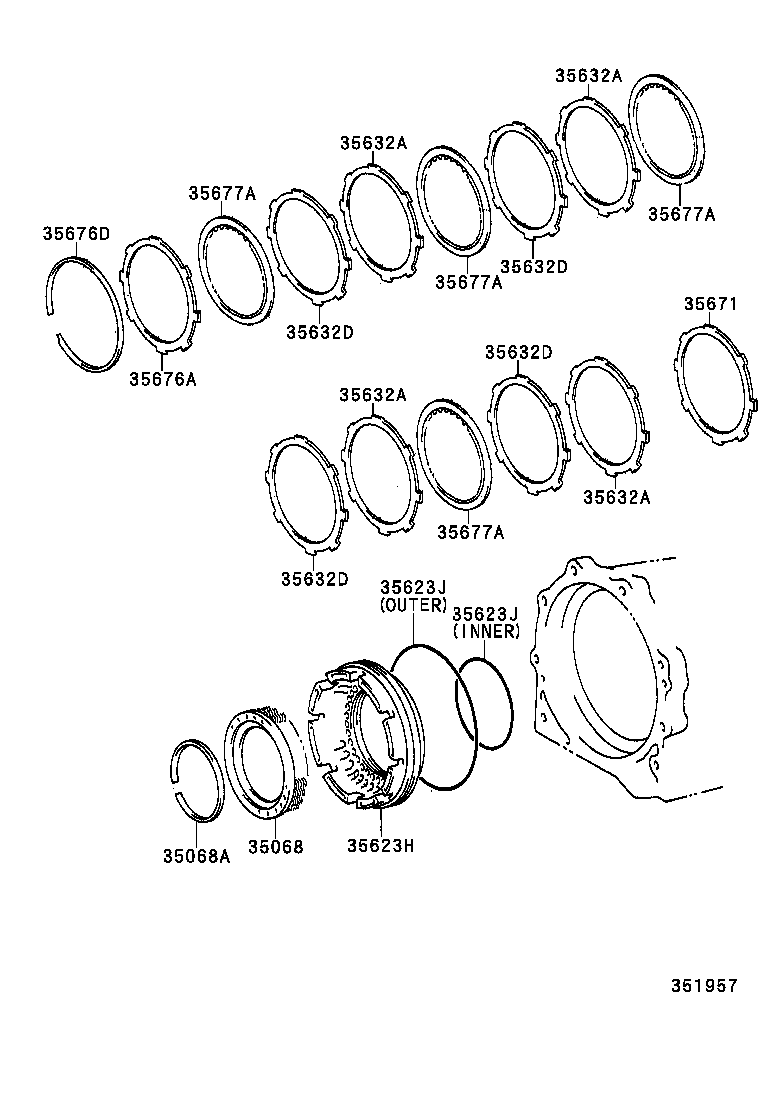

Click highlighted areas on diagram
A44DE,A443E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-36010 |
LY13#,21#..ATM |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-87001 |
LY13#,21#..ATM |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-25010 |
LY132,212..ATM |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94002 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99030 |
LY13#,21#..ATM 外側 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94002 |
LY13#,21#..ATM 内側 |
1 | ||
| 90301-99030 |
LY13#,21#..ATM 外側 |
1 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60030 |
LY13#,21#..ATM |
4 | ||
| 35632-60031 |
LY132,212..ATM |
4 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60030 |
LY13#,21#..ATM |
4 | ||
| 35632-60031 |
LY132,212..ATM |
4 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60030 |
LY13#,21#..ATM |
4 | ||
| 35632-60031 |
LY132,212..ATM |
4 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60030 |
LY13#,21#..ATM |
4 | ||
| 35632-60031 |
LY132,212..ATM |
4 | ||
| 35632D - PLATE, BRAKE NO.2(FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60070 |
LY132,212..ATM |
4 | ||
| 35632D - PLATE, BRAKE NO.2(FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60070 |
LY132,212..ATM |
4 | ||
| 35632D - PLATE, BRAKE NO.2(FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60070 |
LY132,212..ATM |
4 | ||
| 35632D - PLATE, BRAKE NO.2(FOR 1ST & REVERSE BRAKE) | ||||
| 35632-60070 |
LY132,212..ATM |
4 | ||
| 35671 - PLATE, BRAKE CUSHION | ||||
| 35671-36010 |
LY13#,21#..ATM |
1 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-60070 |
LY13#,21#..ATM 厚さ=7.45 |
1 | ||
| 35676-60050 |
LY13#,21#..ATM 厚さ=6.65 |
1 | ||
| 35676-60060 |
LY13#,21#..ATM 厚さ=7.05 |
1 | ||
| 35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE) | ||||
| 90521-99109 |
LY13#,21#..ATM |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-60030 |
LY13#,21#..ATM |
4 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-60030 |
LY13#,21#..ATM |
4 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-60030 |
LY13#,21#..ATM |
4 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-60030 |
LY13#,21#..ATM |
4 | ||
